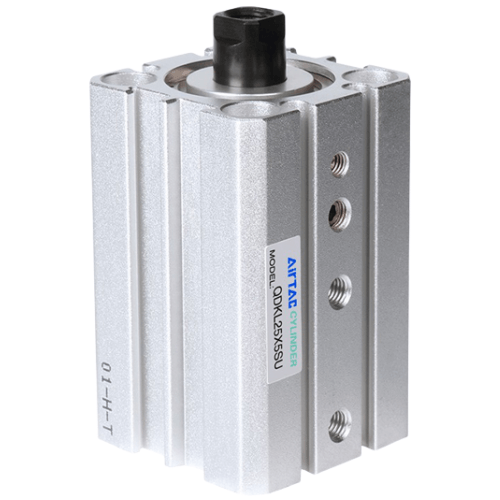

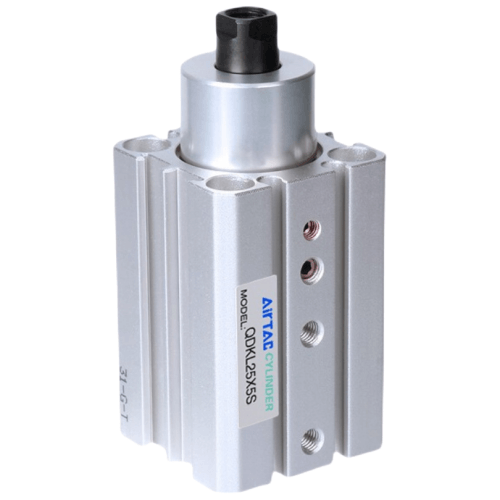

Airtac QDKL Pivot Clamp Cylinder QDKL40X5-S-U

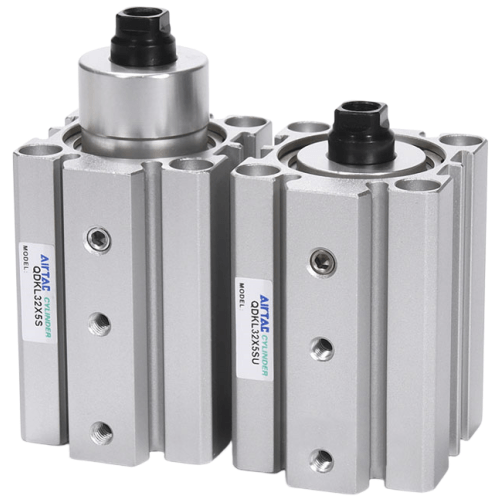

2、Versatile mounting configurations with optional front cover variants: boss-type mounting or flush-face mounting designs;
3、Dual-pin rotational guide groove mechanism ensures smooth operation and high repeatability (±0.5°);
4、Integrated sensor mounting grooves along cylinder periphery enable direct sensor installation without auxiliary accessories.
Category: Rotary Clamping Cylinders | Brand: AirTAC | Series: QDKL
AirTAC QDKL40X5-S-U Plane Rotary Clamping Cylinder Specifications
- Model: QDKL40X5-S-U
- Type: Double-acting plane rotary clamp cylinder
- Bore size: 40mm
- Stroke: 5mm
- Rotation angle: 180° (±1° repeat accuracy)
- Operating pressure: 0.1–0.8 MPa
- Mounting type: Standard U-shaped bracket
- Port size: G1/8 (ISO standard thread)
- Piston material: Aluminum alloy (hard anodized)
- Rod material: Chrome-plated steel
- Seal material: NBR (nitrile rubber)
- Temperature range: -20℃ to 80℃
- Protection rating: IP54
- Weight: 2.5kg ±3%
- Dimensions (L×W×H): 165mm × 78mm × 65mm (including bracket)
- Torque output: 8.5 N·m at 0.6 MPa
- Response time: ≤0.3s (0.5 MPa air supply)
A precision rotary clamping mechanism combining linear thrust and angular displacement. Features anti-rotation guide pins and wear-resistant bushings for smooth 180° indexing. The U-shaped mounting bracket allows direct integration with jig plates. Optimized for high-cycle applications with built-in cushioning adjustment screws.
- CNC machine tool workpiece positioning
- Automated welding fixture clamping
- PCB assembly line flipping mechanisms
- Robotic end-effector tool changers
- Precision mold alignment systems
Installation note:
Maintain 0.5mm minimum clearance between clamp arm and workpiece surface.
Lubricate pivot points with ISO VG32 hydraulic oil monthly. Avoid side loads exceeding 200N.
| Property | Property Value |
|---|---|
| sku | QDKL40X5-S-U |
| Front Cover Type | Flat Type |
| Clamping Stroke | <5mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 to 70°C Rotation Angle: 90° |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | <40mm> |
| Direction Code | LH (Left-Hand) |
