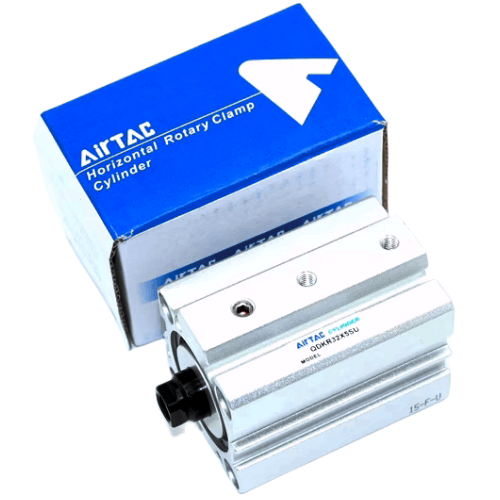

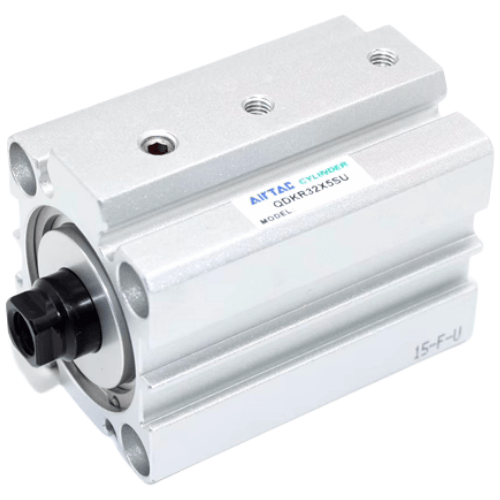

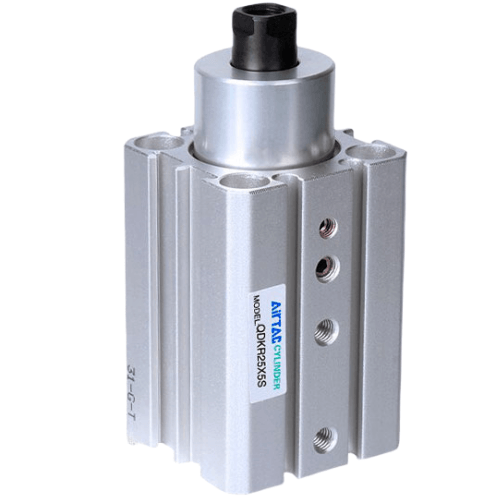

Airtac QDKR Pivoting Clamping Cylinder QDKR20X5-S
1. Achieves rotational motion at identical elevation level with zero rotational stroke, offering enhanced spatial efficiency compared to QCK series in confined environments;
2. Versatile mounting configurations with optional front cover boss-type or flat-type designs;
3. Dual-pin rotational guide groove mechanism ensures smooth operation and exceptional repeat positioning accuracy (±0.5°);
4. Integrated sensor mounting grooves on cylinder periphery enable direct installation without auxiliary accessories.
Category: Rotary Clamping Cylinders | Brand: AirTAC | Series: QDKR
AirTAC QDKR20X5-S Rotary Clamping Cylinder Specifications
- Model: QDKR20X5-S
- Type: Double-acting rotary clamp cylinder
- Bore size: Ø20mm
- Stroke: 5mm
- Clamping torque: 0.8-1.2 N·m (adjustable)
- Operating pressure: 0.1-0.7 MPa
- Rotation angle: 90°±5°
- Port size: M5×0.8 (dual ports)
- Piston material: Aluminum alloy with hard anodizing
- Rod material: Stainless steel SUS304
- Seal type: NBR wear-resistant seals
- Temperature range: -10℃ to 70℃
- Weight: 0.68 kg (excluding accessories)
- Dimensions: 112mm(L) × 42mm(W) × 42mm(H)
- Mounting: Standard M5 threaded holes (4 places)
- Protection rating: IP54
Precision rotary clamping cylinder featuring torque adjustment and mechanical self-locking. The dual-cam mechanism ensures zero backlash during rotation, with hardened guide surfaces for >500km service life. Includes shock-absorbing pads for noise reduction (≤65dB). Requires ISO 8573-1:2010 Class 3 lubricated air.
- CNC machine tool fixture positioning
- Automated welding jig rotation systems
- PCB assembly press mechanisms
- Robotic arm end-effector tooling
- Medical device assembly stations
Installation protocol:
Mount horizontally with arrow alignment to workpiece. Perform torque calibration
after 50 operation cycles. Lubricate every 200,000 cycles using ISO VG32 turbine oil.
| Property | Property Value |
|---|---|
| sku | QDKR20X5-S |
| Front Cover Type | Panel Mount Type |
| Clamping Stroke | <5mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 to 70°C Rotation Angle: 90° |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Bore Diameter | <20mm> |
| Direction Code | Right-hand |
