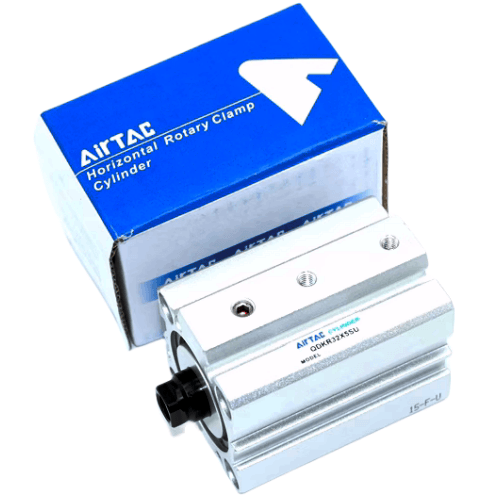

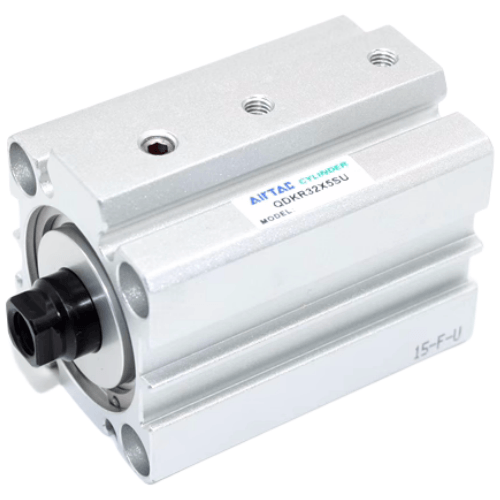

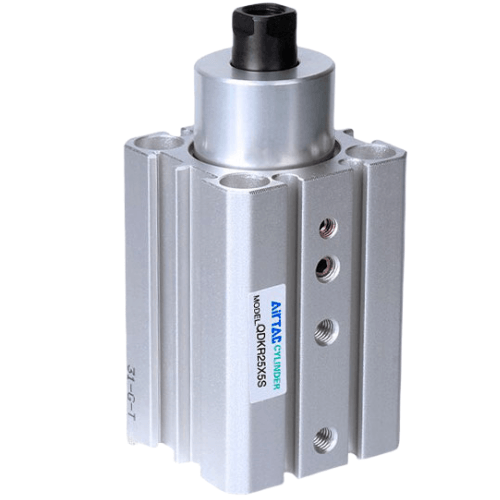

Airtac QDKR Pivoting Clamping Cylinder QDKR25X5-S
1. Achieves rotational motion at identical elevation level with zero rotational stroke, offering enhanced spatial efficiency compared to QCK series in confined environments;
2. Versatile mounting configurations with optional front cover boss-type or flat-type designs;
3. Dual-pin rotational guide groove mechanism ensures smooth operation and exceptional repeat positioning accuracy (±0.5°);
4. Integrated sensor mounting grooves on cylinder periphery enable direct installation without auxiliary accessories.
Category: Rotary Clamping Cylinders | Brand: AirTAC | Series: QDKR
AirTAC QDKR25X5-S Rotary Clamp Cylinder Specifications
- Model: QDKR25X5-S
- Type: Double-acting rotary clamp cylinder
- Bore size: Ø25mm
- Stroke: 5mm (adjustable)
- Rotation angle: 90°±5°
- Clamping torque: 3.5-4.2 N·m
- Operating pressure: 0.15-0.8 MPa
- Port size: M5×0.8 (dual ports)
- Temperature range: -10℃ to 70℃
- Cylinder material: Aluminum alloy (hard anodized)
- Piston rod material: Stainless steel (SUS304)
- Seal material: NBR/PU
- Weight: 1.8 kg ±3%
- Dimensions:
- Total length (extended): 126.5mm
- Body width: 50mm
- Clamp height: 25mm
- Mounting hole spacing: 40mm×40mm
- Protection rating: IP54 (standard)
- Lubrication: Pre-lubricated (Use ISO VG32 hydraulic oil if additional lubrication required)
High-precision rotary clamping cylinder featuring dual internal dampers for vibration absorption during rotation. The compact wedge-lock mechanism provides zero-backlash clamping force, with corrosion-resistant construction suitable for harsh environments. Includes magnetic piston for position sensing compatibility (sensor not included). Requires 5μm filtered air supply with 10-20% oil mist content.
- CNC machine tool workpiece fixturing
- Automated assembly line positioning
- Robotic welding jig systems
- Precision grinding machine clamping
- Semiconductor manufacturing stages
Installation guidelines:
Maintain parallel alignment within 0.2mm tolerance during mounting.
Allow minimum 3mm clearance around rotating components.
Perform 3-5 test cycles at 0.3MPa before full-pressure operation.
| Property | Property Value |
|---|---|
| sku | QDKR25X5-S |
| Front Cover Type | Panel Mount Type |
| Clamping Stroke | <5mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 to 70°C Rotation Angle: 90° |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Bore Diameter | <25 mm> |
| Direction Code | Right-hand |
