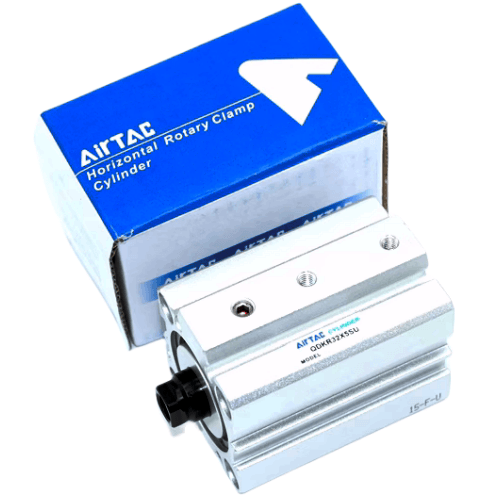

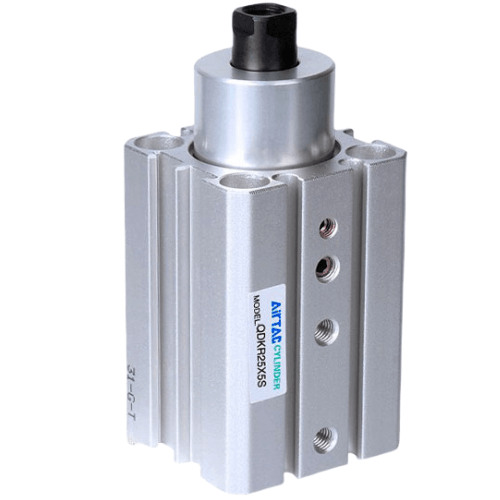

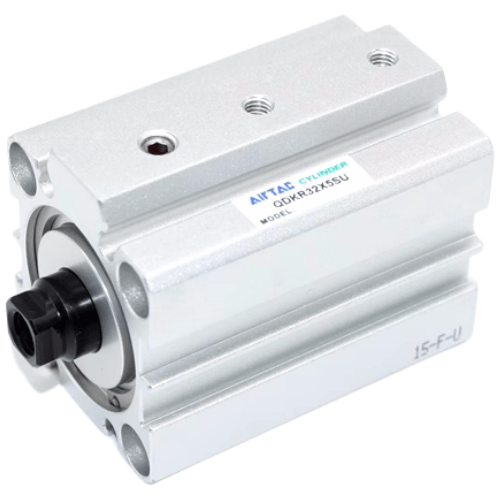

Airtac QDKR Pivoting Clamping Cylinder QDKR32X5-S
1. Achieves rotational motion at identical elevation level with zero rotational stroke, offering enhanced spatial efficiency compared to QCK series in confined environments;
2. Versatile mounting configurations with optional front cover boss-type or flat-type designs;
3. Dual-pin rotational guide groove mechanism ensures smooth operation and exceptional repeat positioning accuracy (±0.5°);
4. Integrated sensor mounting grooves on cylinder periphery enable direct installation without auxiliary accessories.
Category: Rotary Clamping Cylinders | Brand: AirTAC | Series: QDKR
AirTAC QDKR Series Rotary Clamp Cylinder QDKR32X5-S Specifications
- Model: QDKR32X5-S
- Type: Double-acting rotary clamp cylinder
- Bore size: Ø32mm
- Stroke: 5mm (adjustable)
- Operating pressure: 0.1–0.9 MPa
- Rotation angle: 90°±3°
- Clamping force: 490N @0.5MPa
- Piston speed: 50–500mm/s
- Port size: M5x0.8 (dual ports)
- Piston material: Aluminum alloy hard anodized
- Rod material: Stainless steel SUS304
- Seal type: NBR + PU hybrid seals
- Temperature range: -20℃ to 80℃
- Weight: 1.2kg ±3%
- Dimensions: 110mm(L) × 56mm(W) × 32mm(H)
- Mounting: Standard M6x1.0 threaded holes (4 places)
- Position detection: Optional magnetic switch groove (SM/SD series compatible)
Precision rotary clamping cylinder featuring dual-stage positioning with mechanical lock mechanism. The anti-vibration design maintains clamping force stability under 0.03mm repeatability. Integrated buffer adjustment prevents impact damage during rotation. Requires ISO 8573-1:2010 Class 3 compressed air.
- CNC machine tool fixture positioning
- Automotive welding jig clamping
- Electronics assembly press-fit operations
- Packaging line product orientation systems
- Robotic end-effector tool changing
Installation guidelines:
Apply Dow Corning Molykote 55M grease to rotating parts during maintenance.
Maximum lateral load capacity: 120N. For vertical mounting, install locking collar (sold separately).
Allow 15mm clearance for full rotation arc.
| Property | Property Value |
|---|---|
| sku | QDKR32X5-S |
| Front Cover Type | Panel Mount Type |
| Clamping Stroke | <5mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 to 70°C Rotation Angle: 90° |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Bore Diameter | <32 mm> |
| Direction Code | Right-hand |
