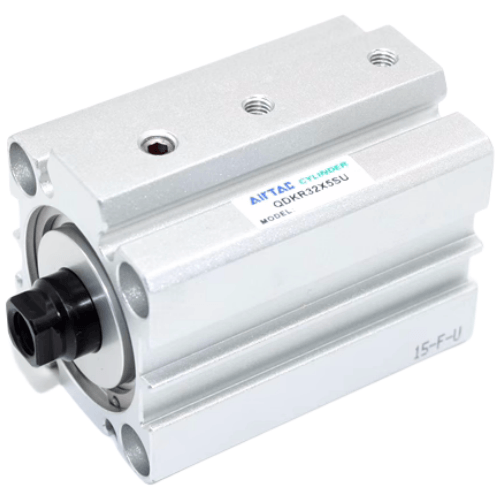

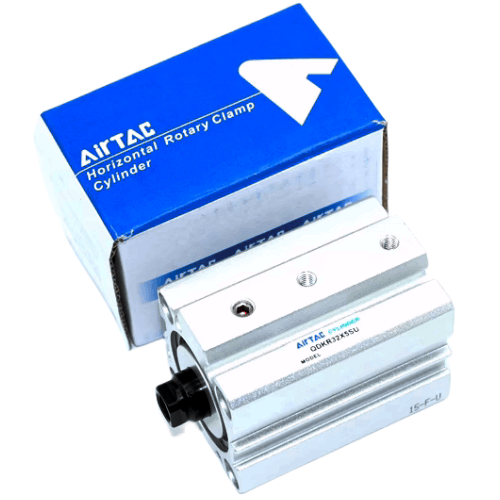

Airtac QDKR Pivoting Clamping Cylinder QDKR32X5-S-U
1. Achieves rotational motion at identical elevation level with zero rotational stroke, offering enhanced spatial efficiency compared to QCK series in confined environments;
2. Versatile mounting configurations with optional front cover boss-type or flat-type designs;
3. Dual-pin rotational guide groove mechanism ensures smooth operation and exceptional repeat positioning accuracy (±0.5°);
4. Integrated sensor mounting grooves on cylinder periphery enable direct installation without auxiliary accessories.
Category: Rotary Clamping Cylinders | Brand: AirTAC | Series: QDKR
AirTAC QDKR32X5-S-U Rotary Clamping Cylinder Specifications
- Model: QDKR32X5-S-U
- Type: Double-acting rotary clamp cylinder
- Bore size: 32mm
- Stroke: 5mm
- Rotation angle: 90° ±5°
- Operating pressure: 0.1–0.9 MPa
- Port size: G1/8 (ISO228/1 standard)
- Operating temperature: -10℃ to 80℃
- Cushioning: Adjustable pneumatic cushion
- Seal material: NBR + PU composite
- Mounting style: U-shaped bracket with M6 mounting holes
- Weight: 1.65kg ±3%
- Dimensions (L×W×H): 135mm (extended length) × 68mm (max width) × 68mm (height) * Excludes protruding ports and mounting hardware
- Rod end: M12×1.25 threaded with anti-rotation flats
- Protection rating: IP54 (standard), IP67 optional
Precision rotary clamping cylinder combining linear thrust with controlled 90° rotation, featuring wear-resistant chromium-plated rod and anodized aluminum body. The patented gear-rack mechanism delivers 8.5N·m torque at 0.6MPa, with integrated magnetic field for position sensing compatibility. Requires filtered air (5-50μm) with ISO VG32 lubrication recommended.
- CNC machine tool workpiece positioning
- Automated welding fixture clamping
- Robotic arm end-effector tool changing
- Conveyor sorting system diverters
- Medical device assembly rotary locks
Installation note:
Align rotation plane with workpiece axis within ±0.5° tolerance.
Use locknuts with 2.5N·m torque on mounting bolts. Allow 20mm
clearance behind rod end for full rotation.
| Property | Property Value |
|---|---|
| sku | QDKR32X5-S-U |
| Front Cover Type | Flat Type |
| Clamping Stroke | <5mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 to 70°C Rotation Angle: 90° |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Bore Diameter | <32 mm> |
| Direction Code | Right-hand |
