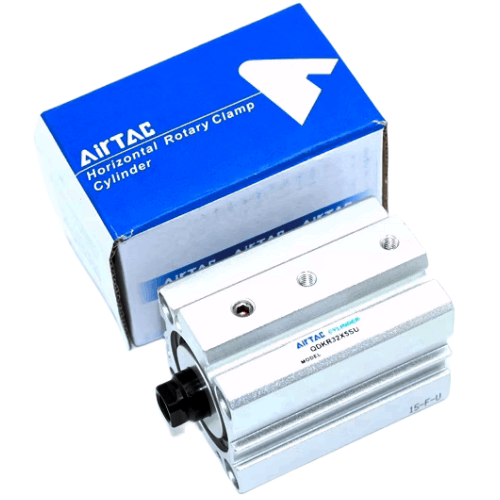

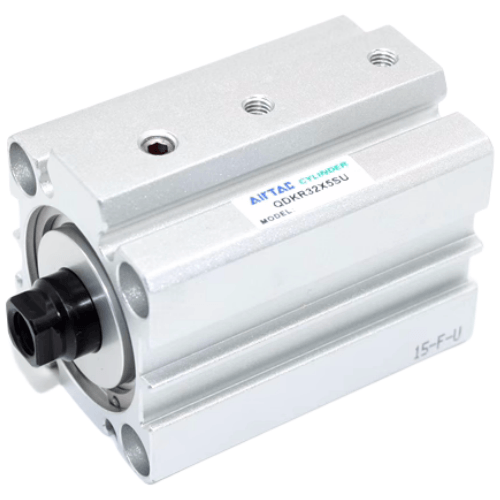

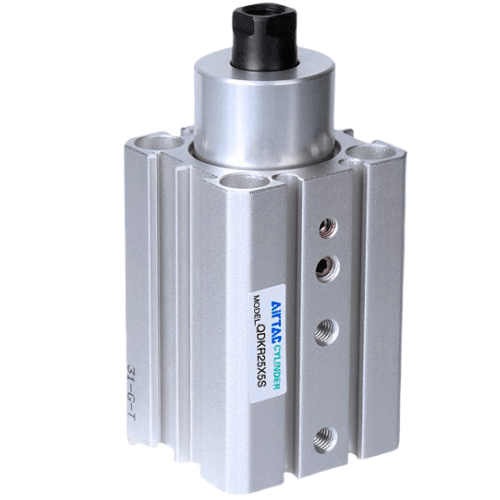

Airtac QDKR Pivoting Clamping Cylinder QDKR40X5-S
1. Achieves rotational motion at identical elevation level with zero rotational stroke, offering enhanced spatial efficiency compared to QCK series in confined environments;
2. Versatile mounting configurations with optional front cover boss-type or flat-type designs;
3. Dual-pin rotational guide groove mechanism ensures smooth operation and exceptional repeat positioning accuracy (±0.5°);
4. Integrated sensor mounting grooves on cylinder periphery enable direct installation without auxiliary accessories.
Category: Rotary Clamping Cylinders | Brand: AirTAC | Series: QDKR
AirTAC QDKR40X5-S Rotary Clamping Cylinder Specifications
- Model: QDKR40X5-S
- Type: Rotary clamping cylinder with plane rotation mechanism
- Bore size: 40mm
- Rotation angle: 90° ±5° (adjustable via stopper)
- Operating pressure: 0.2–0.8 MPa
- Torque output: 1.96 N·m @ 0.5 MPa
- Port size: 1/8 NPT (G1/8 optional)
- Piston material: Aluminum alloy with hard anodized finish
- Rod material: Stainless steel SUS304
- Seal type: NBR + PU combination seals
- Temperature range: -10℃ to 70℃
- Weight: 1.8 kg (including mounting accessories)
- Dimensions: 170mm(L) × 78mm(W) × 78mm(H) (retracted position)
- Stroke length: 5mm (linear motion before rotation)
- Rotation time: 0.5–1.2 sec (air pressure dependent)
- Cushioning: Built-in air cushion adjustment
- Mounting style: Standard side-mounting brackets
High-precision rotary clamping cylinder combining linear thrust and angular displacement. Features dual-action self-locking mechanism for secure positioning. The S-series variant includes shock-absorbing pads and enhanced dust resistance, optimized for high-cycle applications. Requires 5μm filtered compressed air with ISO VG32 lubricant.
- Automated fixture systems in CNC machining centers
- Workpiece positioning in robotic welding cells
- Pallet locking mechanisms for assembly lines
- 90° indexing in semiconductor handling equipment
- Clamping devices for injection molding machines
Operation note:
Always maintain air supply during clamping phase. For vertical installations,
use counterbalance valves to prevent unintended rotation. Lubricate pivot points
every 50,000 cycles using specified grease (AIRTAC LG-500).
Critical parameters:
- Max lateral load: 150N (perpendicular to rod axis)
- Do NOT exceed 100,000 cycles/month without maintenance
- Align workpieces within ±0.5° of rotation axis
| Property | Property Value |
|---|---|
| sku | QDKR40X5-S |
| Front Cover Type | Panel Mount Type |
| Clamping Stroke | <5mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 to 70°C Rotation Angle: 90° |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | <40mm> |
| Direction Code | Right-hand |
