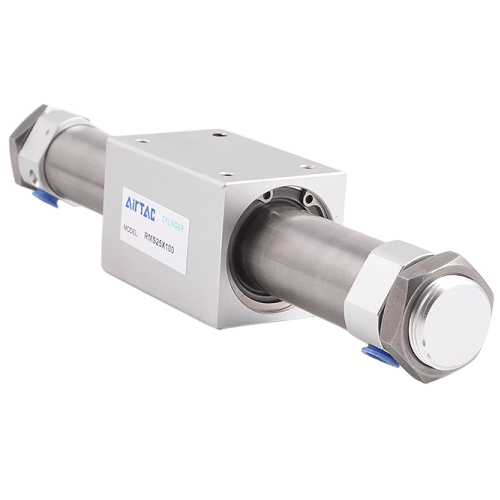

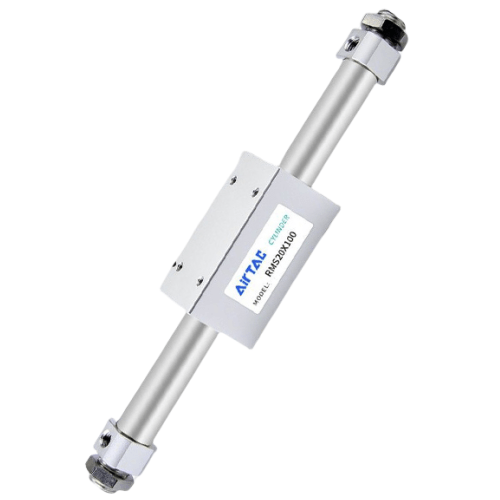

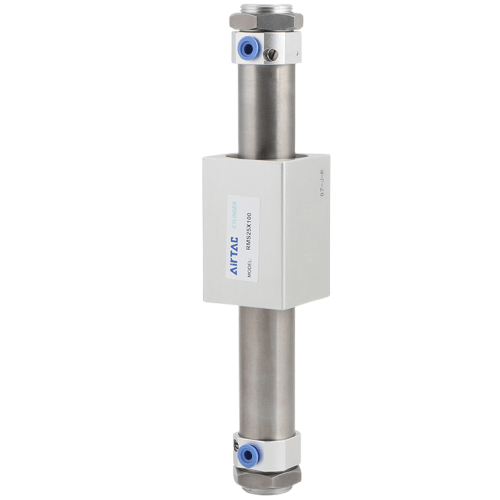

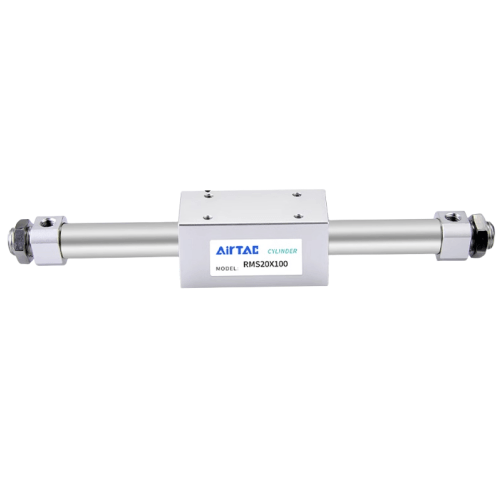

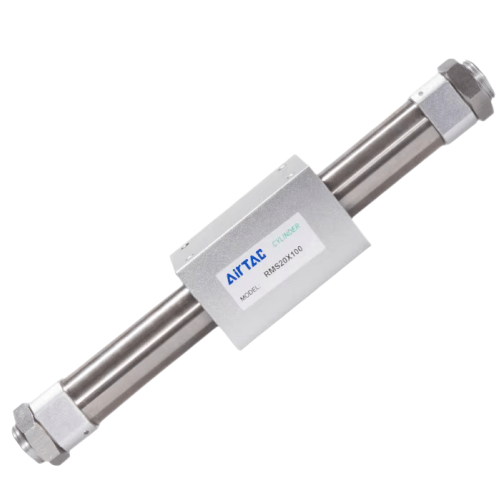

Airtac RMSF Magnetic Coupling Rodless Cylinder RMSF20X800
2、Piston motion is transmitted to external slider through magnetic coupling force, achieving compact installation footprint compared to standard cylinders while delivering extended stroke lengths;
3、Integrated adjustable cushioning at both ends with fixed buffer devices enables smooth directional switching without impact shocks, effectively preventing mechanical wear;
4、Isolated piston chamber and slider configuration creates contamination-resistant structure, blocking dust ingress to significantly enhance operational lifespan.
Category: Rodless Cylinders , Brand: AirTAC , Series: RMSF
AirTAC RMSF Magnetic Coupled Rodless Cylinder RMSF20X800 Technical Details
- Model: RMSF20X800
- Type: Magnetic coupled rodless cylinder (non-contact drive)
- Bore size: 20mm
- Stroke: 800mm
- Operating pressure: 0.05–0.9 MPa
- Max. speed: 0.1–1.5 m/s
- Temperature range: -10℃ to 80℃
- Cushioning: Adjustable rubber buffers (both ends)
- Mounting: Multiple options (female thread, flange, side mount)
- Seal material: NBR + special wear-resistant compound
- Repeat positioning accuracy: ±0.5mm
- Max lateral load: 20N
- Magnetic coupling type: Double-sided permanent magnet
- Port size: M5x0.8 (standard), G1/8 optional
- Weight: 2.85kg (with end caps)
- Dimensions: 950mm(L) × 38mm(W) × 42mm(H)
- Protection rating: IP54 (standard), IP67 with optional wiper seals
Advanced rodless actuator utilizing magnetic coupling technology to eliminate external sliding seals. Features low-friction movement with integrated T-slot for accessory mounting. Ideal for contamination-sensitive environments due to zero external particle generation. Requires 5μm filtered air and ISO VG32 turbine oil lubrication (optional oil-free operation).
- Precision pick-and-place systems in semiconductor manufacturing
- Linear positioning in cleanroom robotics
- Cartesian coordinate automation systems
- Medical device assembly lines
- High-cycle packaging machinery
Installation tip:
Maintain 0.5-1mm clearance between cylinder body and guide rails.
Use alignment jigs during mounting to prevent magnetic decoupling.
Maximum permissible misalignment: 0.2mm/m.
- Zero air leakage design with internal magnetic flux monitoring
- Dual-layer magnetic circuit for 30% higher coupling force vs standard models
- Integrated wear indicator stripes (visible through inspection window)
- Corrosion-resistant anodized aluminum body (MIL-A-8625 Type III)
| Property | Property Value |
|---|---|
| sku | RMSF20X800 |
| Mounting Type | Without Mounting Accessories |
| Safety Holding Force N | Stroke 220mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°F Speed Range: 50-400 mm/s |
| Port Size | PT1/8 |
| Bore Diameter | <20mm> |
| Stroke | 800mm |
