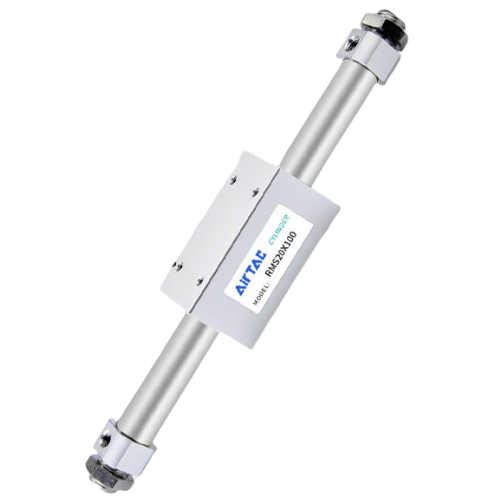

Airtac RMSF Magnetic Coupling Rodless Cylinder RMSF20X900
2、Piston motion is transmitted to external slider through magnetic coupling force, achieving compact installation footprint compared to standard cylinders while delivering extended stroke lengths;
3、Integrated adjustable cushioning at both ends with fixed buffer devices enables smooth directional switching without impact shocks, effectively preventing mechanical wear;
4、Isolated piston chamber and slider configuration creates contamination-resistant structure, blocking dust ingress to significantly enhance operational lifespan.
Category: Rodless Cylinders , Brand: AirTAC , Series: RMSF
AirTAC RMSF Magnetic Coupled Rodless Cylinder RMSF20X900 Specifications
- Model: RMSF20X900
- Type: Magnetic coupled rodless cylinder (non-contact drive)
- Bore size: 20mm
- Stroke length: 900mm
- Operating pressure: 0.05–0.9 MPa
- Temperature range: -10℃ to 80℃
- Coupling type: High-strength rare earth magnet
- Max speed: 0.1–1.5 m/s
- Cushioning: Adjustable rubber buffer (both ends)
- Mounting style: Horizontal only (standard rail mounting)
- Port size: M5x0.8 (1/8" NPT optional)
- Seal material: NBR/PU hybrid seals
- Protection rating: IP54 (standard wiper included)
- Weight: ~3.8 kg (including rail)
- Dimensions: 900mm(L) × 62mm(W) × 48mm(H)
A precision linear actuator combining leak-free magnetic coupling with heavy-duty aluminum construction. Features integrated T-slot mounting rail and wear-resistant anodized surface. The non-contact design eliminates internal seals, achieving 10,000km maintenance-free operation. Requires clean compressed air (ISO 8573-1:2010 class 3-4-3).
- High-speed pick-and-place systems (electronics assembly)
- Cleanroom automation (pharmaceutical packaging)
- Precision coating/dosing equipment
- Multi-axis Cartesian robots
- Laser cutting material feeders
Installation note:
Maintain 0.05-0.15mm clearance between magnetic band and carrier.
Use only non-magnetic fasteners within 50mm of the cylinder body.
Lubricate guide rail with ISO VG32 hydraulic oil during assembly.
Critical parameters:
- Max side load: 35N at mid-stroke
- Ambient humidity: ≤90% RH (non-condensing)
- Vibration resistance: ≤4.9 m/s² (axial direction)
| Property | Property Value |
|---|---|
| sku | RMSF20X900 |
| Mounting Type | Without Mounting Accessories |
| Safety Holding Force N | Stroke 220mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°F Speed Range: 50-400 mm/s |
| Port Size | PT1/8 |
| Bore Diameter | <20mm> |
| Stroke | <900mm> |
