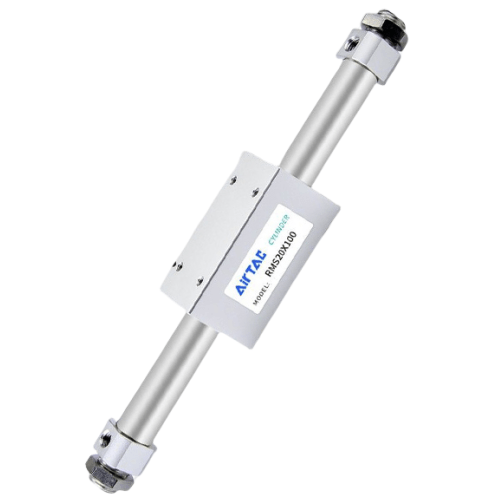

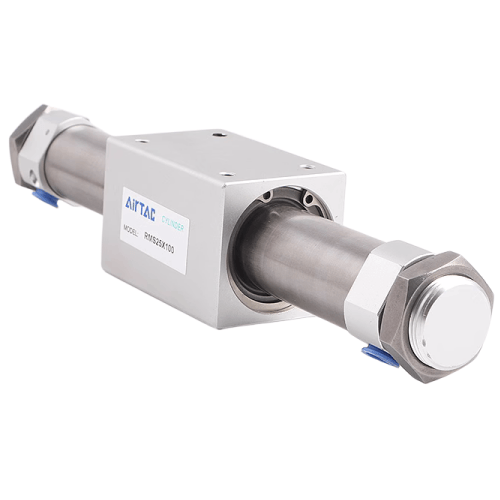

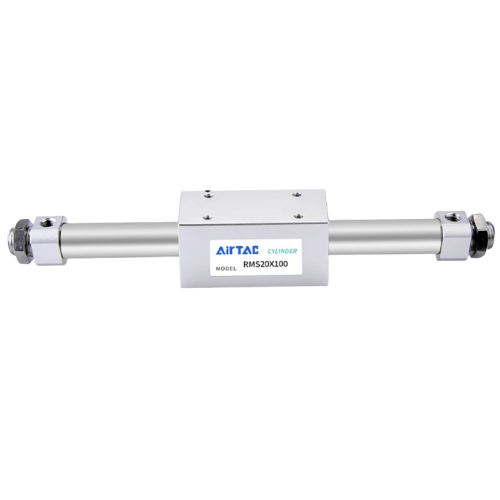

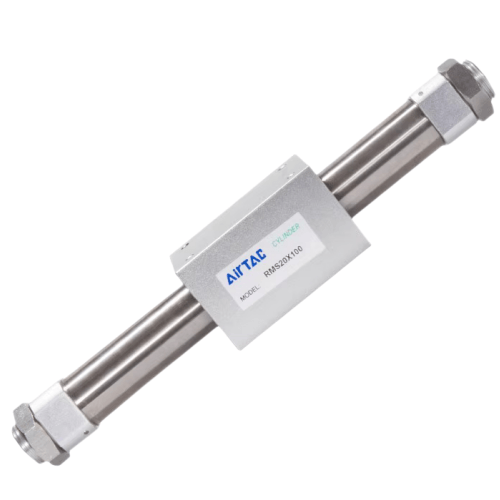

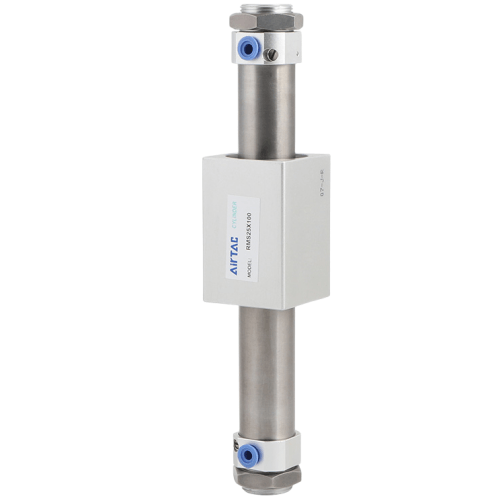

Airtac RMSF Magnetic Coupling Rodless Cylinder RMSF32X350
2、Piston motion is transmitted to external slider through magnetic coupling force, achieving compact installation footprint compared to standard cylinders while delivering extended stroke lengths;
3、Integrated adjustable cushioning at both ends with fixed buffer devices enables smooth directional switching without impact shocks, effectively preventing mechanical wear;
4、Isolated piston chamber and slider configuration creates contamination-resistant structure, blocking dust ingress to significantly enhance operational lifespan.
Category: Rodless Cylinders , Brand: AirTAC , Series: RMSF
AirTAC RMSF32X350 Magnetic Coupled Rodless Cylinder Specifications
- Model: RMSF32X350
- Type: ISO 15552 compliant rodless cylinder with magnetic coupling
- Bore size: 32 mm
- Stroke length: 350 mm (±0.5 mm tolerance)
- Operating pressure: 0.05–1.0 MPa (5–10 bar)
- Max thrust: 226 N at 0.63 MPa (P= F/PA calculation)
- Piston speed: 50–700 mm/s (lubricated)
- Ambient temperature: -20℃ to 80℃ (non-freezing)
- Cushioning: Adjustable pneumatic cushion (both ends)
- Seal material: NBR standard (PU optional)
- Slider material: Anodized aluminum alloy
- Magnetic coupling force: ≥130 N (slider separation resistance)
- Repeat positioning accuracy: ±0.2 mm
- Weight: 2.8 kg (bare cylinder), 3.1 kg with mounting brackets
- Dimensions: 470mm(L) × 52mm(W) × 42mm(H) (stroke included)
- Mounting options: Female thread (M6x1.0), profile rail mounting slots
- Air ports: G1/8 (ISO 1179) dual ports at both ends
- Protection rating: IP54 (standard wipers), IP67 with optional seals
High-precision rodless cylinder employing non-contact magnetic coupling technology, eliminating mechanical wear between slider and cylinder body. Features zero-leakage piston sealing and dual stainless steel scraper bands for debris protection. The T-slot design enables direct load mounting, ideal for space-constrained linear motion applications requiring full stroke utilization.
- Pick-and-place systems in electronic assembly lines
- Precision glass panel handling robots
- Automated curtain wall positioning devices
- Food packaging machinery (stainless steel version available)
- 3D printer gantry synchronization systems
Installation guidelines:
Maintain 0.05mm/m alignment tolerance during rail mounting.
Use M6x12 mounting screws (8.8 grade min.) torqued to 4.5 N·m.
Apply ISO VG32 hydraulic oil for initial lubrication.
Avoid lateral loading exceeding 150N at mid-stroke.
| Property | Property Value |
|---|---|
| sku | RMSF32X350 |
| Mounting Type | Without Mounting Accessories |
| Safety Holding Force N | Stroke: 560mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°F Speed Range: 50-400 mm/s |
| Port Size | PT1/8 |
| Bore Diameter | <32 mm> |
| Stroke | 350mm |
