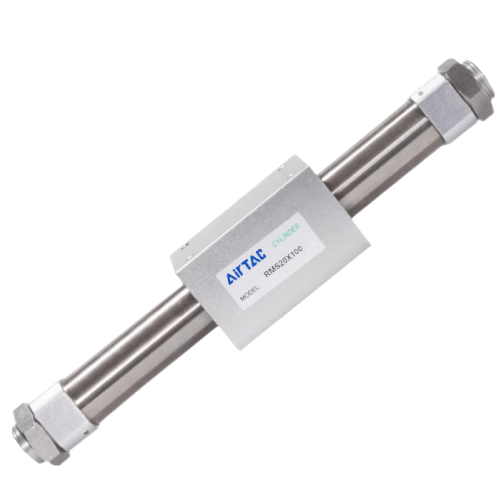

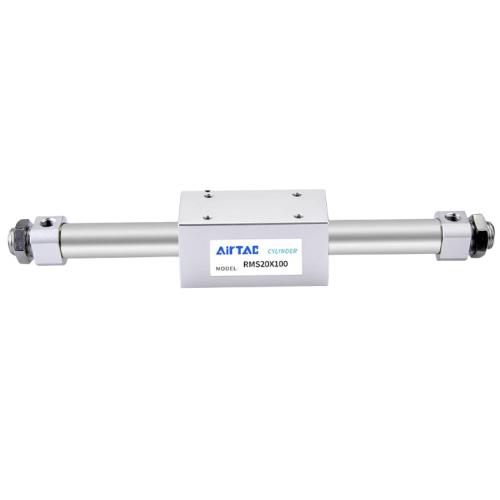

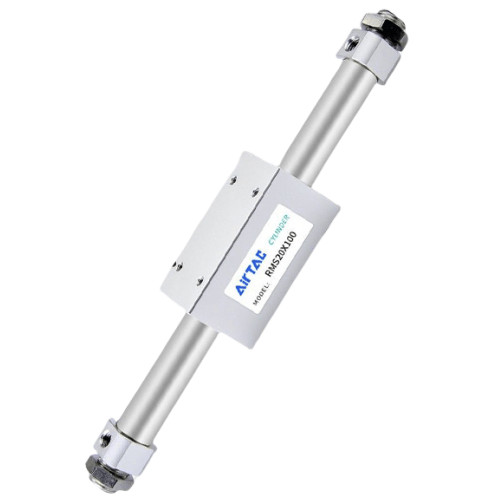

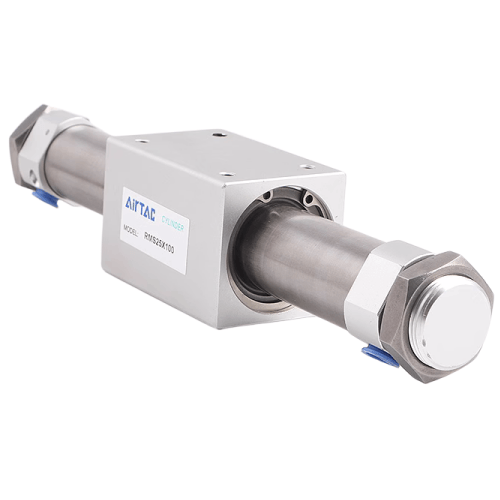

Airtac RMSF Magnetic Coupling Rodless Cylinder RMSF32X490
$291.23
Regular price
$298.73
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
RMSF32X490
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Magnetically coupled rodless cylinder design eliminates mechanical linkage between piston and slider, ensuring superior sealing performance;
2、Piston motion is transmitted to external slider through magnetic coupling force, achieving compact installation footprint compared to standard cylinders while delivering extended stroke lengths;
3、Integrated adjustable cushioning at both ends with fixed buffer devices enables smooth directional switching without impact shocks, effectively preventing mechanical wear;
4、Isolated piston chamber and slider configuration creates contamination-resistant structure, blocking dust ingress to significantly enhance operational lifespan.
Category: Rodless Cylinders , Brand: AirTAC , Series: RMSF
Installation guidelines:
Maintain parallel alignment within 0.2mm/m tolerance. Use M6 mounting screws torqued to 5.5 N·m.
Lubricate every 3,000 km of travel with ISO VG32 turbine oil. Avoid lateral forces exceeding 15% of axial load capacity.
Critical note:
Magnetic coupling degrades above 80℃. Maintain 30mm clearance from ferrous materials.
Use shielded sensors within 5mm detection range. Cycle rate limited to 85% of max speed for strokes >400mm.
2、Piston motion is transmitted to external slider through magnetic coupling force, achieving compact installation footprint compared to standard cylinders while delivering extended stroke lengths;
3、Integrated adjustable cushioning at both ends with fixed buffer devices enables smooth directional switching without impact shocks, effectively preventing mechanical wear;
4、Isolated piston chamber and slider configuration creates contamination-resistant structure, blocking dust ingress to significantly enhance operational lifespan.
Category: Rodless Cylinders , Brand: AirTAC , Series: RMSF
AirTAC RMSF32X490 Magnetic Coupled Rodless Cylinder Specifications
- Model: RMSF32X490
- Type: ISO 15552 compliant rodless cylinder with magnetic coupling
- Bore size: 32 mm
- Stroke length: 490 mm (customizable up to 2000 mm)
- Operating pressure: 0.1–0.9 MPa
- Cushioning: Adjustable air cushion at both ends
- Piston speed: 50–1000 mm/s (lubricated)
- Ambient temperature: -20℃ to 80℃
- Seal material: NBR (nitrile rubber) standard
- Mounting: Multiple options (side-mount, front flange, rear clevis)
- Weight: 2.5 kg (excluding accessories)
- Dimensions:
- Body width: 45 mm
- Body height: 42 mm
- Total length: 635 mm (base length 145 mm + stroke)
- Load capacity: 180 N at 0.6 MPa
- Repeat accuracy: ±0.5 mm
- Protection rating: IP67 (wipers included)
- Magnetic field strength: 70 mT (sensor detectable)
The RMSF32X490 features a leak-proof magnetic coupling system eliminating mechanical seals, ideal for cleanroom or vacuum environments. Its symmetrical groove design enables 360° sensor mounting with built-in T-slots for accessories. The anodized aluminum construction resists corrosion in humid conditions.
Typical Applications:
- Precision material handling in semiconductor FOUP transport
- Vertical Z-axis positioning in CNC tool changers
- High-speed pick-and-place operations in packaging lines
- Cleanroom wafer processing equipment
- Automated optical inspection systems
Installation guidelines:
Maintain parallel alignment within 0.2mm/m tolerance. Use M6 mounting screws torqued to 5.5 N·m.
Lubricate every 3,000 km of travel with ISO VG32 turbine oil. Avoid lateral forces exceeding 15% of axial load capacity.
Critical note:
Magnetic coupling degrades above 80℃. Maintain 30mm clearance from ferrous materials.
Use shielded sensors within 5mm detection range. Cycle rate limited to 85% of max speed for strokes >400mm.
| Property | Property Value |
|---|---|
| sku | RMSF32X490 |
| Mounting Type | Without Mounting Accessories |
| Safety Holding Force N | Stroke: 560mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°F Speed Range: 50-400 mm/s |
| Port Size | PT1/8 |
| Bore Diameter | <32 mm> |
| Stroke | 490mm |
