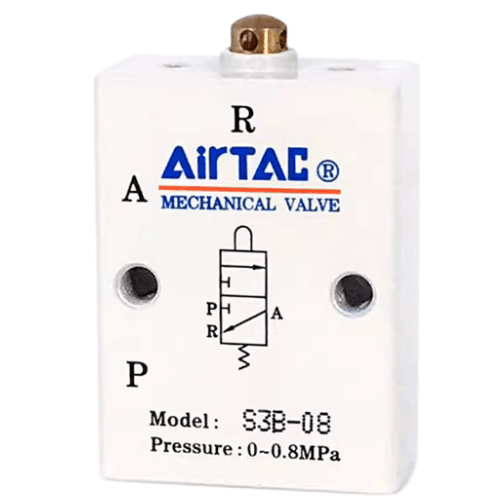

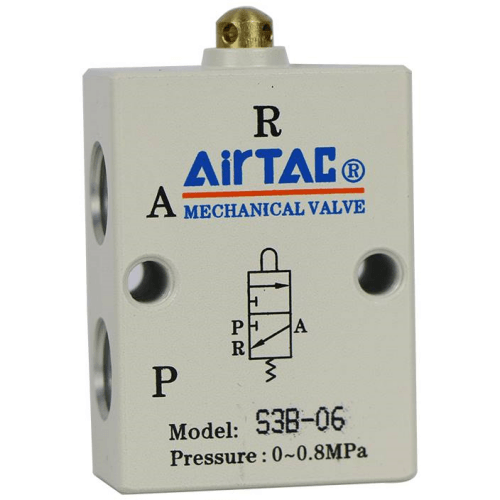

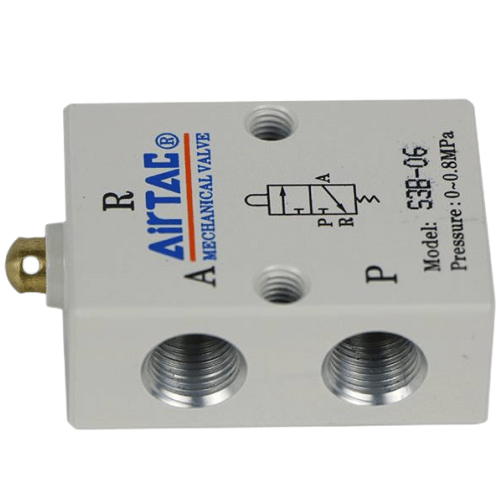

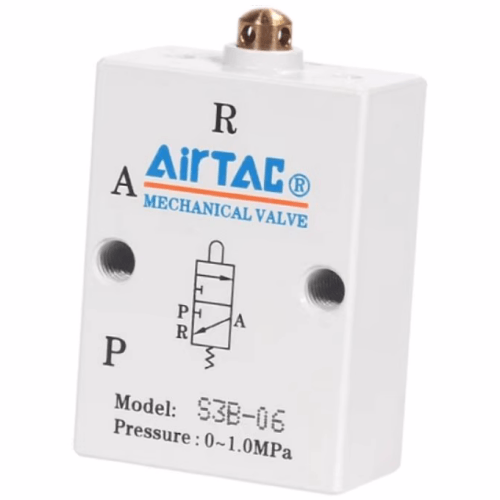

Airtac S3B Basic Type Mechanical Valve S3B-06
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D Series feature manual operation with diverse structural actuator configurations for optimized performance across operating conditions.
3. Poppet mechanism ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements.
4. Multi-position mounting capability enables flexible installation configurations.
5. S3C, S3D, S3Y, S3R, and S3L Series incorporate metallic actuator heads for superior longevity, reliability, and operational stability.
Category: Mechanical Valves | Brand: Airtac | Series: S3B Base-Type Mechanical Valve
AirTAC S3B-06 Basic Mechanical Valve Specifications
- Model: S3B-06
- Type: 3/2-way mechanical valve (Lever-operated)
- Port size: PT1/4 (G1/8 optional)
- Operation method: Manual lever control with detent position
- Pressure range: 0.05–1.0 MPa
- Max flow rate: 850 L/min (ANR)
- Body material: Aluminum alloy (anodized surface)
- Seal material: HNBR rubber (heat/oil resistant)
- Temperature range: -10℃ to 80℃ (with intermittent peaks at 120℃)
- Weight: 280g ±5g
- Dimensions: 68mm(L) × 42mm(W) × 85mm(H)
- Port thread depth: 10mm (full thread engagement)
- Actuation force: ≤3.5N lever pressure
- Vibration resistance: 10–55Hz with 1.5mm amplitude
Robust manual override valve featuring tactile lever feedback and positive position locking. The dual-chamber design prevents cross-port leakage during emergency operations. Compatible with ISO 15407-1 standards, with hardened steel pivot pins for extended cycle life (rated for 1,000,000+ operations).
- Emergency stop systems in production lines
- Manual override in automated assembly stations
- Pneumatic training equipment controls
- Material handling system bypass circuits
- Test bench pressure regulation
Installation note:
Lever axis must align with operator's natural hand motion plane.
Apply 2–3 drops of ISO VG32 pneumatic oil monthly for maintenance
in high-cycle applications. Avoid side-loading the lever.
| Property | Property Value |
|---|---|
| sku | S3B-06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
