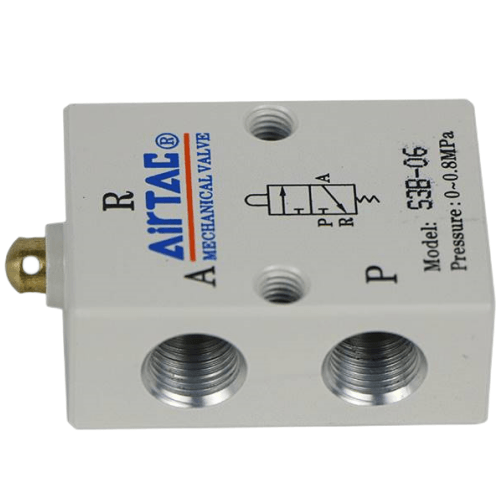

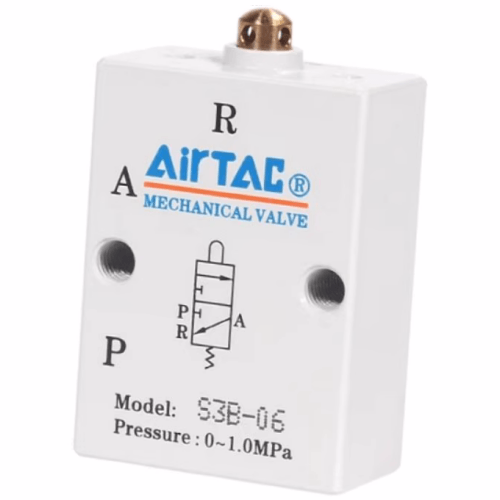

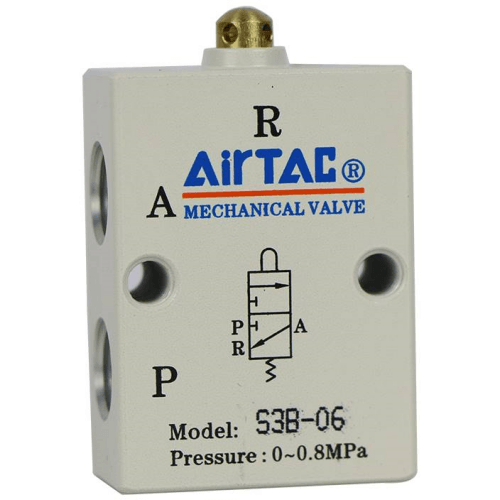

Airtac S3B Basic Type Mechanical Valve S3B-08
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D Series feature manual operation with diverse structural actuator configurations for optimized performance across operating conditions.
3. Poppet mechanism ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements.
4. Multi-position mounting capability enables flexible installation configurations.
5. S3C, S3D, S3Y, S3R, and S3L Series incorporate metallic actuator heads for superior longevity, reliability, and operational stability.
Category: Mechanical Valves | Brand: Airtac | Series: S3B Base-Type Mechanical Valve

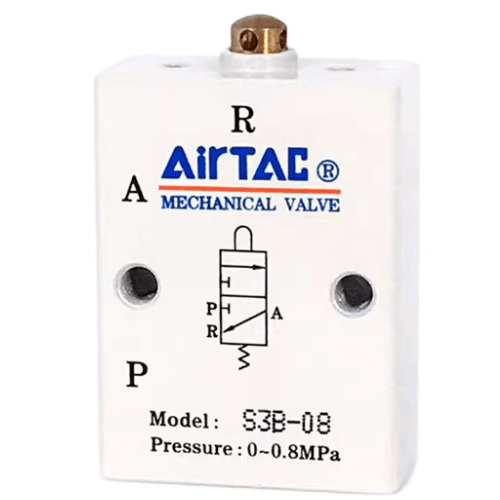

AirTAC S3B-08 Basic Mechanical Valve Specifications
- Model: S3B-08 (Basic Manual Type)
- Operation: Mechanical lever actuation (3-position selector)
- Port configuration: 3 ports/2 positions (3/2-way)
- Port size: PT1/8 (G1/8 optional)
- Body material: Anodized aluminum alloy
- Spool material: Hardened stainless steel
- Seal material: High-grade NBR (nitrile rubber)
- Operating pressure: 0.2–0.8 MPa (29–116 psi)
- Proof pressure: 1.2 MPa max
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Flow capacity: 450 NL/min (ANR)
- Weight: 205g ±5g
- Dimensions: 60mm(L) × 25mm(W) × 25mm(H)
- Mounting: Direct piping (no sub-base required)
- Response time: Instantaneous mechanical action
- Protection rating: IP54 (dust/water resistant)
Manual override valve with positive-locking mechanism, featuring tactile position feedback through a stainless steel detent system. The chrome-plated lever offers 180° rotation with clear position indicators. Designed for systems requiring fail-safe manual control without electrical components. Includes built-in silencer for exhaust air noise reduction (75 dB(A) max).
- Emergency override in automated production lines
- Pneumatic tool control stations
- Material handling equipment safety stops
- Training/test bench setups for fluid power systems
- Mobile hydraulic/pneumatic hybrid systems
Maintenance protocol:
Lubricate pivot points every 5,000 cycles using ISO VG32 hydraulic oil.
Avoid side-loading the actuator lever - maximum permissible lateral force 5N.
Critical note:
Not compatible with phosphate ester-based fluids. Always install downstream
filter (25μm or finer) when using in particle-sensitive applications.
| Property | Property Value |
|---|---|
| sku | S3B-08 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
