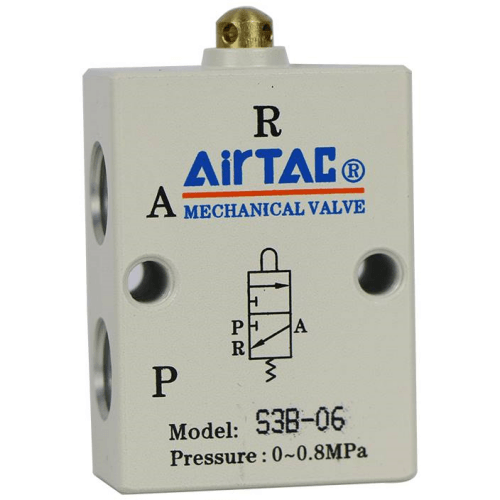

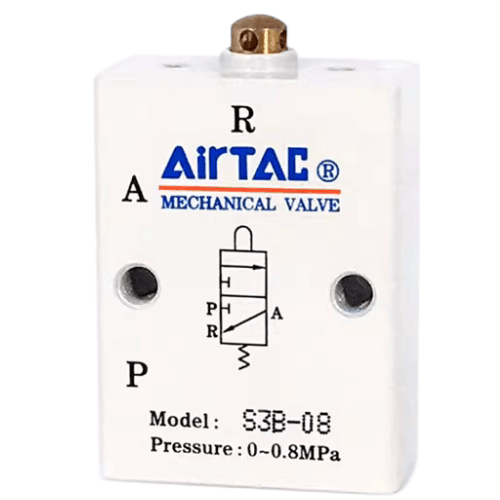

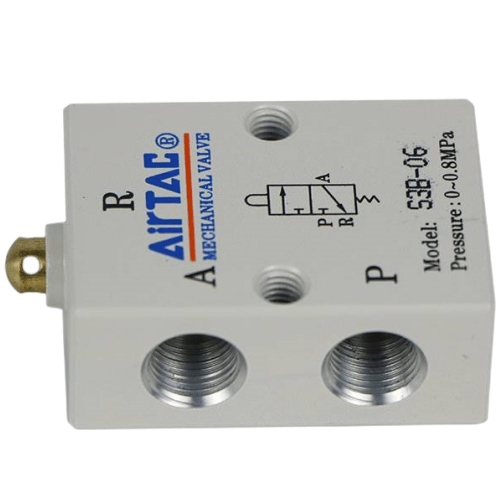

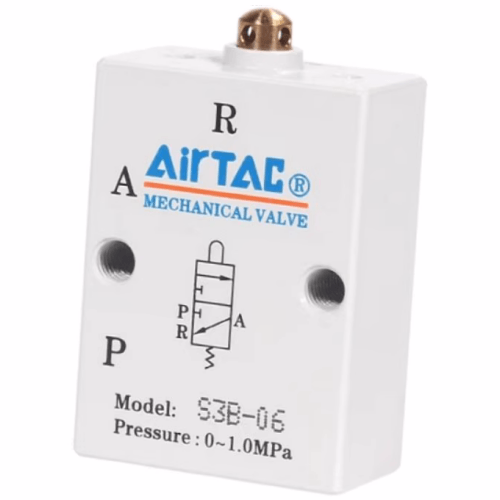

Airtac S3B Basic Type Mechanical Valve S3B-M5
$14.18
Regular price
$21.68
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
S3B-M5
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The S3B, S3R, S3L, and S3V Series require externally supplied actuation force for directional switching, making them ideal for position sensing or travel switch applications.
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D Series feature manual operation with diverse structural actuator configurations for optimized performance across operating conditions.
3. Poppet mechanism ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements.
4. Multi-position mounting capability enables flexible installation configurations.
5. S3C, S3D, S3Y, S3R, and S3L Series incorporate metallic actuator heads for superior longevity, reliability, and operational stability.
Category: Mechanical Valves | Brand: Airtac | Series: S3B Base-Type Mechanical Valve
Installation note:
Ensure exhaust port (R) remains unobstructed. For vertical mounting,
position lever actuator within 30° of horizontal plane for optimal ergonomics.
Lubricate pivot point quarterly with silicone grease.
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D Series feature manual operation with diverse structural actuator configurations for optimized performance across operating conditions.
3. Poppet mechanism ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements.
4. Multi-position mounting capability enables flexible installation configurations.
5. S3C, S3D, S3Y, S3R, and S3L Series incorporate metallic actuator heads for superior longevity, reliability, and operational stability.
Category: Mechanical Valves | Brand: Airtac | Series: S3B Base-Type Mechanical Valve
AirTAC S3B-M5 Basic Mechanical Valve Specifications
- Model: S3B-M5 (Basic Series)
- Type: 3/2-way manual mechanical valve (spring return)
- Port size: M5×0.8 (metric thread)
- Port configuration: P (pressure), A (output), R (exhaust)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 250 L/min (ANR)
- Operating temperature: -5℃ to 80℃
- Actuation force: ≤25N (manual lever operation)
- Seal material: HNBR (Hydrogenated Nitrile)
- Body material: Aluminum alloy (anodized finish)
- Weight: 180g ±5g
- Dimensions: 42mm(L) × 25mm(W) × 54mm(H)
- Mounting: Direct piping or sub-base compatible
- Response time: Instantaneous (mechanical actuation)
- Compatibility: Air, inert gases (non-lubricated)
Compact manual override valve with tactile feedback, designed for emergency operation or system debugging. Features anti-corrosion coating and wear-resistant seals for repetitive manual cycling. Requires no electrical connections, making it ideal for explosion-prone environments.
Typical Applications:
- Production line emergency stop systems
- Pneumatic equipment maintenance bypass
- Educational training rigs for fluid power
- Food processing machinery (oil-resistant version available)
- Mobile hydraulic test benches
Installation note:
Ensure exhaust port (R) remains unobstructed. For vertical mounting,
position lever actuator within 30° of horizontal plane for optimal ergonomics.
Lubricate pivot point quarterly with silicone grease.
| Property | Property Value |
|---|---|
| sku | S3B-M5 |
| Position | 3-Port 2-Position |
| Port Size | M5 |
