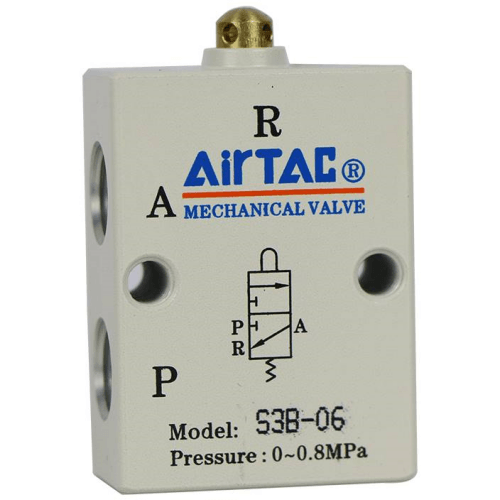

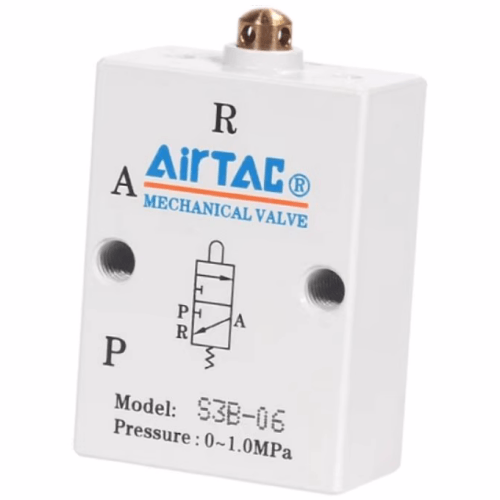

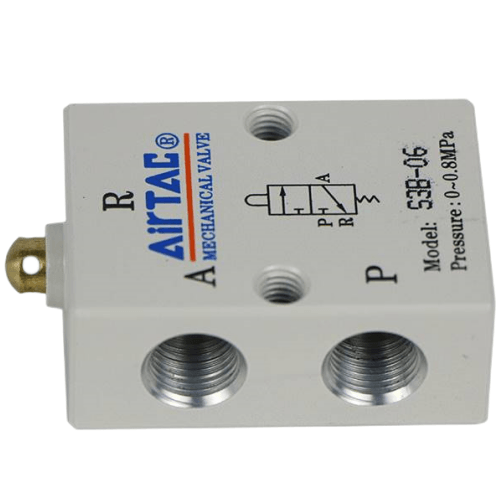

Airtac S3B Basic Type Mechanical Valve S3B06G
$15.11
Regular price
$22.61
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
S3B06G
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The S3B, S3R, S3L, and S3V Series require externally supplied actuation force for directional switching, making them ideal for position sensing or travel switch applications.
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D Series feature manual operation with diverse structural actuator configurations for optimized performance across operating conditions.
3. Poppet mechanism ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements.
4. Multi-position mounting capability enables flexible installation configurations.
5. S3C, S3D, S3Y, S3R, and S3L Series incorporate metallic actuator heads for superior longevity, reliability, and operational stability.
Category: Mechanical Valves | Brand: Airtac | Series: S3B Base-Type Mechanical Valve
Installation guidelines:
Mount in accessible locations with clear visual access to position indicator.
Apply 2-3 drops of ISO VG32 oil monthly for non-lubricated systems.
Avoid side-loading the actuator button during operation.
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D Series feature manual operation with diverse structural actuator configurations for optimized performance across operating conditions.
3. Poppet mechanism ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements.
4. Multi-position mounting capability enables flexible installation configurations.
5. S3C, S3D, S3Y, S3R, and S3L Series incorporate metallic actuator heads for superior longevity, reliability, and operational stability.
Category: Mechanical Valves | Brand: Airtac | Series: S3B Base-Type Mechanical Valve
AirTAC S3B Basic Mechanical Valve S3B06G Technical Details
- Model: S3B06G (Basic Series)
- Valve type: 3/2-way mechanical spring return
- Operation method: Manual push-button with mechanical lock
- Port size: PT1/4 (G1/8 optional)
- Thread standard: BSPP (parallel thread)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Max flow rate: 750 L/min (Cv=1.2)
- Actuation force: 35N ±5N
- Seal material: Oil-resistant NBR
- Body material: Anodized aluminum alloy
- Temperature range: -5℃ to 80℃ (23°F to 176°F)
- Weight: 185g ±5g
- Dimensions: 52mm(L) × 25mm(W) × 42mm(H)
- Port positions: P (pressure), A (output), R (exhaust)
- Protection rating: IP54 (dust protected, water splashes)
Manual override valve with tactile feedback, designed for emergency stops or manual control in automated systems. Features dual-color position indicator (green/red) and corrosion-resistant construction. Requires 5-7 bar lubricated or non-lubricated air (ISO 8573-1 class 3).
Common Applications:
- Production line emergency stop stations
- Pneumatic fixture manual override control
- Material handling system maintenance modes
- Train door control systems (manual backup)
- Food processing equipment manual operation
Installation guidelines:
Mount in accessible locations with clear visual access to position indicator.
Apply 2-3 drops of ISO VG32 oil monthly for non-lubricated systems.
Avoid side-loading the actuator button during operation.
| Property | Property Value |
|---|---|
| sku | S3B06G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
