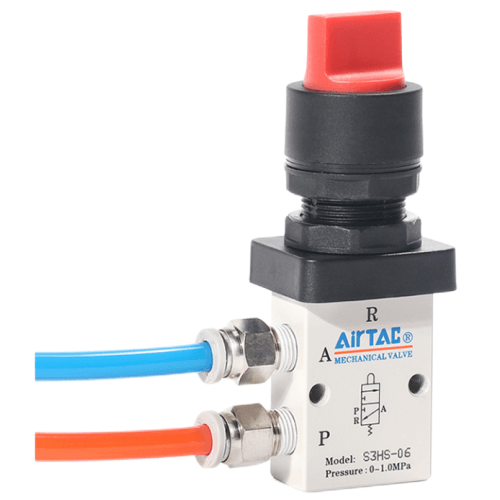

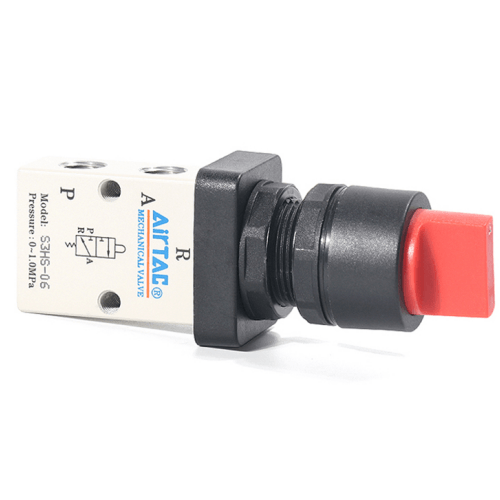

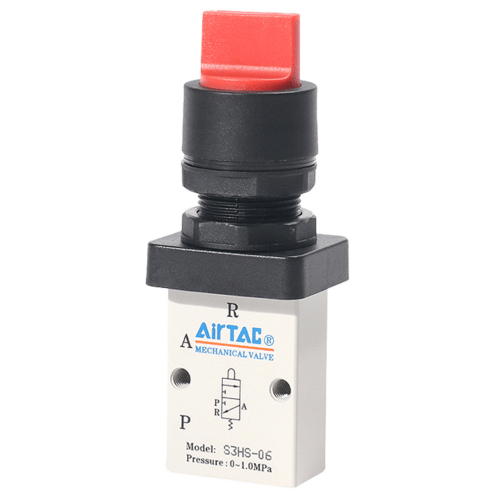

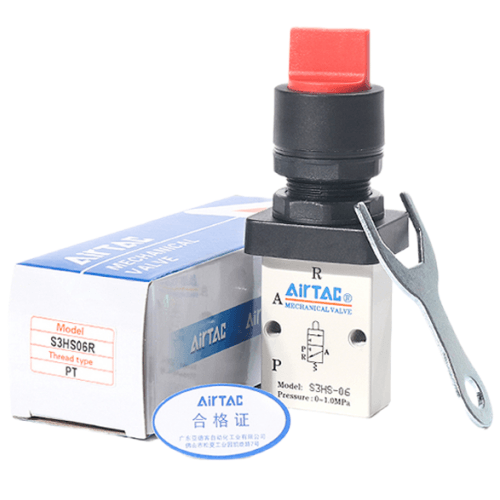

Airtac S3HS Selector Mechanical Valve S3HS-06-B
$19.86
Regular price
$27.36
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
S3HS-06-B
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. S3B, S3R, S3L, and S3V series require externally supplied actuation force for directional switching, suitable for position detection or limit switch applications;
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with multiple structural configurations of control heads for enhanced adaptability across diverse application scenarios;
3. Poppet valve structure ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability facilitates flexible integration and simplified installation;
5. S3C, S3D, S3Y, S3R, and S3L series employ metal-constructed control heads for enhanced durability, reliability, and operational stability.
Category: Mechanical Valves , Brand: AIRTAC , Series: S3HS
Installation note:
Lubricate lever pivot quarterly with ISO VG32 turbine oil.
Ensure exhaust ports face downward when vertical mounting
isn't possible. Maximum lateral force on lever: 15N.
Critical:
Always depressurize system before switching positions
to prevent seal damage from pressure spikes.
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with multiple structural configurations of control heads for enhanced adaptability across diverse application scenarios;
3. Poppet valve structure ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability facilitates flexible integration and simplified installation;
5. S3C, S3D, S3Y, S3R, and S3L series employ metal-constructed control heads for enhanced durability, reliability, and operational stability.
Category: Mechanical Valves , Brand: AIRTAC , Series: S3HS
AirTAC S3HS-06-B Selector Mechanical Valve Specifications
- Model: S3HS-06-B
- Type: 3-position selector valve (Manual operation)
- Port configuration: 5 ports (P, A, B, R1, R2)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.1–0.8 MPa
- Max flow rate: 750 L/min (ANR)
- Operating temperature: -20℃ to 80℃
- Seal material: HNBR (Hydrogenated Nitrile)
- Body material: Anodized aluminum alloy
- Weight: 215g ±5g
- Dimensions: 52mm(L) × 48mm(W) × 76mm(H)
- Mounting: Panel mount with M5 screw holes
- Exhaust type: Separate exhaust ports (R1/R2)
- Lever operation angle: 50° switching rotation
Manual selector valve with center closed position, designed for precise directional control in pneumatic circuits. Features positive detent mechanism for secure position locking and wear-resistant seals for >500,000 cycle durability. Includes dust-resistant cap for lever protection.
Typical Applications:
- Manual mode selection in automated production lines
- Emergency override systems for machinery
- Pneumatic circuit debugging/maintenance stations
- Educational training equipment for fluid power
- Mobile hydraulic/pneumatic hybrid systems
Installation note:
Lubricate lever pivot quarterly with ISO VG32 turbine oil.
Ensure exhaust ports face downward when vertical mounting
isn't possible. Maximum lateral force on lever: 15N.
Critical:
Always depressurize system before switching positions
to prevent seal damage from pressure spikes.
| Property | Property Value |
|---|---|
| sku | S3HS-06-B |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
