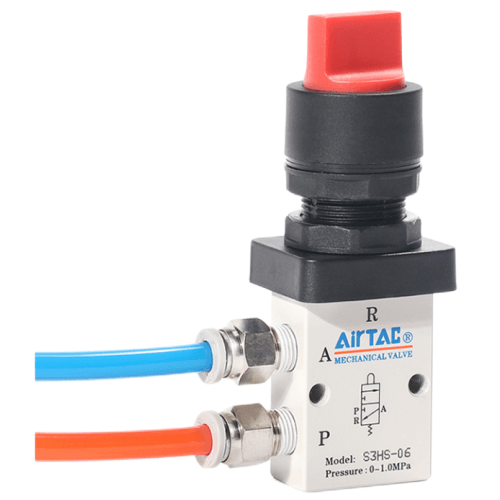

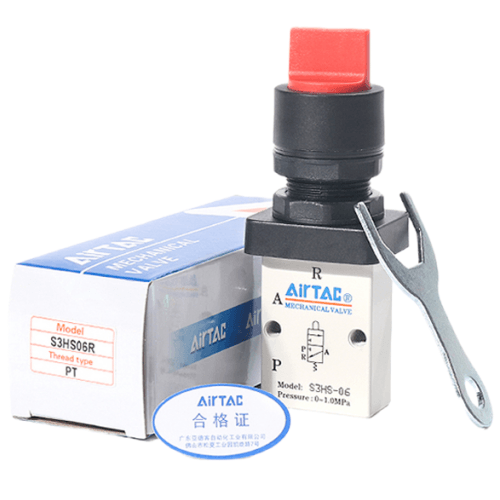

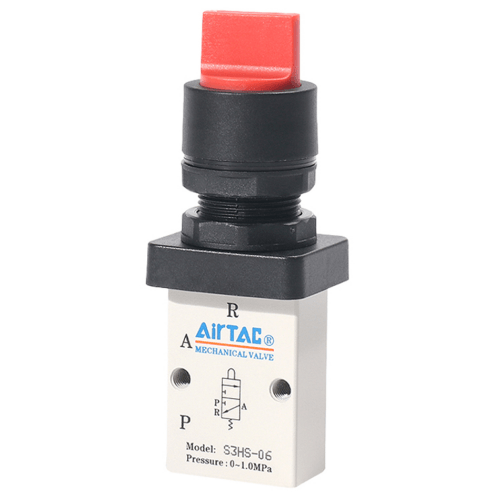

Airtac S3HS Selector Mechanical Valve S3HS-08-B
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with multiple structural configurations of control heads for enhanced adaptability across diverse application scenarios;
3. Poppet valve structure ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability facilitates flexible integration and simplified installation;
5. S3C, S3D, S3Y, S3R, and S3L series employ metal-constructed control heads for enhanced durability, reliability, and operational stability.
Category: Mechanical Valves , Brand: AIRTAC , Series: S3HS
AirTAC S3HS-08-B Selector Mechanical Valve Technical Details
- Model: S3HS-08-B
- Type: 3-position selector valve (Manual override)
- Port configuration: 5 ports/3 positions
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 850 L/min (ANR)
- Actuation force: ≤5 N
- Weight: 320g ±5g
- Dimensions: 68mm(L) × 48mm(W) × 35mm(H)
- Body material: Anodized aluminum alloy
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -10℃ to 80℃ (with silicone seals optional to -20℃)
- Viscosity range: ≤50 cSt
- Port thread depth: 10mm
- Mounting: Sub-base or direct piping
Manual override mechanical valve with center-block function, featuring dual-color position indicator (green/red) for visual status confirmation. The dual-bearing rotary mechanism ensures smooth operation with 500,000+ cycle durability. Compatible with ISO 15407-1 standards, with anti-vibration design for mobile applications.
- Production line emergency stop systems
- Hydraulic press mode selection
- Agricultural machinery direction control
- Train door pneumatic systems
- Beverage filling station pressure routing
Installation guidelines:
Lubricate pivot points with ISO VG32 oil before initial use.
Maintain minimum 15mm clearance around actuator lever.
For vertical mounting, ensure exhaust ports face downward.
| Property | Property Value |
|---|---|
| sku | S3HS-08-B |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
