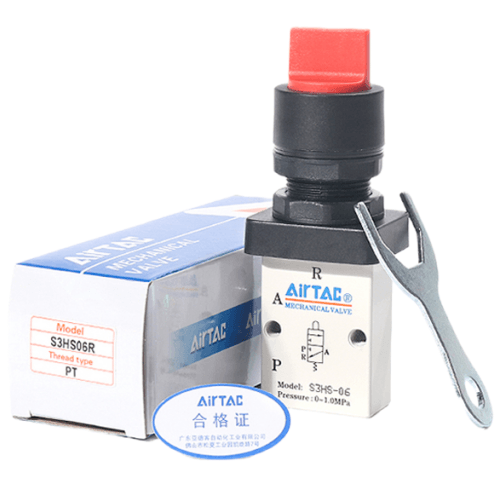

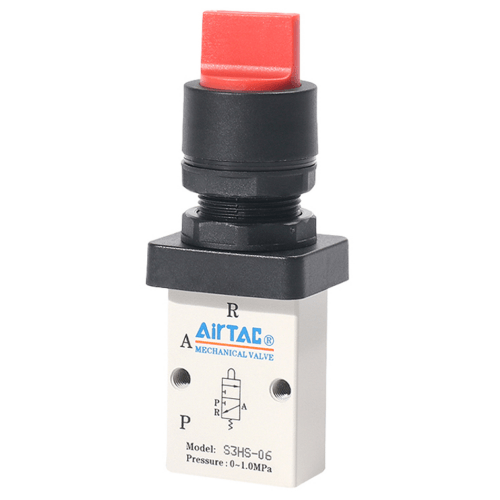

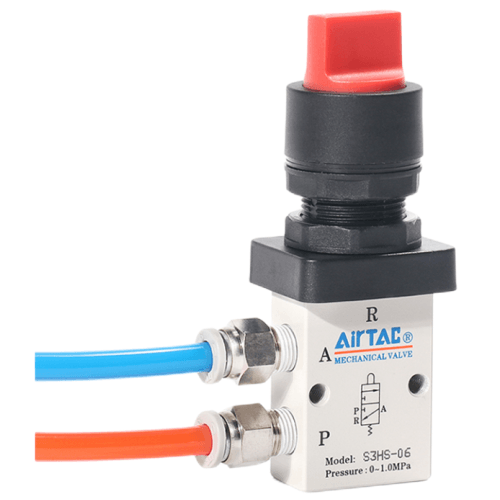

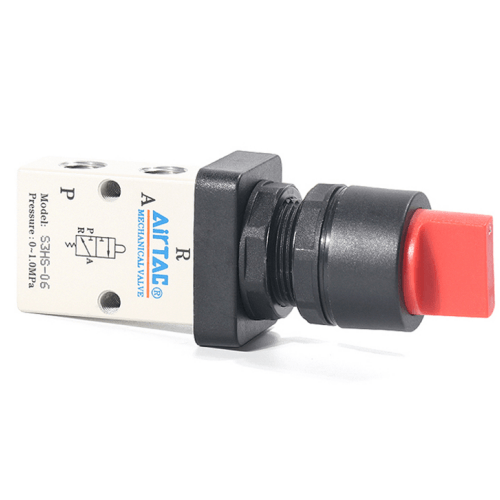

Airtac S3HS Selector Mechanical Valve S3HS-M5-B
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with multiple structural configurations of control heads for enhanced adaptability across diverse application scenarios;
3. Poppet valve structure ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability facilitates flexible integration and simplified installation;
5. S3C, S3D, S3Y, S3R, and S3L series employ metal-constructed control heads for enhanced durability, reliability, and operational stability.
Category: Mechanical Valves , Brand: AIRTAC , Series: S3HS
AirTAC S3HS-M5-B Selector Mechanical Valve Technical Details
- Model: S3HS-M5-B
- Type: 3-position selector valve (manual override)
- Port configuration: 5 ports (P, A, B, EA, EB)
- Thread size: M5×0.8 (ISO standard)
- Operating pressure: 0.1–0.7 MPa
- Voltage compatibility: DC12V/24V, AC110V/220V (solenoid version)
- Weight: 120g ±5% (excluding accessories)
- Dimensions: 30mm(W) × 30mm(D) × 50mm(H)
- Seal materials: NBR/FKM (optional high-temp seals)
- Temperature tolerance: -10℃ to 60℃ (standard seals)
- Flow capacity: 100L/min (ANR, at 0.5MPa)
- Response time: ≤15ms (electrical actuation)
- Protection class: IP65 (dust/water jet resistant)
- Manual override: Rotary lever with position lock
Modular mechanical valve with hybrid actuation capabilities, combining manual override and optional solenoid control. Features dual exhaust ports (EA/EB) for precise pneumatic circuit management. The hardened stainless steel shaft and self-lubricating bushings ensure 500,000+ cycle durability. Requires ISO 8573-1 class 3 compressed air.
- Jig fixture clamping systems
- Semiconductor wafer handling robots
- Textile machinery pattern selectors
- Food processing pneumatic diverters
- 3D printer filament control systems
Installation protocol:
Mount with 0.5-0.6Nm torque using M5 mounting screws. Lubricate shaft monthly with ISO VG32 hydraulic oil.
Maintain ≥20mm clearance from electromagnetic sources in solenoid versions.
| Property | Property Value |
|---|---|
| sku | S3HS-M5-B |
| Position | 3-Port 2-Position |
| Port Size | M5 |
