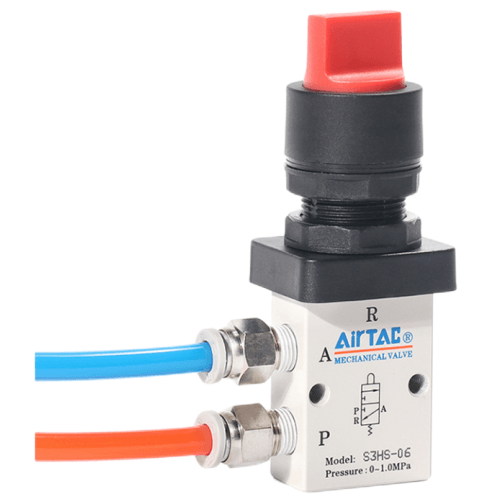

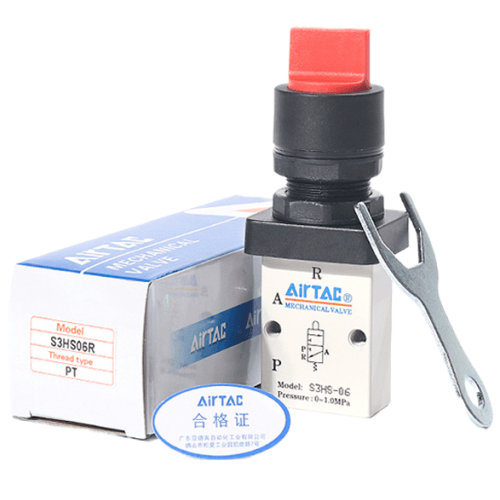

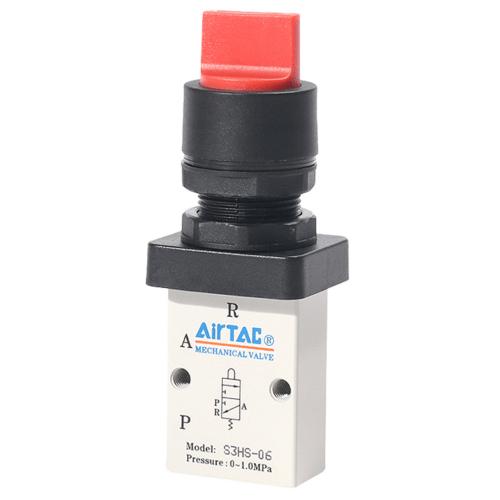

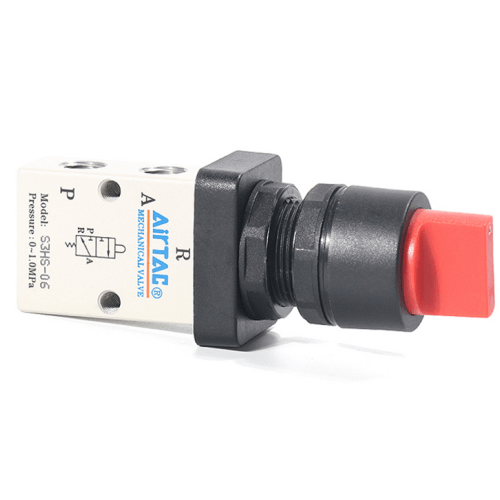

Airtac S3HS Selector Mechanical Valve S3HS06GG
$19.76
Regular price
$27.26
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
S3HS06GG
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. S3B, S3R, S3L, and S3V series require externally supplied actuation force for directional switching, suitable for position detection or limit switch applications;
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with multiple structural configurations of control heads for enhanced adaptability across diverse application scenarios;
3. Poppet valve structure ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability facilitates flexible integration and simplified installation;
5. S3C, S3D, S3Y, S3R, and S3L series employ metal-constructed control heads for enhanced durability, reliability, and operational stability.
Category: Mechanical Valves , Brand: AIRTAC , Series: S3HS
Maintenance tip:
Lubricate pivot points with ISO VG32 hydraulic oil every 5,000 cycles.
Use locking pliers when connecting tubing to prevent body rotation.
Critical note:
Not compatible with phosphate ester-based fluids. Maximum allowable
particle size in air supply: 50μm. Install downstream filter regulator
when used with pneumatic actuators.
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with multiple structural configurations of control heads for enhanced adaptability across diverse application scenarios;
3. Poppet valve structure ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability facilitates flexible integration and simplified installation;
5. S3C, S3D, S3Y, S3R, and S3L series employ metal-constructed control heads for enhanced durability, reliability, and operational stability.
Category: Mechanical Valves , Brand: AIRTAC , Series: S3HS
AirTAC S3HS06GG Selector Mechanical Valve Technical Details
- Model: S3HS06GG (Manual Selector Valve Series)
- Valve type: 3-position selector with detent mechanism
- Port configuration: 5 ports (P, A, B, R1, R2)
- Port thread size: G1/8 (ISO228 standard)
- Operating pressure range: 0.05–0.9 MPa
- Max flow rate: 750 NL/min (ANR)
- Operating temperature: -10℃ to 80℃ (no ice formation)
- Body material: Aluminum alloy with hard anodized finish
- Seal material: HNBR (Hydrogenated Nitrile) for improved oil resistance
- Manual operation torque: ≤1.2 N·m
- Weight: 385±10g (including accessories)
- Dimensions: 56mm(W) × 56mm(H) × 97mm(L)
- Mounting: Panel mount with M5 screw holes (4 places)
- Exhaust: Integrated silencers with 2×φ5.5mm ports
Industrial-grade manual selector valve featuring positive center position lock and visual position indicator. The dual exhaust structure enables rapid cylinder movement control, with chrome-plated brass stem for smooth operation. Compatible with ISO 15407-1 standard pneumatic systems.
Common Applications:
- Production line mode switching stations
- Emergency stop pneumatic circuit control
- Hydraulic/pneumatic hybrid system direction control
- Automated test equipment manual override
- Food processing machinery with frequent mode changes
Maintenance tip:
Lubricate pivot points with ISO VG32 hydraulic oil every 5,000 cycles.
Use locking pliers when connecting tubing to prevent body rotation.
Critical note:
Not compatible with phosphate ester-based fluids. Maximum allowable
particle size in air supply: 50μm. Install downstream filter regulator
when used with pneumatic actuators.
| Property | Property Value |
|---|---|
| sku | S3HS06GG |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
