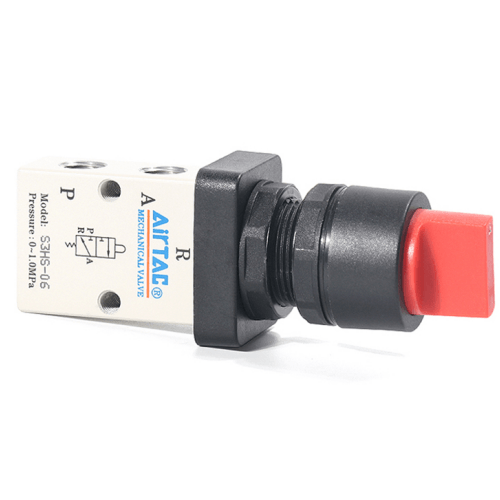

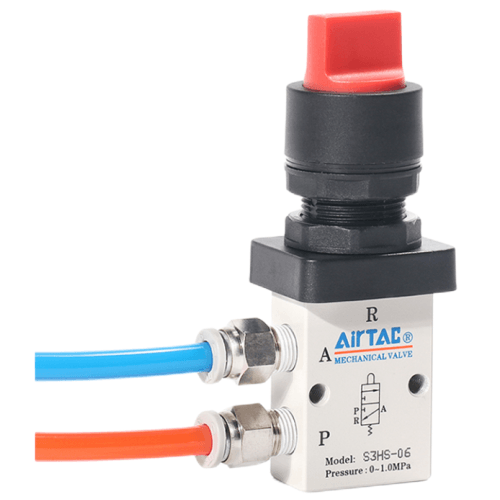

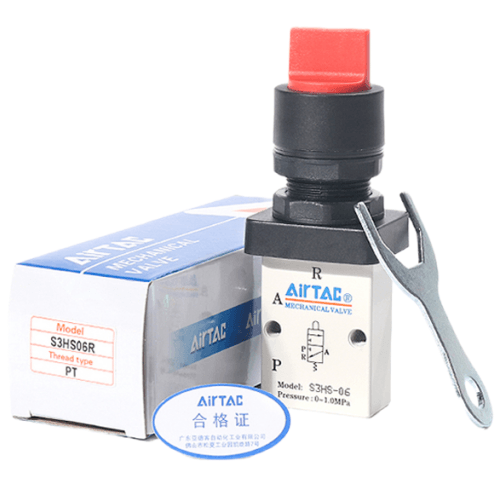

Airtac S3HS Selector Mechanical Valve S3HS08BG
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with multiple structural configurations of control heads for enhanced adaptability across diverse application scenarios;
3. Poppet valve structure ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability facilitates flexible integration and simplified installation;
5. S3C, S3D, S3Y, S3R, and S3L series employ metal-constructed control heads for enhanced durability, reliability, and operational stability.
Category: Mechanical Valves , Brand: AIRTAC , Series: S3HS
AirTAC S3HS08BG Selector Mechanical Valve Technical Details
- Model: S3HS08BG
- Type: 3-position selector valve (Mechanical spring return)
- Port configuration: 5 ports (P, A, B, EA, EB)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 750 L/min (ANR)
- Actuation force: 20N±15% (manual operation)
- Weight: 320g ±5%
- Dimensions: 98mm(L) × 48mm(W) × 62mm(H)
- Body material: Die-cast aluminum alloy (anodized)
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -10℃ to 80℃ (with silicone seals optional to 150℃)
- Viscosity range: 1–200 cSt
- Mounting: ISO 15407-1 compliant sub-base
Multi-functional manual override valve with center exhaust configuration, designed for pneumatic system mode selection and emergency operation. Features dual-position locking mechanism with tactile feedback, optimized for high-cycle industrial environments. Compatible with ISO 15407-1 mounting systems.
- Production line mode switching (auto/manual)
- Injection molding machine safety overrides
- Material handling system diverters
- Test bench pneumatic circuit configuration
- Robotic cell emergency stop circuits
Installation note:
Ensure proper exhaust port orientation (EA/EB downward) to prevent debris ingress.
Lubricate pivot points with ISO VG32 pneumatic oil during maintenance.
Maximum lateral operating force should not exceed 35N.
| Property | Property Value |
|---|---|
| sku | S3HS08BG |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
