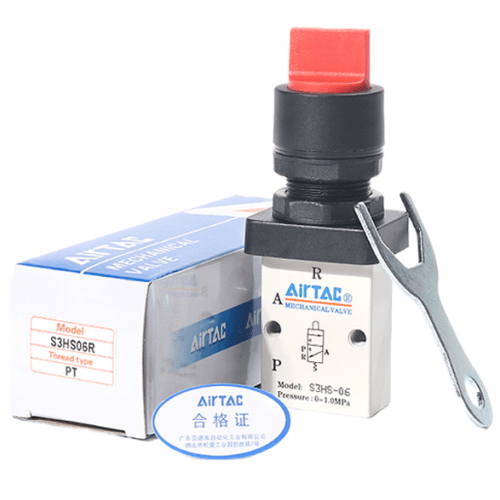

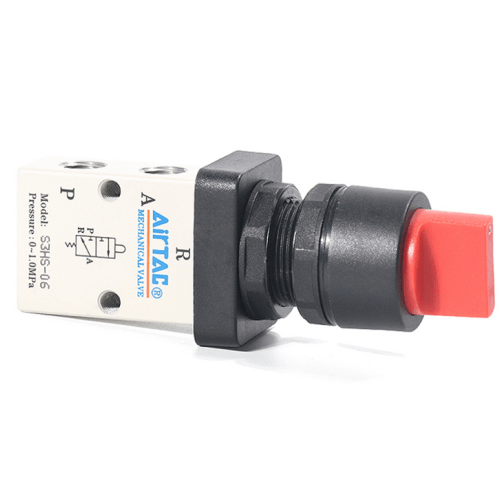

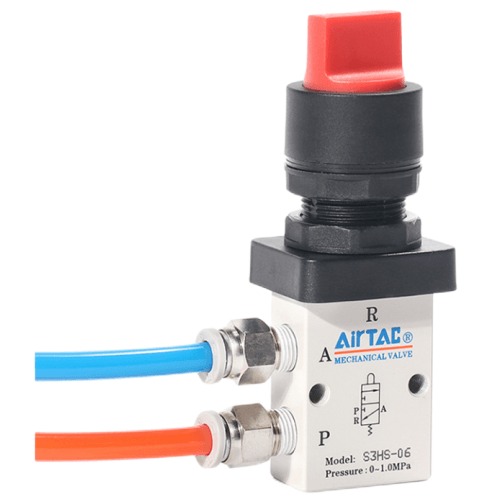

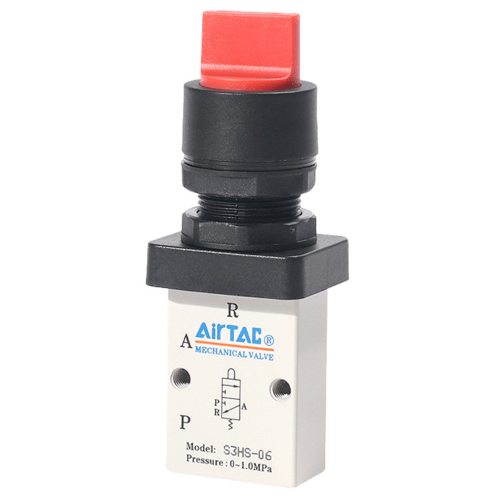

Airtac S3HS Selector Mechanical Valve S3HSM5R
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with multiple structural configurations of control heads for enhanced adaptability across diverse application scenarios;
3. Poppet valve structure ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability facilitates flexible integration and simplified installation;
5. S3C, S3D, S3Y, S3R, and S3L series employ metal-constructed control heads for enhanced durability, reliability, and operational stability.
Category: Mechanical Valves , Brand: AIRTAC , Series: S3HS
AirTAC S3HSM5R Selector Mechanical Valve Technical Details
- Model: S3HSM5R (S3HS Series)
- Type: 5-port 3-position selector valve (Closed center)
- Port configuration: R (P-A-B-R1-R2)
- Port size: PT1/8 (M5x0.8 thread optional)
- Operating pressure: 0.2–0.8 MPa (29–116 psi)
- Maximum flow: 750 L/min (Cv=1.3 at 0.5 MPa)
- Actuation force: 20N±10% manual override
- Weight: 320g ±5% (including accessories)
- Dimensions: 54mm(W) × 48mm(H) × 84mm(L)
- Body material: Aluminum alloy (anodized finish)
- Seal options: NBR (standard) / FKM (high temp)
- Temperature range:
- -10℃ to 60℃ (NBR seals)
- -20℃ to 120℃ (FKM option)
- Response time: ≤30ms (port-to-port switching)
- Hysteresis: ≤10% of full stroke
- Protection rating: IP67 (dust/water resistant)
Industrial-grade mechanical selector valve featuring dual manual override capability and position-indicating LEDs. The S3HSM5R's symmetrical port design enables bi-directional flow control with zero pressure drop in neutral position. Enhanced wear resistance through hardened stainless steel guide sleeves and PTFE-coated spool. Compatible with ISO 15407-1 standards.
- Multi-station pneumatic circuit selection in assembly lines
- Emergency override systems for robotic actuators
- Process switching in semiconductor wafer handling
- Dual-pressure regulation for injection molding machines
- Air circuit control in food packaging machinery (FDA-compliant seals available)
Mounting guidelines:
Install with valve axis ±15° from vertical position. Use shock-absorbing mounts
in high-vibration environments (>5G). Lubricate with ISO VG32 pneumatic oil
if air line lacks lubrication. Minimum 5x port diameter straight tubing required
downstream.
Leakage: ≤3 bubbles/min (internal) / 0 bubbles (external) per JIS B8390 test
| Property | Property Value |
|---|---|
| sku | S3HSM5R |
| Position | 3-Port 2-Position |
| Port Size | M5 |
