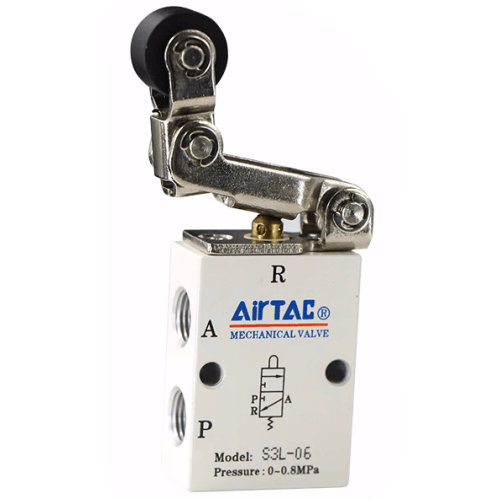

Airtac S3L One-way Roller Lever Type Mechanical Valve S3L-06
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with diverse actuator configurations to accommodate varied operational conditions;
3. Poppet valve structure ensures excellent sealing performance, responsive directional switching, and maintenance-free operation (no lubrication required);
4. Multi-position installation capability for flexible integration and user convenience;
5. S3C, S3D, S3Y, S3R, and S3L series utilize metal actuators for superior durability and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: S3L
AirTAC S3L-06 Uni-directional Roller Lever Mechanical Valve Specifications
- Model: S3L-06
- Type: 3/2-way normally closed (mechanical actuation)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.9 MPa
- Lever stroke: 2.5±0.5mm
- Actuation force: ≤1.5N
- Roller diameter: 6mm (stainless steel)
- Valve body material: Anodized aluminum alloy
- Seal material: Heat-resistant polyurethane
- Temperature range: -10℃ to 80℃
- Flow coefficient (Cv): 0.45
- Weight: 185g ±5g
- Dimensions: 52mm(L) × 34mm(W) × 68mm(H)
- Protection rating: IP67 (dust/water resistant)
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
Mechanical roller lever valve featuring positive tactile feedback and 1 million cycle durability. The 45° angular roller design enables reliable actuation from multiple directions. Includes built-in shock absorption for high-impact environments. Requires ISO 8573-1:2010 Class 4 compressed air (max 5mg/m³ oil content).
- Cartesian robot end effector positioning
- Conveyor belt package detection systems
- Safety door interlock mechanisms
- Textile machinery thread tension control
- Automated assembly line jig triggers
Installation guidelines:
Mount with lever perpendicular to actuation direction. Maintain 0.5-1mm gap between roller and trigger surface.
Lubricate pivot point every 3,000 operating cycles using ISO VG32 hydraulic oil.
Critical note:
Avoid lateral impacts exceeding 50N on lever arm. Install protective sleeve (P/N: SL-06-GRD) in environments with metal particulates.
| Property | Property Value |
|---|---|
| sku | S3L-06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
