Airtac S3L One-way Roller Lever Type Mechanical Valve S3L-08
$20.90
Regular price
$28.40
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
S3L-08
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

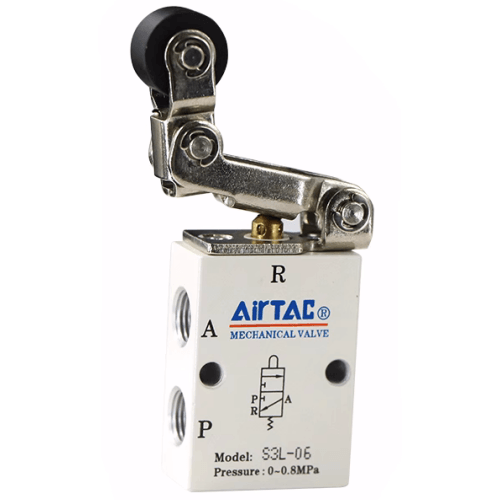

S3L Uni-directional Roller Lever Mechanical Valve
1. S3B, S3R, S3L, and S3V series require externally provided actuation force for directional switching, suitable for position detection or stroke switching applications;
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with diverse actuator configurations to accommodate varied operational conditions;
3. Poppet valve structure ensures excellent sealing performance, responsive directional switching, and maintenance-free operation (no lubrication required);
4. Multi-position installation capability for flexible integration and user convenience;
5. S3C, S3D, S3Y, S3R, and S3L series utilize metal actuators for superior durability and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: S3L
Installation guidelines:
Mount with M4 screws (2.5Nm torque) perpendicular to actuator motion path.
Maintain 3-5mm gap between roller and trigger surface. Lubricate pivot point
quarterly with ISO VG32 hydraulic oil.
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with diverse actuator configurations to accommodate varied operational conditions;
3. Poppet valve structure ensures excellent sealing performance, responsive directional switching, and maintenance-free operation (no lubrication required);
4. Multi-position installation capability for flexible integration and user convenience;
5. S3C, S3D, S3Y, S3R, and S3L series utilize metal actuators for superior durability and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: S3L
AirTAC S3L-08 Unidirectional Roller Lever Mechanical Valve Specifications
- Model: S3L-08
- Type: 3-way (3/2) normally closed mechanical valve
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure: 0.15–0.8 MPa (21.7–116 psi)
- Actuation force: 1.5–2.5N lever operation
- Flow capacity: Cv 0.45 (at 0.5 MPa)
- Weight: 205g ±5g
- Dimensions: 54mm(L) × 34mm(W) × 28mm(H)
- Body material: Aluminum alloy (anodized finish)
- Seal material: HNBR rubber (-20℃ to 100℃)
- Roller diameter: 8mm (stainless steel bearing)
- Lever arm length: 25mm
- Response time: ≤0.5s mechanical actuation
- Protection rating: IP67 (dust/water resistant)
Robust mechanical valve with precision roller-lever mechanism designed for repetitive position sensing in harsh environments. Features anti-jam roller bearing and overstroke protection, with 500,000+ cycle durability. Requires 40μm filtered compressed air (ISO 8573-1 class 4).
Typical Applications:
- Pneumatic cylinder end-position detection
- Conveyor system object counting
- Packaging machine safety interlocks
- Automated assembly line sequencing
- Textile machinery thread break detection
Installation guidelines:
Mount with M4 screws (2.5Nm torque) perpendicular to actuator motion path.
Maintain 3-5mm gap between roller and trigger surface. Lubricate pivot point
quarterly with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | S3L-08 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
