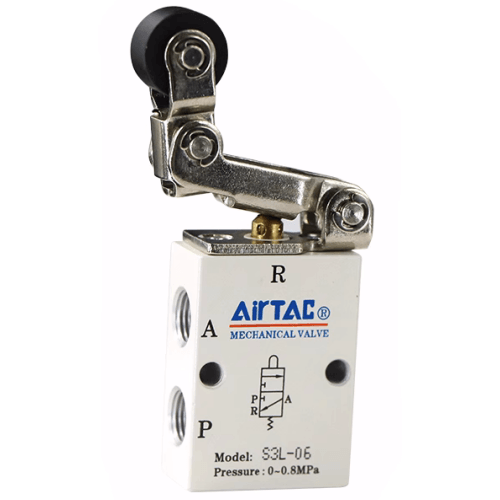

Airtac S3L One-way Roller Lever Type Mechanical Valve S3L-M5
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with diverse actuator configurations to accommodate varied operational conditions;
3. Poppet valve structure ensures excellent sealing performance, responsive directional switching, and maintenance-free operation (no lubrication required);
4. Multi-position installation capability for flexible integration and user convenience;
5. S3C, S3D, S3Y, S3R, and S3L series utilize metal actuators for superior durability and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: S3L
AirTAC S3L-M5 Unidirectional Roller Lever Mechanical Valve Specifications
- Model: S3L-M5
- Type: 3/2-way normally closed (mechanical actuation)
- Actuation method: Roller lever with 45° angular operation
- Port size: M5 (ISO 228 standard)
- Operating force: 0.5-5N adjustable
- Pressure range: 0.05-0.7 MPa
- Flow capacity: 250 NL/min (at 0.5 MPa)
- Body material: Nickel-plated brass
- Seal material: Heat-resistant NBR (70±2 Shore A)
- Temperature range: -5℃ to 80℃ (with intermittent peaks to 120℃)
- Cycle life: ≥1 million operations
- Protection rating: IP67 (dust/water resistant)
- Weight: 85g ±2g
- Dimensions: 38mm(L) × 25mm(W) × 54mm(H) (excluding lever protrusion)
Compact mechanical valve featuring a precision roller lever mechanism with tactile feedback. The chrome steel roller reduces friction wear by 40% compared to standard designs. Optimized for repetitive position detection in automated systems, with a self-cleaning contact design that resists dust accumulation. Requires 5-7μm filtered dry air.
- Conveyor belt position detection in packaging lines
- Safety door interlock systems in CNC machinery
- Cartesian robot end effector positioning
- Textile machinery thread tension control
- Automated assembly jig sequencing
Installation note:
Mount with lever arm perpendicular to actuation direction.
Adjust preload force using the hexagonal set screw (1.5mm Allen key required).
Maintain 0.3-0.5mm clearance between roller and trigger surface.
| Property | Property Value |
|---|---|
| sku | S3L-M5 |
| Position | 3-Port 2-Position |
| Port Size | M5 |
