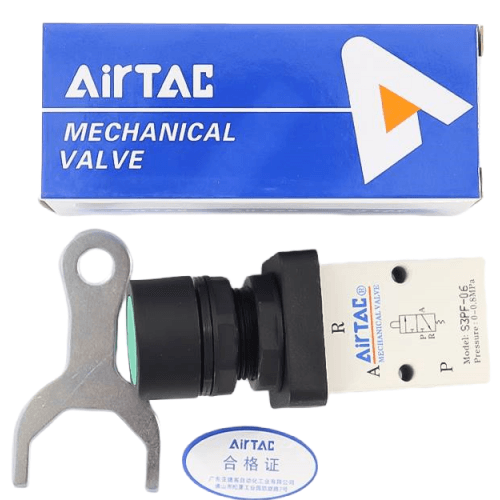

Airtac S3PF Flat Button Type Mechanical Valve S3PF-M5-B
$17.28
Regular price
$24.78
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
S3PF-M5-B
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The S3B, S3R, S3L, and S3V series require external actuation force for valve switching, making them suitable for position detection or limit switch applications;
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type
Installation note:
Apply 0.1-0.2Nm torque during M5 port connection. Use thread sealant only on male threads,
avoiding contamination of the 1.6mm diameter pilot orifice. For vertical mounting,
position exhaust port downward to prevent debris accumulation.
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type
AirTAC S3PF-M5-B Flat-head Push Button Mechanical Valve Specifications
- Model: S3PF-M5-B
- Type: 3/2-way normally closed (manual reset)
- Port size: M5 × 0.8 (G1/8 equivalent)
- Operating pressure: 0.05–0.7 MPa
- Actuation force: 3.5N ±0.5N
- Body material: Nickel-plated brass
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -5℃ to 80℃
- Installation orientation: Any (360° rotatable button)
- Weight: 30g ±2g
- Dimensions: 18mm(L) × 18mm(W) × 28.5mm(H)
- Port thread depth: 6.5mm
- Mechanical life: ≥500,000 cycles
- Protection rating: IP67 (dust/water resistant)
Ultra-compact manual override valve with tactile feedback, featuring a low-profile 3.5mm button travel distance. The chrome-plated brass stem ensures smooth operation even in high-humidity environments. Designed for direct panel mounting with integrated O-ring seal for leak prevention.
Typical Applications:
- Emergency stop systems in compact machinery
- Manual override for automated test equipment
- Pneumatic training panel components
- Mobile hydraulic service units
- Cleanroom equipment manual controls
Installation note:
Apply 0.1-0.2Nm torque during M5 port connection. Use thread sealant only on male threads,
avoiding contamination of the 1.6mm diameter pilot orifice. For vertical mounting,
position exhaust port downward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | S3PF-M5-B |
| Position | 3-Port 2-Position |
| Port Size | M5 |
