Airtac S3PF Flat Button Type Mechanical Valve S3PF06RG
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type

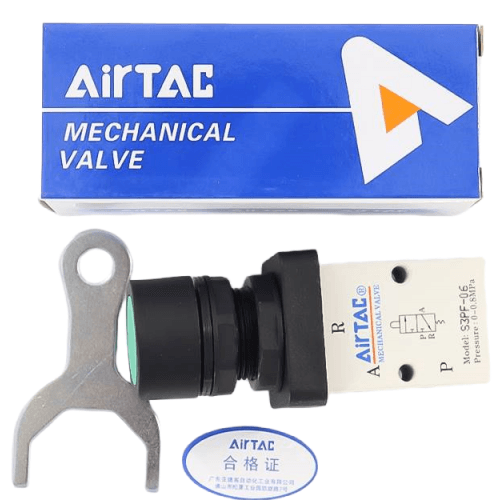

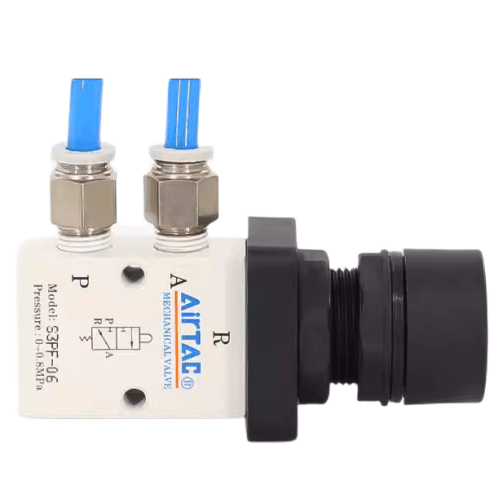

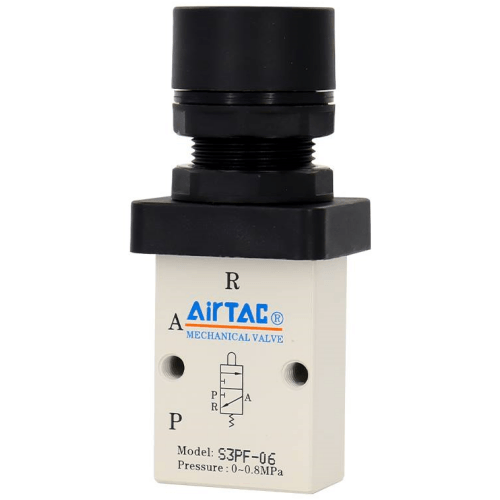

AirTAC S3PF06RG Flat-Head Push Button Mechanical Valve Specifications
- Model: S3PF06RG
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.1–0.8 MPa
- Flow capacity: 450 NL/min (at 0.5 MPa)
- Actuation force: 3.5 N (typical button press)
- Button stroke: 3.2 mm ±0.5mm
- Seal material: NBR (Nitrile rubber)
- Body material: PA66+GF25% (glass-reinforced nylon)
- Temperature range: -20℃ to 80℃ (non-freezing)
- Protection rating: IP67 (dust/water resistant)
- Weight: 118g ±3g
- Dimensions: 30mm(W) × 25mm(D) × 50mm(H)
- Mounting: Panel mounting (Ø16mm cutout required)
- Button color: Red (RAL 3000)
- Compliance: ISO 228-1 thread standard
Manual override valve with tactile feedback, featuring a low-profile design for space-constrained installations. The dual-seal structure prevents air leakage during prolonged pressurization. Includes integrated dust boot protection for the plunger mechanism. Compatible with ISO VG32 hydraulic oil environments.
- Emergency stop systems in production lines
- Manual cycle initiation in packaging machinery
- Tooling fixture clamping control
- Pneumatic system maintenance bypass
- Educational training equipment
- Semiconductor handling robots
Installation guidelines:
Apply 0.2-0.3 N·m torque during port connection. For vertical mounting,
orient button within ±15° of horizontal plane. Lubricate plunger monthly
with ISO VG15 equivalent grease in high-cycle applications.
Critical note:
Avoid side-loading the actuator button - maximum permissible lateral force
is 0.8N. Not recommended for vacuum applications below -0.6 bar.
| Property | Property Value |
|---|---|
| sku | S3PF06RG |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
