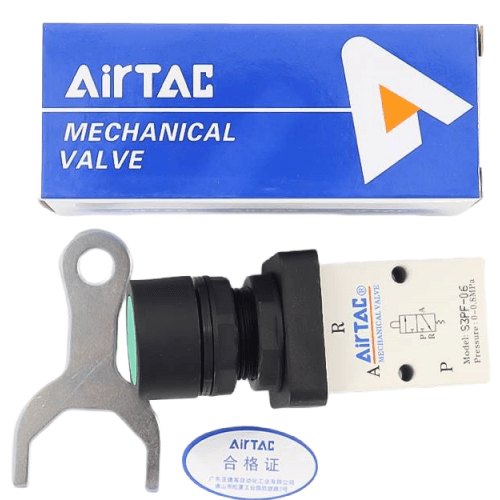

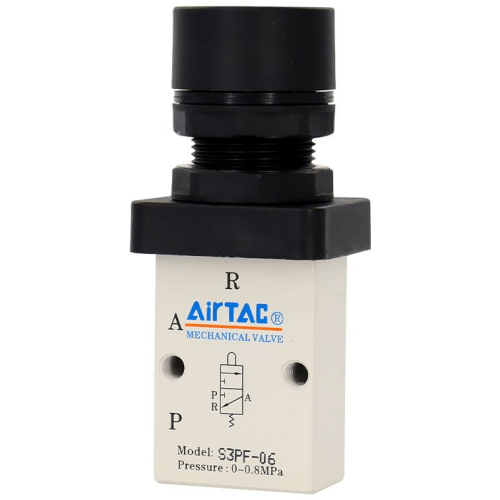

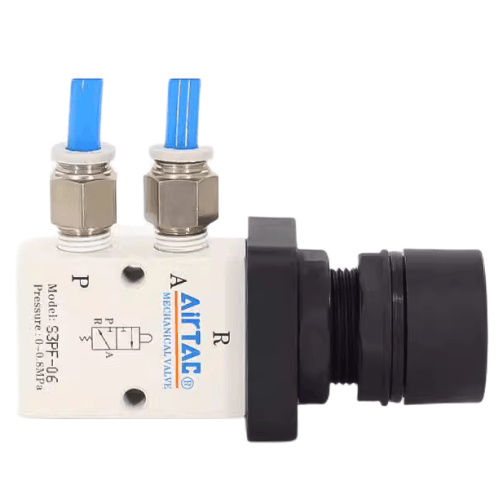

Airtac S3PF Flat Button Type Mechanical Valve S3PFM5R
$17.44
Regular price
$24.94
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
S3PFM5R
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The S3B, S3R, S3L, and S3V series require external actuation force for valve switching, making them suitable for position detection or limit switch applications;
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type
Installation guidelines:
Requires 2.5mm² minimum wiring for safety circuits. Perform monthly
functional tests with full-stroke actuation to prevent
contact oxidation. Compatible with 1.5-2.5mm thick panels.
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type
AirTAC S3PFM5R Flat-head Push Button Mechanical Valve Specifications
- Model: S3PFM5R
- Type: 3/2-way normally closed (manual reset)
- Port size: M5 (PT1/8 equivalent)
- Operating pressure: 0.05–0.7 MPa
- Actuation force: 2.5N ±0.5N
- Flow capacity: 120 L/min (at 0.5 MPa)
- Response time: ≤50ms
- Mechanical life: ≥1,000,000 cycles
- Weight: 85g ±3g
- Dimensions: 38mm(L) × 25mm(W) × 42mm(H)
- Body material: PA66+30%GF (UL94 V-0 rated)
- Seal material: HNBR rubber (-20℃ to 120℃)
- Protection rating: IP67 (dust/water resistant)
- Mounting: Direct panel mounting (Ø16mm cutout)
Emergency-stop mechanical valve with tactile feedback, featuring a low-profile design for space-constrained installations. The mushroom head actuator meets ISO 13850 safety standards with 35mm diameter red/yellow dual-color cap. Integrated mechanical lock prevents accidental resetting.
Typical Applications:
- Emergency stop circuits in CNC machinery
- Safety interlocks for automated production lines
- Robotic cell access control systems
- Packaging equipment emergency release
- Elevator door safety mechanisms
Installation guidelines:
Requires 2.5mm² minimum wiring for safety circuits. Perform monthly
functional tests with full-stroke actuation to prevent
contact oxidation. Compatible with 1.5-2.5mm thick panels.
Safety Compliance:
Meets CE, ISO 1219, and EN 60947-5-5 standards.
Must be integrated with Category 3/PLd safety systems.
| Property | Property Value |
|---|---|
| sku | S3PFM5R |
| Position | 3-Port 2-Position |
| Port Size | M5 |
