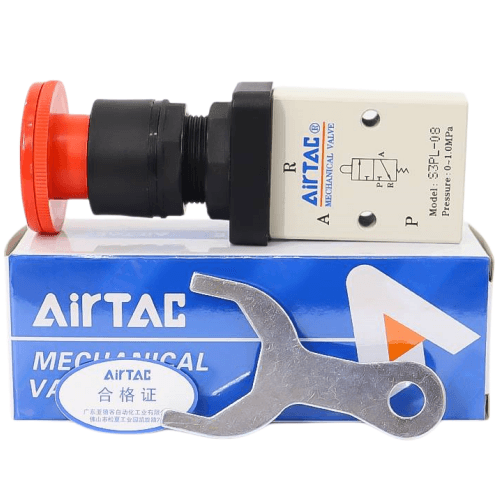

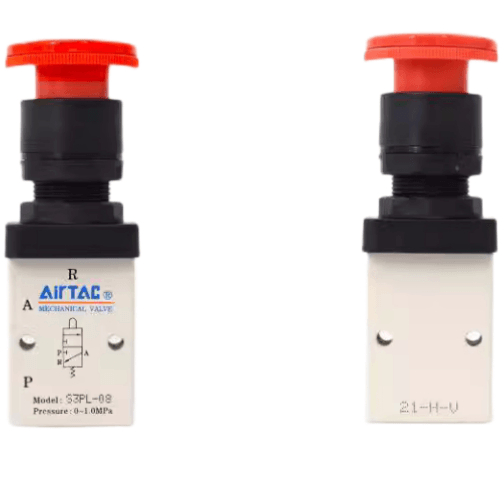

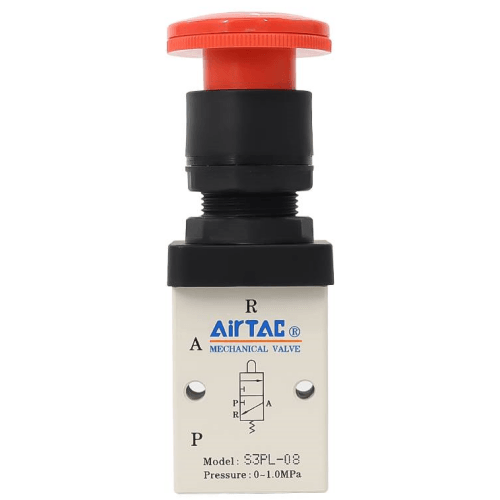

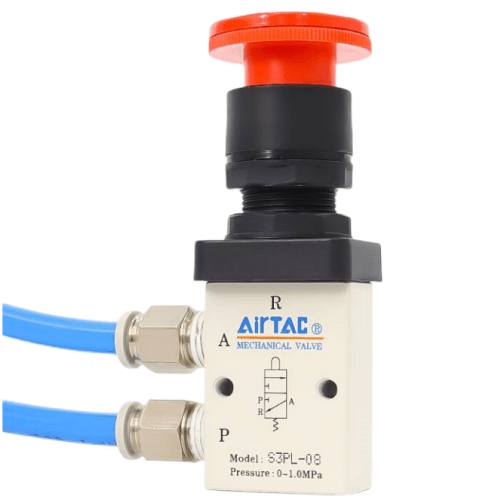

Airtac S3PL Parking Rotary Button Type Mechanical Valve S3PL-M5
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multiple actuator head configurations for versatile installation under diverse conditions;
3. Poppet valve design ensures excellent sealing performance, responsive directional switching, and maintenance-free lubrication;
4. Flexible multi-position mounting capability with simplified installation procedures;
5. Metallic actuator heads on S3C, S3D, S3Y, S3R, and S3L series deliver enhanced durability and operational stability.
Category: Mechanical Valves , Brand: AirTAC , Series: S3PL Stationary Rotary Pushbutton Mechanical Valve
AirTAC S3PL-M5 Docking Rotary Button Mechanical Valve Specifications
- Model: S3PL-M5
- Type: 3-position closed-center mechanical valve (push-pull rotary operation)
- Port size: M5×0.8 (dual ports)
- Operating pressure: 0.1–0.8 MPa (14.5–116 PSI)
- Flow capacity: 250 NL/min (ANR)
- Operating temperature: -5℃ to 60℃ (no freezing)
- Body material: Anodized aluminum alloy
- Seal material: NBR (nitrile rubber)
- Actuation force: ≤3.5 N (rotary torque)
- Mechanical life: ≥500,000 cycles
- Weight: 180g ±5%
- Dimensions: 60mm(L) × 30mm(W) × 40mm(H)
- Mounting: Panel mount with M5×12 mounting screws
Manual override valve with tactile positioning feedback, featuring a corrosion-resistant aluminum body and positive detent mechanism. The 90° rotary button allows precise flow control with three distinct positions (center closed). Integrated O-ring seals prevent accidental rotation during vibration.
- Emergency stop override in automated production lines
- Manual mode selection for pneumatic testing equipment
- Process control in cleanroom environments (no electrical components)
- Mobile hydraulic/pneumatic hybrid systems
- Educational training rigs for fluid power systems
Installation notes:1. Align flow direction arrow with system requirements
2. Use thread sealant on M5 ports (PTFE tape not recommended)
3. For vertical mounting, ensure button rotation plane aligns with operator access
4. Lubricate rotating shaft with silicone grease every 6 months in continuous use
| Property | Property Value |
|---|---|
| sku | S3PL-M5 |
| Position | 3-Port 2-Position |
| Port Size | M5 |
