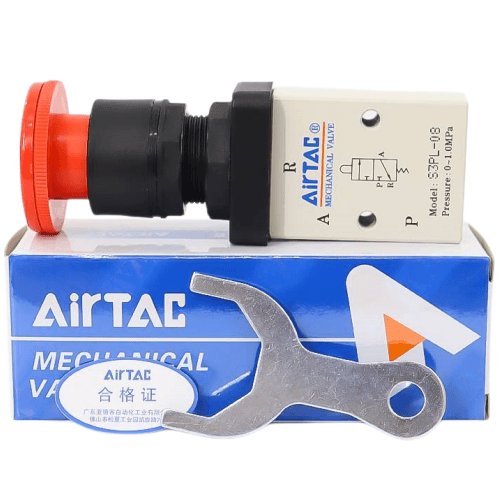

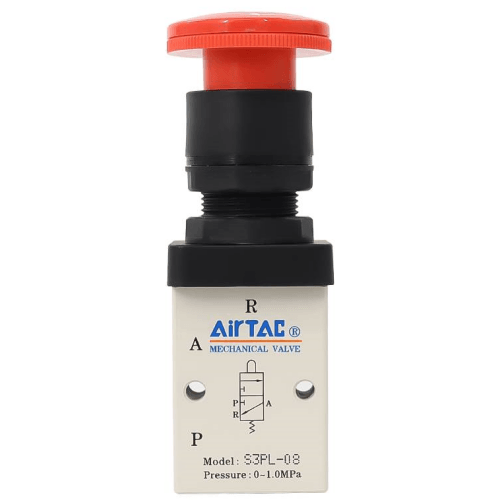

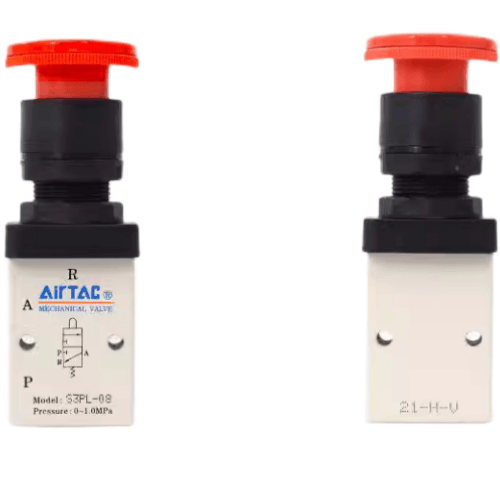

Airtac S3PL Parking Rotary Button Type Mechanical Valve S3PL05-P12A
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multiple actuator head configurations for versatile installation under diverse conditions;
3. Poppet valve design ensures excellent sealing performance, responsive directional switching, and maintenance-free lubrication;
4. Flexible multi-position mounting capability with simplified installation procedures;
5. Metallic actuator heads on S3C, S3D, S3Y, S3R, and S3L series deliver enhanced durability and operational stability.
Category: Mechanical Valves , Brand: AirTAC , Series: S3PL Stationary Rotary Pushbutton Mechanical Valve
AirTAC S3PL05-P12A Parking Rotary Button Mechanical Valve Specifications
- Model: S3PL05-P12A
- Type: 3-position closed-center detented rotary valve (manual operation)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -5℃ to 80℃
- Flow capacity: 750 L/min (ANR)
- Rotation torque: ≤0.5 N·m
- Mounting style: Sub-base or direct piping
- Body material: Anodized aluminum alloy
- Seal material: HNBR rubber (high nitrile)
- Weight: 480g ±5%
- Dimensions: 76mm(L) × 52mm(W) × 82mm(H)
- Surface treatment: Chromate conversion coating
- Port thread depth: 12mm
Manual detented valve with positive-center parking function, featuring tactile position feedback through 60° rotation arc. The chrome-plated steel shaft and double O-ring design ensure smooth operation and zero leakage. Compatible with ISO 15407-1 standards, ideal for systems requiring manual override or emergency control.
- Production line emergency stop systems
- Pneumatic training equipment
- Hydraulic system pilot controls
- Agricultural machinery manual override
- Test bench pressure selection
Installation note:
Apply silicone-free grease to rotating shaft during maintenance.
Maximum lateral piping load: 15N. For vertical mounting,
ensure exhaust ports face downward to prevent debris ingress.
| Property | Property Value |
|---|---|
| sku | S3PL05-P12A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
