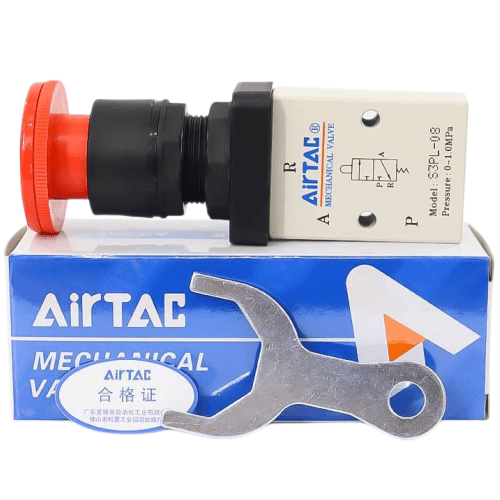

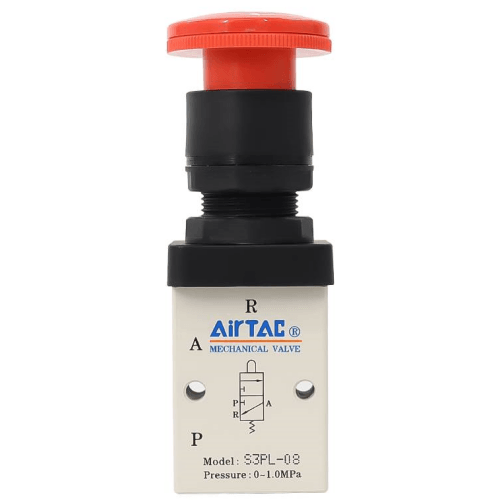

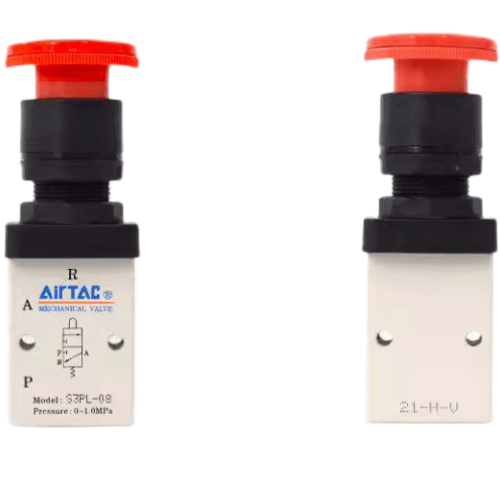

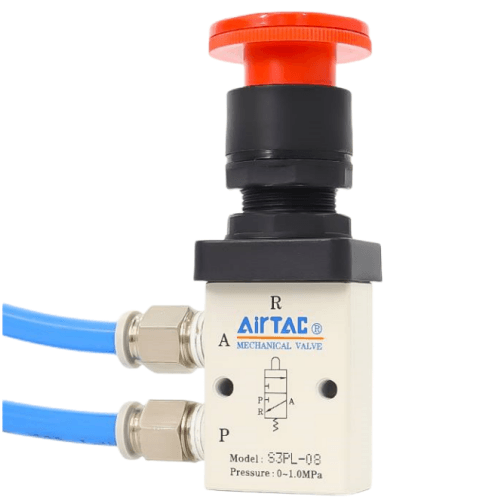

Airtac S3PL Parking Rotary Button Type Mechanical Valve S3PL08G
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multiple actuator head configurations for versatile installation under diverse conditions;
3. Poppet valve design ensures excellent sealing performance, responsive directional switching, and maintenance-free lubrication;
4. Flexible multi-position mounting capability with simplified installation procedures;
5. Metallic actuator heads on S3C, S3D, S3Y, S3R, and S3L series deliver enhanced durability and operational stability.
Category: Mechanical Valves , Brand: AirTAC , Series: S3PL Stationary Rotary Pushbutton Mechanical Valve
AirTAC S3PL08G Parking Rotary Button Type Mechanical Valve Specifications
- Model: S3PL08G
- Type: 3-position (Parking) Rotary Mechanical Valve
- Port configuration: 5 ports (P, A, B, R1, R2)
- Port size: PT1/4 (G1/8 optional)
- Operating pressure: 0.2–0.8 MPa
- Rotation torque: ≤1.5 N·m
- Body material: Anodized aluminum alloy (hard coating)
- Seal material: HNBR (Hydrogenated Nitrile) for high temperature resistance
- Operating temperature: -10℃ to 120℃ (with HNBR seals)
- Weight: 280g ±5g
- Dimensions: 56mm(L) × 42mm(W) × 68mm(H)
- Mounting pattern: ISO 15407-1 compliant
- Actuation type: Manual rotary with positive detent positions
- Cycle life: ≥500,000 rotations
- Protection rating: IP67 (dustproof and waterproof)
Heavy-duty mechanical valve featuring a unique parking position mechanism for mid-stroke pause control. The triple-sealed rotary shaft with stainless steel bearings ensures smooth operation in high-vibration environments. Designed for manual override applications requiring intermediate position locking, with visible position indicators for status confirmation.
- Emergency stop systems in packaging machinery
- Position holding in textile equipment thread guides
- Manual mode override in automated assembly lines
- Safety interlocks for maintenance operations
- Mobile hydraulic equipment control stations
Installation note:
Lubricate shaft monthly with ISO VG32 hydraulic oil. Ensure arrow markings align with flow direction.
Maximum allowable side load on handle: 30N. Compatible with ISO 8573-1 class 3 compressed air.
| Property | Property Value |
|---|---|
| sku | S3PL08G |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
