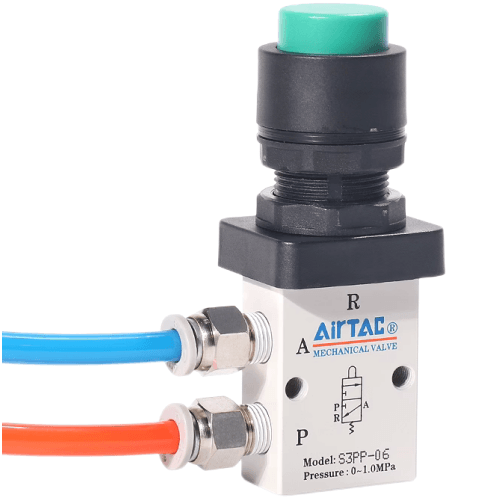

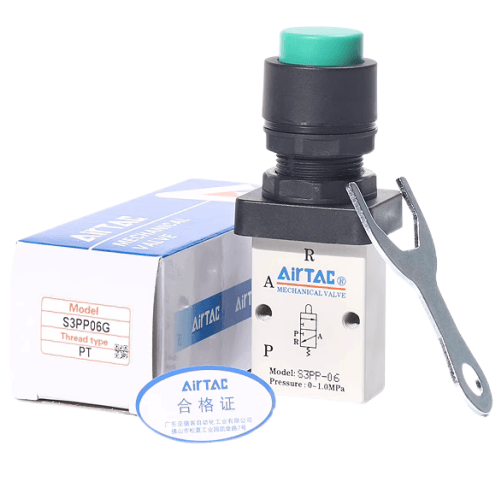

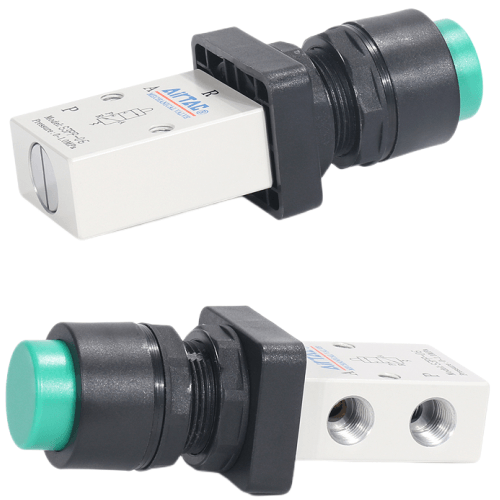

Airtac S3PP Convex Head Push-button Mechanical Valve S3PP06G
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with diversified actuator head configurations to accommodate varied application requirements.
3. Equipped with a poppet valve structure for excellent sealing performance, these valves ensure smooth directional switching without requiring lubrication.
4. Supports multi-position mounting orientations for simplified integration and operational flexibility.
5. Robust metal actuator heads in S3C, S3D, S3Y, S3R, and S3L series enhance longevity and deliver reliable, stable performance in demanding environments.
Category: Mechanical Valves | Brand: Airtac | Series: S3PP
AirTAC S3PP06G Push Button Mechanical Valve Technical Details
- Model: S3PP06G
- Type: 3/2-way normally closed (manual reset)
- Operation method: Mechanical push-button actuation
- Port size: PT1/8 (G1/8 optional)
- Thread standard: BSPP/BSPT/NPT selectable
- Operating pressure: 0.05–0.7 MPa
- Max flow rate: 350 NL/min
- Body material: Anodized aluminum alloy
- Seal material: HNBR (Heat-resistant nitrile)
- Button stroke: 3.5±0.5mm
- Operating force: ≤5N
- Temperature range: -10℃ to 80℃ (with silicone seals: -20℃ to 150℃)
- Weight: 180±5g
- Dimensions: 54mm(L) × 36mm(W) × 38mm(H)
- Port spacing: 18mm center-to-center
- Mounting options: Panel mount or direct piping
Robust manual override valve with tactile feedback, featuring anti-vibration lock mechanism and IP67 protection. The ergonomic convex button design allows operation with gloves. Includes built-in silencer (noise level <65dB) and optional position indicator light. Compatible with ISO 15407-1 standards.
- Emergency stop systems in assembly lines
- Manual override for automated machinery
- Pneumatic training equipment controls
- Food processing manual safety releases
- Mobile hydraulic platform emergency controls
Installation guidance:
For vertical mounting, ensure exhaust port faces downward. Apply thread sealant
(PTFE tape recommended) on male threads only. Max torque 2.5N·m during installation.
Regular lubrication (ISO VG32) required every 50,000 cycles.
| Property | Property Value |
|---|---|
| sku | S3PP06G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
