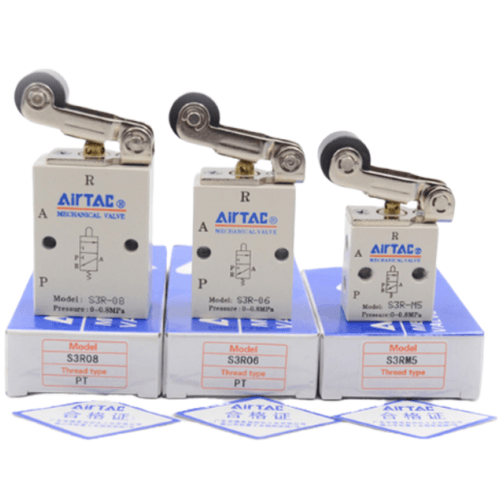

Airtac S3R Roller Lever Type Mechanical Valve S3R06G
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with diversified control head configurations to accommodate varied operating conditions.
3. Poppet-type design ensures excellent sealing performance, smooth switching operation, and maintenance-free lubrication.
4. Multi-position mounting options enable flexible installation and system integration.
5. S3C, S3D, S3Y, S3R, and S3L series incorporate metal control heads for extended service life, enhanced reliability, and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: S3R Roller Lever Type

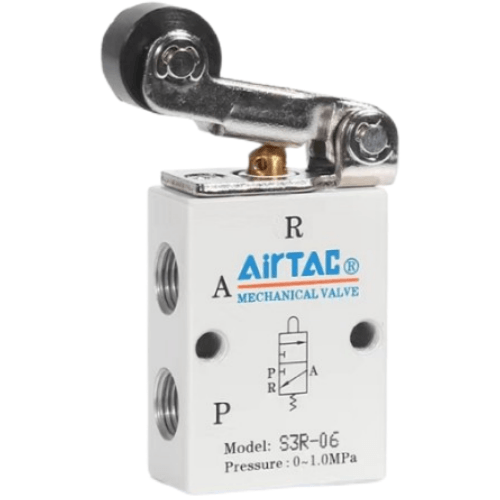

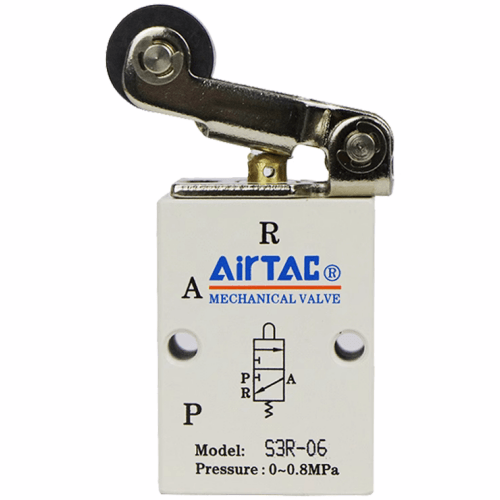

AirTAC S3R Roller Lever Mechanical Valve S3R06G Technical Details
- Model: S3R06G (Roller Lever Series)
- Valve type: 3/2-way normally closed (mechanical actuation)
- Port thread: PT1/8 (G1/8 optional)
- Operating pressure range: 0.05–0.7 MPa
- Lever type: Adjustable roller lever with 2mm stroke
- Body material: Anodized aluminum alloy (black oxide finish)
- Seal material: High-wear resistance NBR rubber
- Temperature tolerance: -10℃ to 80℃
- Actuation force: 1.5N±0.3N at roller contact point
- Mounting style: Direct panel mounting with M5 screws
- Protection class: IP67 (dust/water resistant)
- Weight: 220g ±5g
- Dimensions: 54mm(L) × 38mm(W) × 72mm(H)
Mechanically operated valve featuring a precision-engineered roller lever mechanism for smooth tactile feedback. The chrome-plated steel roller minimizes friction wear during repeated actuation, while the dual-spring return system ensures reliable position reset. Optimized for high-cycle applications requiring ≥500,000 operations.
- Conveyor belt position detection systems
- Cartesian robot end effector safety interlocks
- Packaging machine product presence verification
- Automated assembly line workpiece positioning
- Elevator door safety mechanisms
Installation guidelines:
Mount lever axis parallel to machine motion direction. Lubricate roller bearing
quarterly with ISO VG32 hydraulic oil. Maintain 2-3mm clearance between lever
tip and actuator plate for optimal performance.
| Property | Property Value |
|---|---|
| sku | S3R06G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
