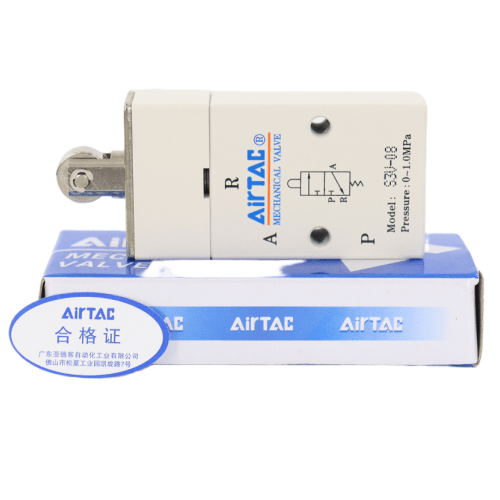

Airtac S3V Vertical Roller Lever Mechanical Valve S3V05-P14A
1. The S3B, S3R, S3L, and S3V series require externally provided actuation force for directional switching, suitable for position sensing or limit switch applications;
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with ergonomic actuator configurations, optimized for diverse application scenarios;
3. Poppet-style design ensures superior sealing performance, positive spool switching, and maintenance-free operation (no lubrication required);
4. Multi-position mounting options with simplified installation procedures;
5. S3C, S3D, S3Y, S3R, and S3L series incorporate durable metal actuators for enhanced longevity and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: S3V
AirTAC S3V Vertical Roller Type Mechanical Valve S3V05-P14A Specifications
- Model: S3V05-P14A
- Type: 3-position closed-center roller lever valve
- Operation: Mechanical actuation (vertical roller)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.05–0.9 MPa
- Max flow rate: 850 L/min (ANR)
- Actuation force: 5N±30%
- Temperature range: -5℃ to 80℃
- Body material: Aluminum alloy (anodized finish)
- Seal material: Heat-resistant NBR
- Weight: 320g ±5%
- Dimensions: 52mm(W) × 42mm(H) × 88mm(L)
- Mounting: Direct piping or sub-base mounting
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥1,000,000 operations
Heavy-duty mechanical valve with vertical roller actuator designed for precise position detection in harsh environments. Features a unique dual-spring centering mechanism for reliable reset and anti-vibration design. The low-friction roller reduces actuator wear, making it ideal for high-frequency applications. Requires ISO 8573-1 class 3 or cleaner compressed air.
- Assembly line positioning sensors
- Palletizing robot end-effector controls
- Food processing equipment (washdown environments)
- Automated guided vehicle (AGV) docking systems
- Textile machinery thread tension control
Installation note:
Ensure roller arm alignment within ±3° of actuation direction. Lubricate roller bearings every 2,000 operating hours using ISO VG32 hydraulic oil. Avoid side-load forces exceeding 15N on actuator arm.
| Property | Property Value |
|---|---|
| sku | S3V05-P14A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
