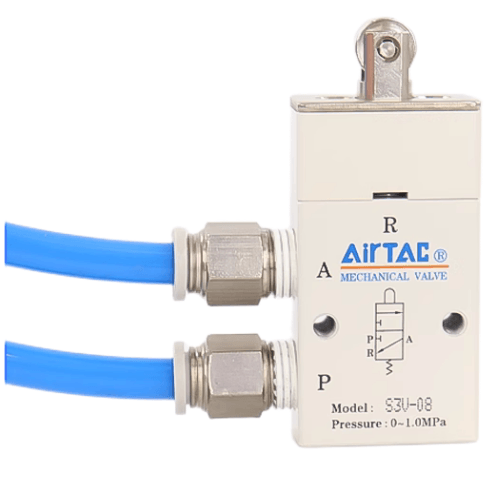

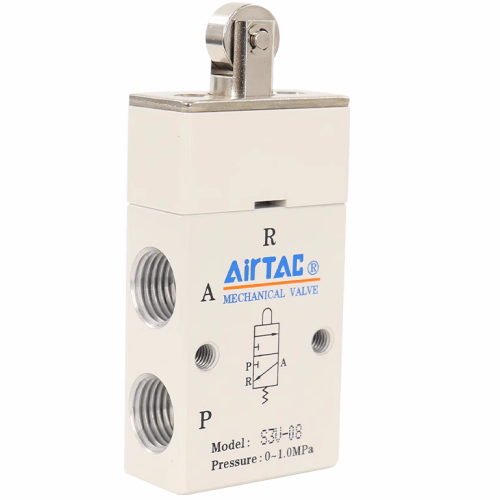

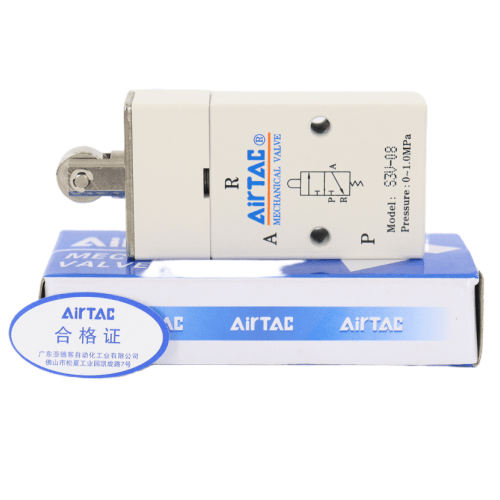

Airtac S3V Vertical Roller Lever Mechanical Valve S3V06-P14A
1. The S3B, S3R, S3L, and S3V series require externally provided actuation force for directional switching, suitable for position sensing or limit switch applications;
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with ergonomic actuator configurations, optimized for diverse application scenarios;
3. Poppet-style design ensures superior sealing performance, positive spool switching, and maintenance-free operation (no lubrication required);
4. Multi-position mounting options with simplified installation procedures;
5. S3C, S3D, S3Y, S3R, and S3L series incorporate durable metal actuators for enhanced longevity and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: S3V
AirTAC S3V Vertical Roller Type Mechanical Valve S3V06-P14A Specifications
- Model: S3V06-P14A
- Type: 3/2-way normally closed (mechanical roller actuation)
- Port size: PT1/4 (G1/8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Flow capacity: 750 L/min (Cv=0.52)
- Actuation force: 3.5N±0.5N at roller tip
- Operating temperature: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: Heat-resistant NBR (HNBR)
- Body material: Anodized aluminum alloy
- Weight: 215g±5g
- Dimensions: 50mm(L) × 40mm(W) × 25mm(H)
- Response time: ≤20ms (actuation to full flow)
- Mounting orientation: Vertical operation required (±5° tolerance)
- Protection rating: IP67 (dust/water resistant)
Mechanically operated valve with roller arm for position sensing and machine safety applications. Features wear-resistant tungsten carbide roller bearing and gold-plated contacts for 1 million+ cycle durability. Optimized for cam follower or mechanical arm activation in dirty environments. Includes built-in silencer (35dB noise reduction).
- Safety door interlocks in injection molding machines
- Position verification in automated assembly lines
- Material handling equipment limit switches
- Packaging machine jam detection systems
- Robotic arm end effector position feedback
Installation note:
Mount with roller arm perpendicular to actuator motion path.
Lubricate roller bearing every 5,000km of travel distance using
ISO VG32 hydraulic oil. Maintain 0.5-1mm overtravel for reliable switching.
| Property | Property Value |
|---|---|
| sku | S3V06-P14A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
