Airtac S3V Vertical Roller Lever Mechanical Valve S3V08
1. The S3B, S3R, S3L, and S3V series require externally provided actuation force for directional switching, suitable for position sensing or limit switch applications;
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with ergonomic actuator configurations, optimized for diverse application scenarios;
3. Poppet-style design ensures superior sealing performance, positive spool switching, and maintenance-free operation (no lubrication required);
4. Multi-position mounting options with simplified installation procedures;
5. S3C, S3D, S3Y, S3R, and S3L series incorporate durable metal actuators for enhanced longevity and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: S3V

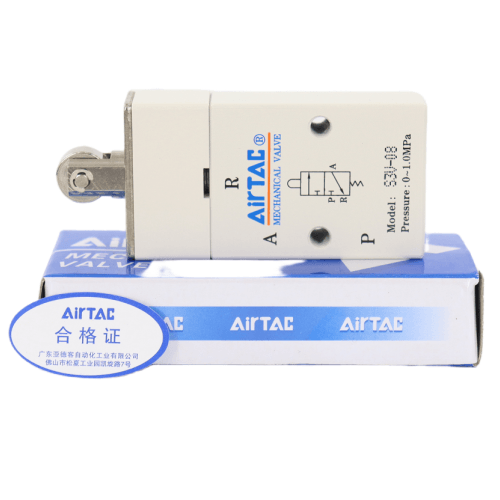

AirTAC S3V Vertical Roller Type Mechanical Valve S3V08 Specifications
- Model: S3V08
- Type: 3/2-way normally closed (mechanical roller actuation)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.8 MPa (14.5–116 PSI)
- Flow capacity: 200 L/min (ANR) at 0.5 MPa
- Actuation force: ≤3.5N (roller stroke: 2.5±0.5mm)
- Reset force: ≥1.5N
- Seal material: NBR (Nitrile rubber)
- Body material: Aluminum alloy (anodized surface)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 180±5g
- Dimensions: 50mm(L) × 30mm(W) × 55mm(H)
- Protection rating: IP65 (dust-tight & water jet resistant)
- Mechanical life: ≥10 million cycles
Vertical roller-actuated mechanical valve with precision cam-follower mechanism, designed for position detection and pneumatic signal conversion in harsh environments. Features stainless steel roller shaft, wear-resistant PTFE guide bushings, and dual O-ring sealing. Requires ISO 8573-1 class 3.4.2 compressed air (max particle size 5μm).
- Conveyor belt position sensing in packaging lines
- Safety door interlocks in automated machinery
- Workpiece presence detection in CNC loaders
- Cartesian robot end-stop triggering
- Textile machinery thread break detection
Installation note:
Mount vertically with roller axis perpendicular to actuation direction.
Maintain 5mm clearance for roller movement and lubricate monthly with
ISO VG32 turbine oil. Avoid side-load forces exceeding 15N.
| Property | Property Value |
|---|---|
| sku | S3V08 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
