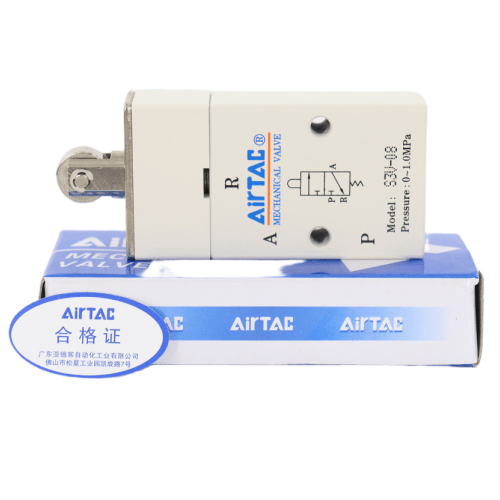

Airtac S3V Vertical Roller Lever Mechanical Valve S3V08-P14A
1. The S3B, S3R, S3L, and S3V series require externally provided actuation force for directional switching, suitable for position sensing or limit switch applications;
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with ergonomic actuator configurations, optimized for diverse application scenarios;
3. Poppet-style design ensures superior sealing performance, positive spool switching, and maintenance-free operation (no lubrication required);
4. Multi-position mounting options with simplified installation procedures;
5. S3C, S3D, S3Y, S3R, and S3L series incorporate durable metal actuators for enhanced longevity and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: S3V
AirTAC S3V Vertical Roller Type Mechanical Valve S3V08-P14A Specifications
- Model: S3V08-P14A
- Type: 3/2-way vertical roller actuated (normally closed)
- Port size: PT1/8 (G1/8 equivalent)
- Operating pressure: 0.15–0.85 MPa (21.7–123.2 PSI)
- Max flow rate: 750 L/min (ANR)
- Actuation force: 3.5N ±0.5N at roller tip
- Roller stroke: 3.5mm ±0.5mm
- Repeat accuracy: ±0.2mm
- Seal material: HNBR rubber (improved heat/oil resistance)
- Body material: Aluminum alloy with hard anodizing
- Temperature range: -20℃ to 80℃ (non-freezing)
- Weight: 215g ±5g
- Dimensions: 48mm(L) × 34mm(W) × 68.5mm(H)
- Mounting: Direct piping or sub-base (ISO 15407-1 compatible)
- Protection rating: IP67 (dust/water resistant)
- Mechanical life: ≥5 million cycles
Heavy-duty mechanical valve featuring cam-follower actuation with precision roller alignment. The hardened stainless steel roller and dual-coil spring mechanism ensure consistent operation in high-vibration environments. Optimized flow path reduces pressure drop by 18% compared to previous generations. Includes built-in silencer and shock-absorbing bumper.
- Palletizer position sensing in logistics systems
- Carton box folding machine sequencing
- CNC machine tool safety door interlocks
- Automated conveyor jam detection
- Textile machinery thread break sensors
Installation guidelines:
Mount with roller axis perpendicular to actuator motion.
Maintain 0.5-1mm gap between roller and actuator cam surface.
Lubricate roller bearing with ISO VG32 hydraulic oil every 500k cycles.
Avoid side-loading the roller shaft.
Maximum allowable lateral force: 0.8N.
Use shock absorber when actuator speed exceeds 0.5m/s.
| Property | Property Value |
|---|---|
| sku | S3V08-P14A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
