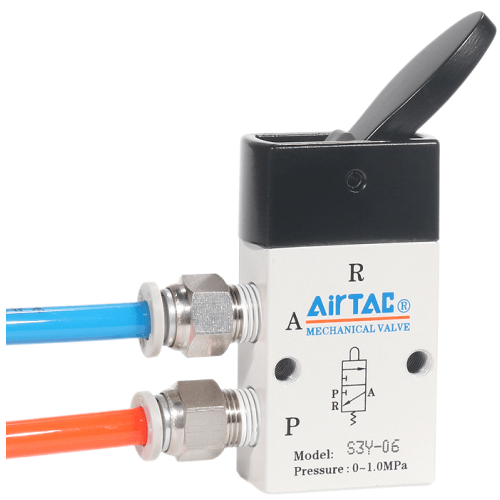

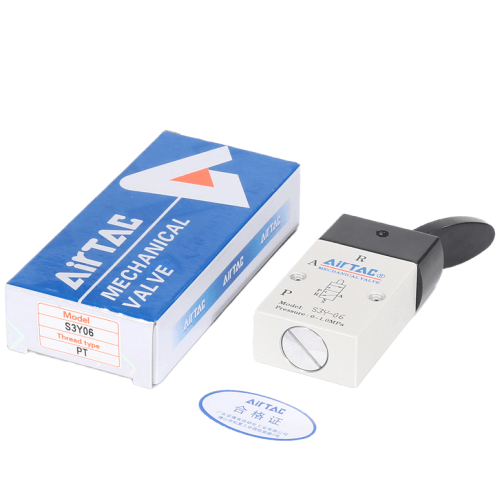

Airtac S3Y Rocker Arm Type Mechanical Valve S3Y-06
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual override operation with multiple ergonomic actuator head configurations for versatile application adaptability;
3. Poppet-type valve design ensures excellent sealing performance, smooth actuation, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability enables flexible installation and simplified system integration;
5. Metal actuator heads on S3C, S3D, S3Y, S3R, and S3L series provide enhanced durability, reliability, and stable performance in demanding environments.
Category: Mechanical Valves , Brand: Airtac , Series: S3Y Rocker Arm Type
AirTAC S3Y-06 Rocker Arm Mechanical Valve Specifications
- Model: S3Y-06
- Type: 3-position (Lever-operated detent type)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.1–0.8 MPa
- Max flow capacity: 2000 NL/min
- Operation method: Manual lever with mechanical lock
- Body material: Aluminum alloy (anodized finish)
- Seal material: NBR (Nitrile rubber)
- Temperature range: -5℃ to 60℃ (with NBR seals)
- Weight: 215g ±5g
- Dimensions: 54mm(W) × 48mm(H) × 75mm(D)
- Mounting: Panel mounting (requires 16mm mounting hole)
- Lever operation angle: 30° ±2° per position
- Port thread depth: 12mm (minimum engagement)
Heavy-duty mechanical valve with positive center position locking mechanism, featuring tactile feedback through precision-machined ball detent system. The zinc-plated steel lever provides 500,000+ cycle durability. Includes built-in silencer for exhaust ports and anti-vibration mounting design.
- Emergency stop circuits in pneumatic systems
- Manual override for automated production lines
- Material handling equipment direction control
- Test bench pressure regulation
- Clamping fixture activation in CNC machines
- Position locking in assembly jigs
Maintenance note:
Apply silicone-free grease (ISO VG32 equivalent) to lever pivot point every
6 months. Ensure exhaust ports face downward when vertical mounting isn't possible.
| Property | Property Value |
|---|---|
| sku | S3Y-06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
