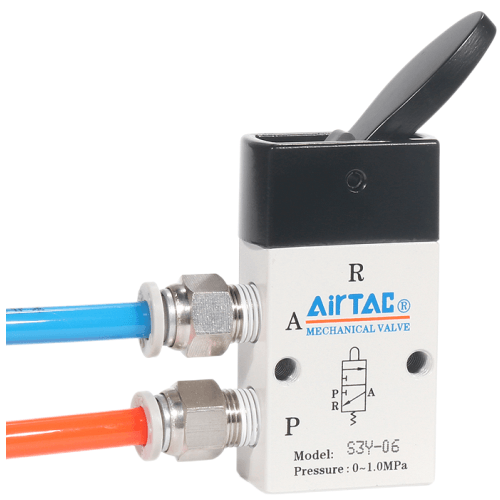

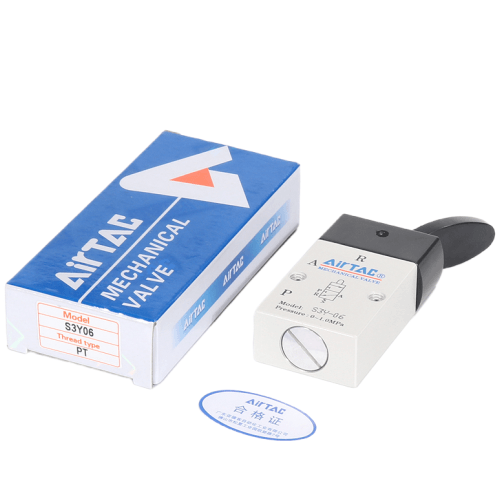

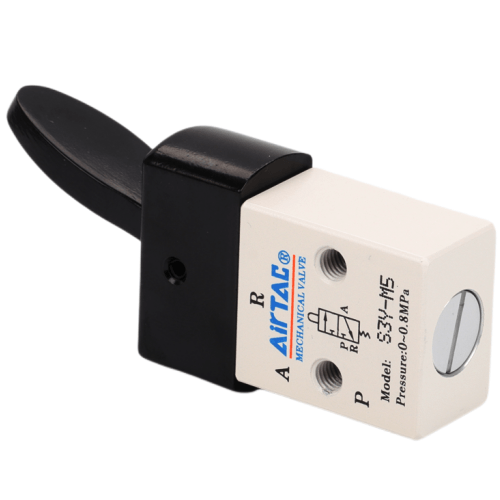

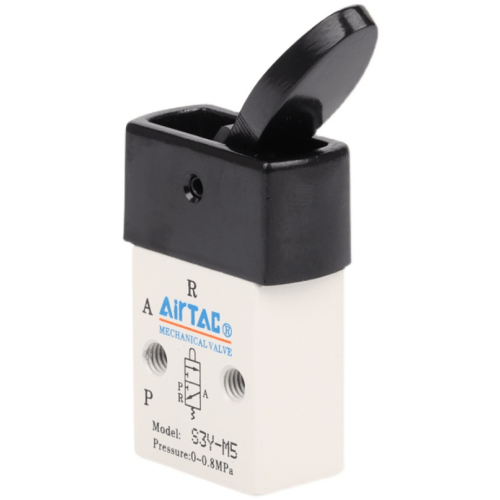

Airtac S3Y Rocker Arm Type Mechanical Valve S3Y-M5
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual override operation with multiple ergonomic actuator head configurations for versatile application adaptability;
3. Poppet-type valve design ensures excellent sealing performance, smooth actuation, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability enables flexible installation and simplified system integration;
5. Metal actuator heads on S3C, S3D, S3Y, S3R, and S3L series provide enhanced durability, reliability, and stable performance in demanding environments.
Category: Mechanical Valves , Brand: Airtac , Series: S3Y Rocker Arm Type
AirTAC S3Y Rocker-Type Mechanical Valve S3Y-M5 Technical Details
- Model: S3Y-M5 (Manual Reset Version)
- Type: 3/2-way normally closed mechanical valve
- Actuation: Lever-operated with positive position lock
- Port configuration: M5 threaded (ISO 15407-1 compliant)
- Operating pressure: 0.1–0.7 MPa (14.5–101.5 PSI)
- Max flow rate: 350 NL/min @ 0.5 MPa
- Weight: 120g ±5% (excluding actuator)
- Dimensions: 45mm(L) × 25mm(W) × 40mm(H) (body only)
- Mounting spacing: 30mm center-to-center for manifold installation
- Seal material: HNBR (Hydrogenated Nitrile) for oil resistance
- Temperature range: -20℃ to 80℃ (non-freezing conditions)
- Housing material: Anodized aluminum alloy (black oxide finish)
- Mechanical life: ≥500,000 cycles (under rated conditions)
Manual override valve with tactile feedback lever, designed for emergency stop systems and maintenance bypass operations. Features a dual-spring reset mechanism for positive sealing and anti-vibration lock design. The hardened stainless steel shaft ensures wear resistance in high-cycle applications. Compatible with ISO 15407-1 modular valve systems.
- Production line emergency stop circuits
- Pneumatic fixture manual override control
- Mobile machinery safety interlocks
- Packaging equipment jam recovery systems
- Robotic cell maintenance mode activation
Installation guidelines:
Mount with 0.5-0.6 N·m torque using M5×16mm screws. Lubricate pivot point
with ISO VG32 hydraulic oil during annual maintenance. Avoid lateral forces
exceeding 15N on the actuator lever.
Critical note:
Not suitable for vacuum applications. Always install downstream filter
(5μm minimum) when used with lubricated air systems. Lever position
indicator must remain visible after installation.
| Property | Property Value |
|---|---|
| sku | S3Y-M5 |
| Position | 3-Port 2-Position |
| Port Size | M5 |
