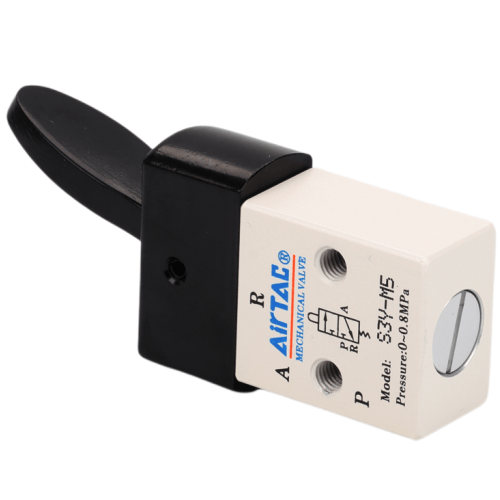

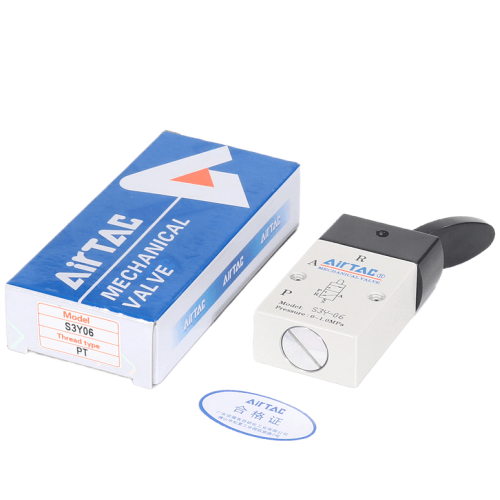

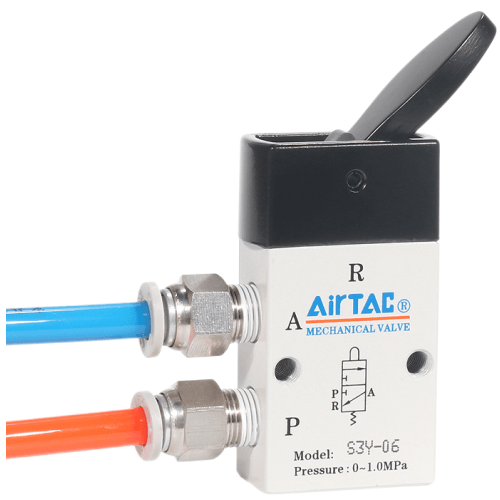

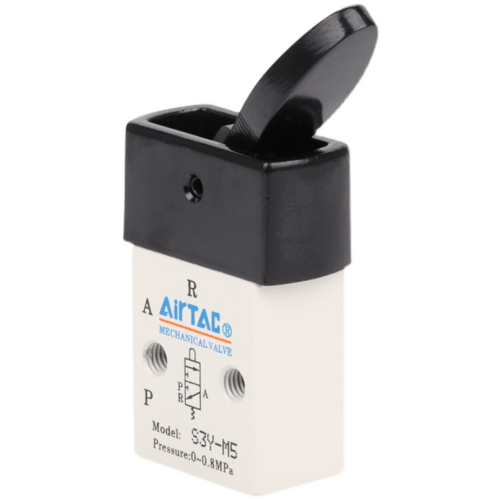

Airtac S3Y Rocker Arm Type Mechanical Valve S3Y08G
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual override operation with multiple ergonomic actuator head configurations for versatile application adaptability;
3. Poppet-type valve design ensures excellent sealing performance, smooth actuation, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability enables flexible installation and simplified system integration;
5. Metal actuator heads on S3C, S3D, S3Y, S3R, and S3L series provide enhanced durability, reliability, and stable performance in demanding environments.
Category: Mechanical Valves , Brand: Airtac , Series: S3Y Rocker Arm Type
AirTAC S3Y08G Rocker Arm Mechanical Valve Specifications
- Model: S3Y08G
- Type: 3-position (3P) / 2-way manual rocker valve
- Port size: G1/8 (ISO228 standard)
- Operating pressure: 0.1–0.7 MPa
- Max flow rate: 450 L/min (ANR)
- Temperature range: -5℃ to 80℃
- Valve body material: Aluminum alloy (surface anodized)
- Seal material: NBR (nitrile rubber)
- Actuation force: ≤3.5N @ 0.5MPa
- Mounting style: Panel mount with M5 fasteners
- Weight: 220g ±5g
- Dimensions: 58mm(W) × 42mm(H) × 36mm(D)
- Port thread depth: 10mm engagement length
- Cycle life: ≥500,000 operations
- Leakage: ≤20 bubbles/min (ISO Standard 6950)
Manual override valve with tactile rocker switch design for precise pneumatic circuit control. Features zero-power operation, ergonomic actuation profile, and visible position indicator. Includes dust-resistant shuttle mechanism with stainless steel spring. Compatible with ISO VG32 hydraulic oil environments.
- Emergency stop override in automated production lines
- Manual mode switching for pneumatic testing benches
- Educational pneumatics training equipment
- Mobile machinery manual control stations
- Process control system maintenance bypass
Installation guidelines:
Ensure panel thickness between 1-5mm for secure mounting. Lubricate O-rings with silicone grease during assembly.
Avoid side-loading during rocker operation - maximum angular deflection ≤3° from vertical axis.
| Property | Property Value |
|---|---|
| sku | S3Y08G |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
