Airtac SCD Standard Cylinder SCD200X300

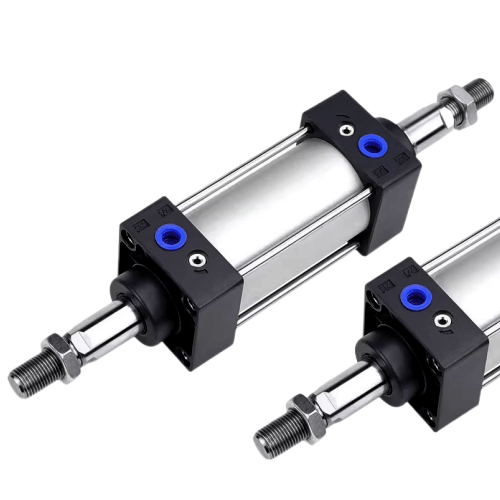

The AirTAC Airtac SCD Standard Cylinder SCD200X300 is a genuine double-acting DOUBLE-ROD air cylinder: the Ø40mm piston rod extends from BOTH end caps, giving equal effective area — and therefore equal force — in push and pull. Ø200mm bore, 300mm stroke, PT3/4 ports and adjustable end cushioning.
- BoreØ200 mm
- Rod (both ends)Ø40 mm
- Stroke300 mm
- Port sizePT3/4
- Rod configDouble rod (through)
- CushionAdjustable, 33 mm
About the Airtac SCD Standard Cylinder SCD200X300
The SCD200X300 is a large-bore double-rod pneumatic cylinder engineered for heavy-duty applications where identical force and speed are required in both directions. With a 200 mm bore and a 40 mm through-rod, it generates a substantial 15080 N of thrust in both push and pull strokes at 0.5 MPa, ensuring perfectly symmetrical motion for balanced tooling or dual-sided fixtures.
This 300 mm stroke model features a 33 mm adjustable air cushion on each end to decelerate high-inertia loads smoothly. The cylinder's retracted body length (A dimension) is 362 mm, providing a compact footprint for its force class. It operates on filtered air at 0.15-1.0 MPa and uses a PT 3/4 port, making it a robust choice for demanding industrial automation tasks.
Airtac SCD Standard Cylinder SCD200X300 Technical Specifications
| Model | Airtac SCD Standard Cylinder SCD200X300 |
|---|---|
| Series | SCD double-rod tie-rod cylinder (ISO 6430 class) |
| Bore size | Ø200 mm |
| Rod diameter | Ø40 mm (both ends) |
| Stroke | 300 mm |
| Rod configuration | Double rod — rod through both caps |
| Acting type | Double acting |
| Port size | PT3/4 |
| Rod thread | M36×2 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 500 mm/s |
| Cushion | Adjustable, 33 mm |
| Max stroke | Up to 1500 mm |
Specifications follow the official AirTAC SCD (double-rod) datasheet. Because the rod runs through both caps, the effective area is (bore² − rod²) in both directions. Confirm against the product label before installation. Thread options: PT (standard) / G.
Theoretical Output Force (Ø200mm, double rod)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 15080 N | 15080 N |
| 0.7 MPa | 21111 N | 21111 N |
| Max (@1.0 MPa) | 3075 kgf | |
Push and pull are EQUAL on a double-rod cylinder — both chambers lose the rod area, so effective area = (bore² − rod²) each way. Actual usable force is lower than theoretical due to friction and back-pressure; size with a safety margin.
Model Code: Airtac SCD Standard Cylinder SCD200X300
| SCD | Double-rod tie-rod cylinder series (rod out both ends). |
|---|---|
| 200 | Bore size in mm. |
| ×300 | Stroke length in mm. |
| -S | Optional built-in magnet for sensor position sensing. |
Related types: SC (single rod), SCJ (adjustable stroke), SCT (multi-position). SCD mounting: Basic, FA, LB, TC, TCM1. Seals: TPU standard / H = Viton / N = NBR. Thread: blank = PT, G = G thread.
Where the Airtac SCD Standard Cylinder SCD200X300 Is Used
Heavy Pallet Transfer
Uses the rear rod to drive a secondary stopper or kicker, synchronizing pallet handling on both sides of a heavy-duty conveyor line with 15080 N of force.
Dual-Sided Press Tooling
Provides equal clamping pressure from both ends of the cylinder, ideal for large assembly presses where a workpiece must be engaged symmetrically.
Synchronized Gate Actuation
The front rod opens a main chute gate while the rear rod simultaneously actuates a bypass diverter, ensuring coordinated material flow from a single pneumatic signal.
Is the Airtac SCD Standard Cylinder SCD200X300 the Right Cylinder?
Choose the SCD200X300 when your application demands equal bidirectional force in the 15000 N range at standard plant pressure. If you require less force, stepping down to the SCD160 bore reduces output to 9425 N at 0.5 MPa, saving energy and physical space. For applications needing only a single working direction, a single-rod SC200 cylinder would be a more cost-effective and lighter alternative.
For this 300 mm stroke, be mindful of side loads on the exposed rear rod. The through-rod design improves guidance over a single rod, but it is not a substitute for a guided cylinder under significant lateral force. To replace an existing unit, match the 200 mm bore, 300 mm stroke, PT 3/4 port thread, SCD-specific mounting accessory, and magnet option to ensure full compatibility with your current AirTAC setup.
Double-rod checklist
- ✓ Need equal force / speed both directions?
- ✓ Rear rod for tooling, stopper or sensor flag?
- ✓ Better rod guidance / anti-rotation?
- ✓ Port/thread type (PT/NPT/G)
- ✓ Magnet (-S) for sensors?
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 1.0 MPa operating pressure.
- check Keep BOTH rod ends clear of side load and interference.
- check Adjust end cushion screws for smooth stops.
- check Use SCD mounting accessory (FA / LB / TC / TCM1).
- check Installation by qualified personnel per AirTAC docs.
