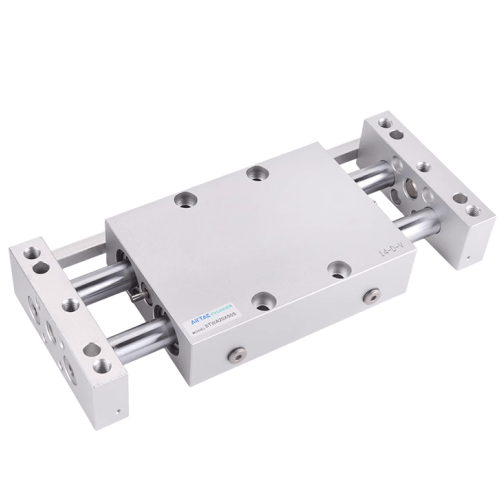

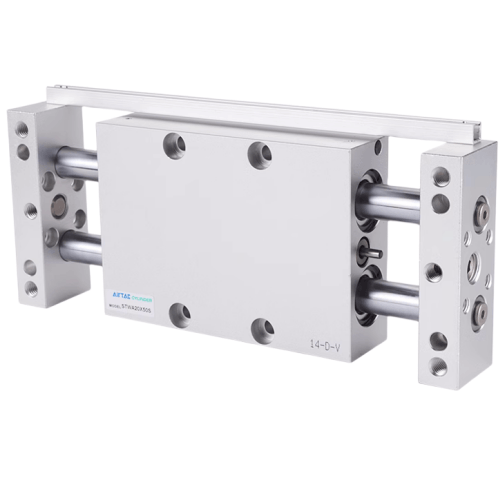

Airtac STWA Slide Table Cylinder STWA32X200S
2. Triple air ports (inlet/outlet) configuration provides flexible piping options;
3. Double piston rod structure ensures superior bending resistance and torsional rigidity, capable of withstanding heavy dynamic loads and lateral forces;
4. Integrated oil-cushioned shock absorbers effectively mitigate impact velocity, extending operational lifespan.
Category: Slide Table Cylinder | Brand: AirTAC | Series: STWA
AirTAC STWA Series Slide Table Cylinder STWA32X200S Specifications
- Model: STWA32X200S
- Type: Double-axis guided cylinder with slide table
- Bore size: 32mm
- Stroke: 200mm (adjustable)
- Operating pressure: 0.05–0.9 MPa
- Max thrust: 235N (at 0.5MPa)
- Piston speed: 50–700mm/s
- Buffer type: Adjustable rubber cushion
- Port size: M5x0.8 (G1/8 adapter optional)
- Mounting style: Horizontal base with 4x M5 threaded holes
- Rod end: M6x1 internal thread
- Material: Aluminum alloy body, hard chrome-plated piston rod
- Seal material: NBR + PU combination
- Temperature range: -10℃ to 80℃
- Weight: 1.85kg ±3%
- Dimensions: 200mm (stroke length) + 144mm (body length) × 82mm (max width) × 42mm (height)
Precision-guided linear actuator featuring dual hardened steel shafts and low-friction brass bushings. The integrated slide table provides stable load-bearing capacity up to 2.8kg lateral loads. Anti-rotation design ensures positional accuracy (±0.05mm repeatability) for pick-and-place operations. Pre-lubricated with Grease L2 for 10,000km service life.
- PCB component insertion machines
- Automated optical inspection (AOI) systems
- Laser marking/engraving positioning stages
- Semiconductor wafer handling
- Cartesian robot Z-axis actuators
Installation recommendation:
Maintain parallelism within 0.2mm/m between guide shafts during alignment.
Use C-shaped clamp brackets (sold separately) for vertical mounting.
Lubricate guide rods every 500 operating hours with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | STWA32X200S |
| Mounting Type | Fixed Plate Mounting Type |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | <32 mm> |
| Stroke | <200mm> |
