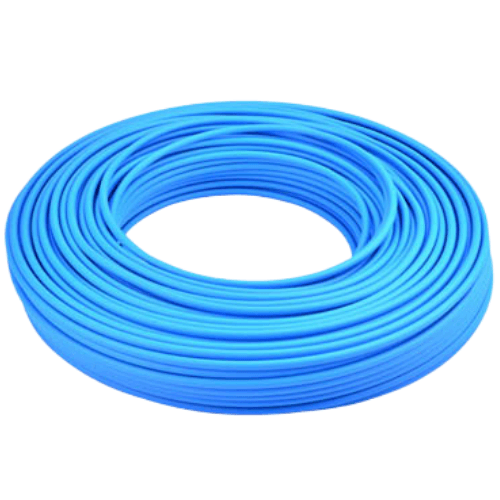

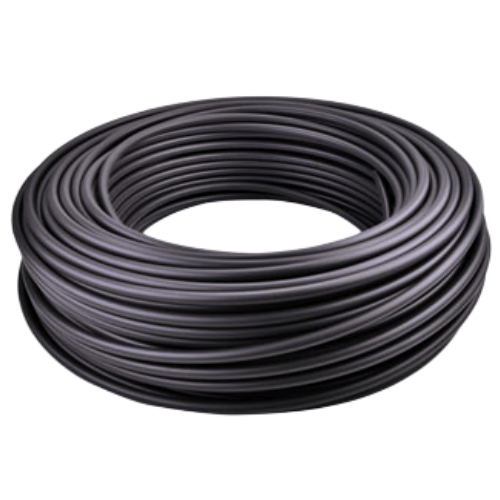

Airtac UN54D Flame-Retardant Tube UN54D060040100MBU
1. Single-layer construction with flame-retardant properties compliant with UL94 V-2 standards;
2. Superior elasticity with minimal bending radius for routing through confined spaces;
3. Enhanced water resistance and exceptional flexibility across operating temperatures;
4. Engineered for extreme abrasion resistance and high tensile strength performance.
Category: Auxiliary Components | Brand: AirTAC | Series: UN54D
AirTAC UN54D Flame-Retardant Tubing UN54D060040100MBU Technical Details
- Full model: UN54D060040100MBU
- Series: UN54D industrial flame-retardant polyurethane series
- Material: Special formula polyurethane (PU) with flame retardant additives
- Inner diameter: 4mm (±0.2mm)
- Outer diameter: 6mm (±0.3mm)
- Standard length: 10 meters/coil (custom lengths available)
- Weight: 0.15kg/m (total ~1.5kg per 10m coil)
- Operating temperature: -40℃ to +90℃ (instantaneous 120℃)
- Max working pressure: 1.0MPa (10bar) at 20℃
- Burst pressure: ≥4.0MPa
- Flame rating: UL 94 V-0 certified
- Color: Black with yellow tracer line (other colors optional)
- Certifications: RoHS, REACH, UL
- Coil dimensions: 300mm(W) × 300mm(D) × 150mm(H)
High-flexibility pneumatic tubing engineered for fire-risk environments. Features anti-static properties and maintains elasticity across extreme temperatures. The corrugated exterior enhances abrasion resistance while allowing tight bend radii (minimum 2×OD). Compatible with ISO 1456 quick connectors.
- Automated welding equipment pneumatic lines
- Lithium battery production facilities
- Foundry/pouring machine cooling systems
- CNC machine tool lubrication circuits
- High-temperature oven control systems
Installation guidelines:
Maintain 50mm clearance from heat sources above 100℃. Use spiral wrap
protectors when routing through metal brackets. Pressure drop ≤0.02MPa
at max flow rate (28L/min).
| Property | Property Value |
|---|---|
| sku | UN54D060040100MBU |
| Inner Diameter | 4.0mm |
| Wall Thickness | 1.00mm |
| Outer Diameter | <6.0mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature (℃): -20~70 |
| Bend Radius | 12mm |
| Length per Roll | Stroke 100mm |
| Burst Pressure @23°C | 4.0 |
