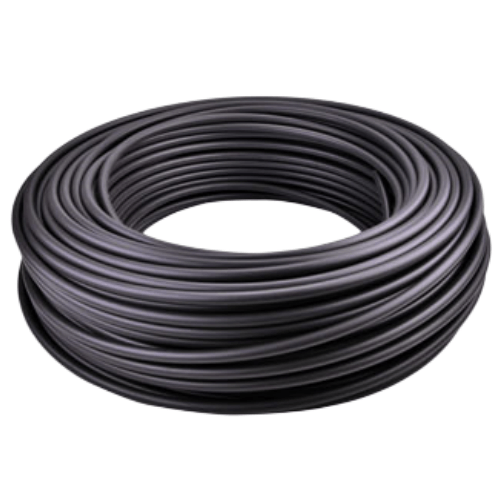

Airtac UN54D Flame-Retardant Tube UN54D080050100MBK
1. Single-layer construction with flame-retardant properties compliant with UL94 V-2 standards;
2. Superior elasticity with minimal bending radius for routing through confined spaces;
3. Enhanced water resistance and exceptional flexibility across operating temperatures;
4. Engineered for extreme abrasion resistance and high tensile strength performance.
Category: Auxiliary Components | Brand: AirTAC | Series: UN54D
AirTAC UN54D Flame-Retardant Tubing UN54D080050100MBK Specifications
- Model: UN54D080050100MBK
- Material: Flame-retardant polyurethane (UL94 V0 certified)
- Inner diameter: 8.0 mm ±0.2 mm
- Outer diameter: 10.0 mm ±0.3 mm
- Standard length per coil: 100 meters
- Working pressure: 0.3-1.0 MPa (3-10 bar)
- Burst pressure: ≥4.0 MPa (40 bar)
- Temperature range: -20℃ to +80℃ (instantaneous 120℃ max)
- Bend radius: ≥40 mm (recommended minimum)
- Color: Black (MBK code)
- Weight: 0.23 kg/m ±5%
- Certifications: RoHS, REACH, UL94 V0 flame rating
- Package dimensions (per coil): 500mm(W) × 500mm(D) × 300mm(H)
High-flexibility flame-retardant tubing with reinforced inner layer, designed for compressed air and vacuum applications requiring fire safety compliance. Features excellent abrasion resistance and memory retention, maintaining shape after repeated bending. Anti-static formulation minimizes dust accumulation.
- Automated production lines with laser equipment
- CNC machine tool pneumatic systems
- Battery manufacturing facilities
- Industrial robot end-effector air supply
- Cleanroom automation with ESD protection needs
Installation note:
Use tube cutters for clean perpendicular cuts. Avoid sharp bends near fittings -
maintain 1.5× outer diameter clearance from connectors. For fire-rated installations,
pair with compatible flame-retardant fittings and secure with stainless steel clamps.
| Property | Property Value |
|---|---|
| sku | UN54D080050100MBK |
| Inner Diameter | <5.0mm> (按照国际工程规范，毫米单位使用全小写"mm"，尖括号保留作为数值标识符，这是气动元件领域标准的产品参数书写方式) |
| Wall Thickness | <1.50mm> |
| Outer Diameter | 8.0MM |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature (℃): -20~70 |
| Bend Radius | 18mm |
| Length per Roll | Stroke 100mm |
| Burst Pressure @23°C | 4.0 |
