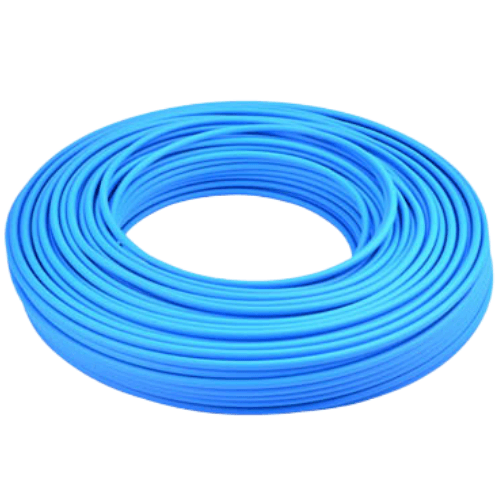

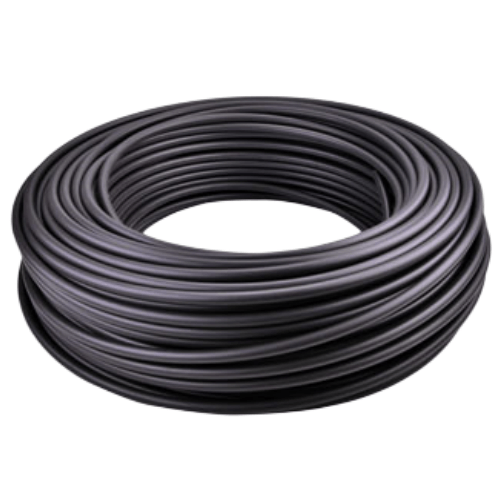

Airtac UN54D Flame-Retardant Tube UN54D080050100MBU
1. Single-layer construction with flame-retardant properties compliant with UL94 V-2 standards;
2. Superior elasticity with minimal bending radius for routing through confined spaces;
3. Enhanced water resistance and exceptional flexibility across operating temperatures;
4. Engineered for extreme abrasion resistance and high tensile strength performance.
Category: Auxiliary Components | Brand: AirTAC | Series: UN54D
AirTAC UN54D Flame-Retardant Tube UN54D080050100MBU Specifications
- Model: UN54D080050100MBU
- Type: Flame-retardant polyurethane (PU) pneumatic tubing
- Material: Special additive-enhanced PU with self-extinguishing properties
- Inner diameter: 8.0 mm ±0.2 mm
- Outer diameter: 10.0 mm ±0.3 mm
- Standard length per coil: 100 meters
- Working pressure: 0.8 MPa (max instantaneous pressure 1.2 MPa)
- Temperature range: -30℃ to +70℃ (short-term 100℃ for ≤1hr)
- Flame rating: UL94 V-0 compliant
- Weight: 1.25 kg/m ±5% (approx. 125kg per full coil)
- Dimensions (coil): 500mm (W) × 500mm (D) × 600mm (H)
- Color: Black with yellow spiral stripe (standard safety marking)
- Certification: RoHS, REACH, ISO3795 automotive flammability standard
Industrial-grade flame-retardant tubing featuring oil-resistant and anti-static properties. The corrugated exterior enhances flexibility while maintaining kink resistance. Special polymer formulation delays flame propagation and reduces toxic fume emission during combustion. Includes internal smooth bore design for minimal pressure drop.
- Robotic welding cell pneumatic systems
- Foundry equipment with high ambient temperatures
- Lithium battery production cleanrooms
- Plastic injection molding machine actuators
- CNC machine tool cooling systems
Installation note:
Use tube cutters for clean perpendicular cuts. Avoid contact with sharp edges -
recommended bend radius ≥4×OD. For high-vibration areas, install every 50cm
with AS-22H clamps (sold separately).
| Property | Property Value |
|---|---|
| sku | UN54D080050100MBU |
| Inner Diameter | <5.0mm> (按照国际工程规范，毫米单位使用全小写"mm"，尖括号保留作为数值标识符，这是气动元件领域标准的产品参数书写方式) |
| Wall Thickness | <1.50mm> |
| Outer Diameter | 8.0MM |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature (℃): -20~70 |
| Bend Radius | 18mm |
| Length per Roll | Stroke 100mm |
| Burst Pressure @23°C | 4.0 |
