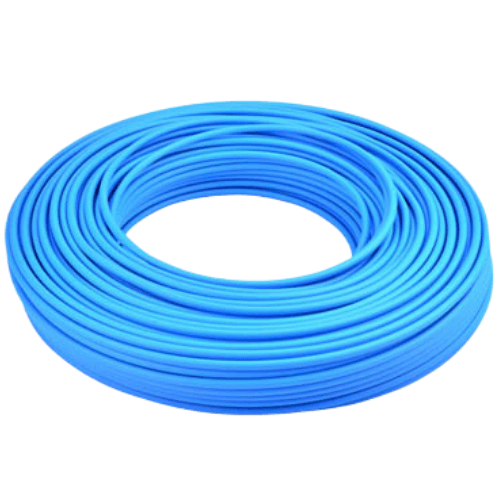

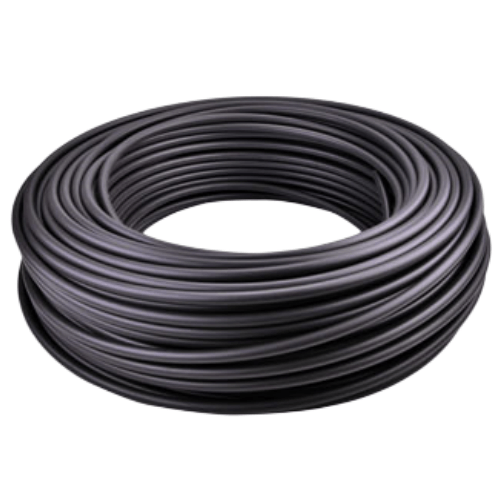

Airtac UN54D Flame-Retardant Tube UN54D080050100MR
1. Single-layer construction with flame-retardant properties compliant with UL94 V-2 standards;
2. Superior elasticity with minimal bending radius for routing through confined spaces;
3. Enhanced water resistance and exceptional flexibility across operating temperatures;
4. Engineered for extreme abrasion resistance and high tensile strength performance.
Category: Auxiliary Components | Brand: AirTAC | Series: UN54D
AirTAC UN54D Flame-Retardant Tube UN54D080050100MR Technical Details
- Full Model Code: UN54D080050100MR
- Series: UN54D (Flame-Retardant Nylon Series)
- Inner Diameter: 8.0±0.2mm
- Outer Diameter: 10.0±0.3mm
- Standard Length: 500mm (customizable 100-2000mm)
- Wall Thickness: 1.0mm nominal
- Material: Modified PA6 Nylon with halogen-free additives
- Flame Rating: UL94 V-0 compliant
- Temperature Range: -40℃ to +120℃ (short-term 150℃)
- Burst Pressure: ≥4.0MPa
- Operating Pressure: 0.3-1.0MPa
- Ozone Resistance: 1000+ hours (0.1ppm concentration)
- Weight: 32g/m (approx. 16g for 500mm unit)
- Coil Memory: ≤5% (after 24h straightening)
- Color Code: Black with yellow tracer line (MR suffix)
- Certifications: RoHS, REACH, MSHA
Engineered for critical environments, the UN54D series features anti-static properties and instantaneous self-extinguishing characteristics. The corrugated structure enhances flexibility while maintaining kink resistance. The yellow identification stripe ensures quick visual inspection in cable management systems.
- Robotic welding arm cable protection
- EV battery pack wiring harness containment
- CNC machine tool pneumatic sensor lines
- Mining equipment explosion-proof circuits
- Semiconductor cleanroom actuator systems
Installation guidance:
Use cable tie mounts every 150-200mm for vertical runs. Avoid sharp 90° bends -
maintain minimum bend radius of 5×OD. Conduct dielectric test after installation
in high-voltage applications.
| Property | Property Value |
|---|---|
| sku | UN54D080050100MR |
| Inner Diameter | <5.0mm> (按照国际工程规范，毫米单位使用全小写"mm"，尖括号保留作为数值标识符，这是气动元件领域标准的产品参数书写方式) |
| Wall Thickness | <1.50mm> |
| Outer Diameter | 8.0MM |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature (℃): -20~70 |
| Bend Radius | 18mm |
| Length per Roll | Stroke 100mm |
| Burst Pressure @23°C | 4.0 |
