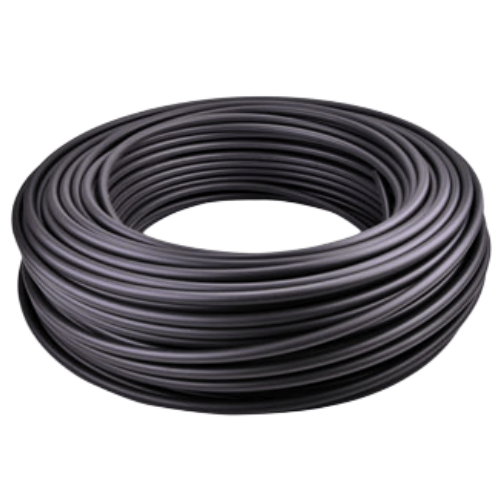

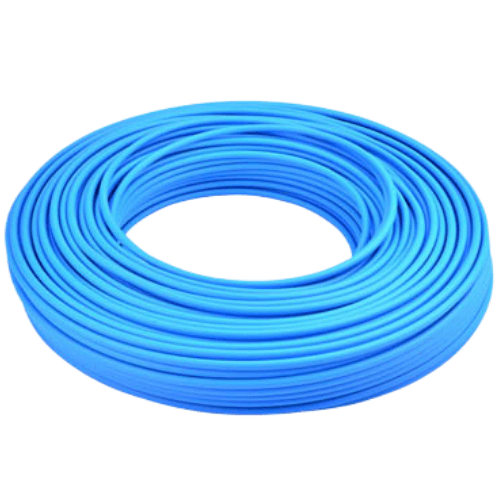

Airtac UN54D Flame-Retardant Tube UN54D100065100MBK
1. Single-layer construction with flame-retardant properties compliant with UL94 V-2 standards;
2. Superior elasticity with minimal bending radius for routing through confined spaces;
3. Enhanced water resistance and exceptional flexibility across operating temperatures;
4. Engineered for extreme abrasion resistance and high tensile strength performance.
Category: Auxiliary Components | Brand: AirTAC | Series: UN54D
AirTAC UN54D Flame-Retardant Tubing UN54D100065100MBK Technical Details
- Model: UN54D100065100MBK
- Type: Flame-retardant polyurethane (PU) pneumatic tubing
- Material: PU + flame retardant additive (UL94 V-0 compliant)
- Inner diameter: 10.0 mm ±0.3 mm
- Outer diameter: 16.0 mm ±0.4 mm
- Working pressure: 0.8 MPa (max burst pressure: 4.0 MPa)
- Temperature range: -40℃ to +80℃ (short-term 100℃ for ≤1hr)
- Flame resistance: Self-extinguishing within 3 seconds (ASTM D3801)
- Certifications: RoHS, REACH, UL 94 V-0
- Color: Black (MBK suffix indicates matte black)
- Standard coil length: 100 meters/roll
- Weight: 0.42 kg/meter (±5%)
- Coil dimensions: 650mm (W) × 650mm (D) × 100mm (H)
- Bend radius: ≥5×OD (80mm minimum)
- Oil resistance: SWA grade (resists ISO VG32 hydraulic oil)
Heavy-duty flame-retardant tubing with anti-static properties, featuring exceptional kink resistance and memory retention. The corrugated inner wall design reduces air turbulence while maintaining flexibility. Includes UV stabilization for limited outdoor use (max 6 months direct exposure).
- Robotic welding cell pneumatic lines
- Lithium battery production facilities
- Plastic injection molding machine air supply
- Automotive paint shop equipment
- High-temperature oven control systems
Installation guidelines:
Use tube cutters for clean perpendicular cuts. Avoid contact with sharp edges -
recommend protective sleeves when routing through cable carriers.
Maximum continuous bend angle: 90° at full pressure.
| Property | Property Value |
|---|---|
| sku | UN54D100065100MBK |
| Inner Diameter | <6.5mm> |
| Wall Thickness | 1.75mm |
| Outer Diameter | 10.0 mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature (℃): -20~70 |
| Bend Radius | <20mm> |
| Length per Roll | Stroke 100mm |
| Burst Pressure @23°C | 4.0 |
