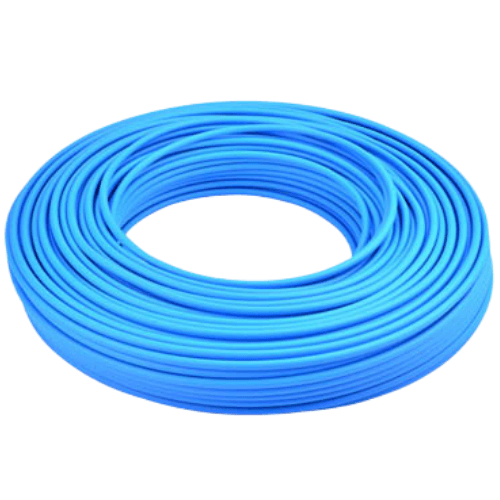

Airtac UN54D Flame-Retardant Tube UN54D100065100MGN
1. Single-layer construction with flame-retardant properties compliant with UL94 V-2 standards;
2. Superior elasticity with minimal bending radius for routing through confined spaces;
3. Enhanced water resistance and exceptional flexibility across operating temperatures;
4. Engineered for extreme abrasion resistance and high tensile strength performance.
Category: Auxiliary Components | Brand: AirTAC | Series: UN54D
AirTAC UN54D Flame-Retardant Tubing UN54D100065100MGN Technical Details
- Full Model Code: UN54D100065100MGN
- Material: Flame-retardant polyurethane (FR-PU) with anti-static additive
- Flame Rating: UL94 V-0 certified
- Temperature Range: -40℃ to +100℃ (peak 120℃ for ≤30 mins)
- Working Pressure: 0.5-1.2 MPa (5-12 bar)
- Inner Diameter: 10mm ±0.3mm
- Outer Diameter: 16mm ±0.5mm
- Wall Thickness: 3mm ±0.2mm
- Standard Length: 10 meters/coil (customizable up to 50m)
- Bend Radius: 60mm minimum (4×OD)
- Weight: 0.38kg/meter ±5%
- Certifications: RoHS, REACH, ISO14557 compliant

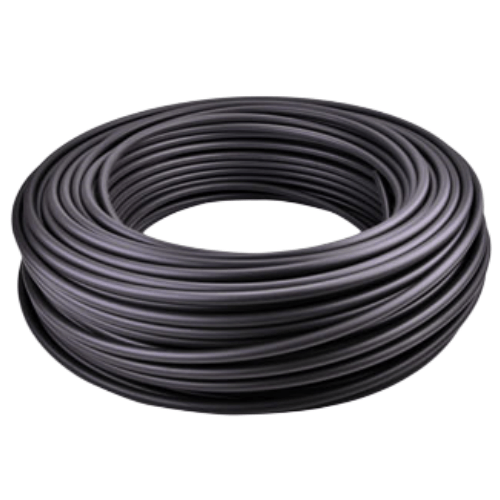

- Color: Black with yellow tracer line (UV-resistant)
- Packaging Dimensions: 400mm(W) × 400mm(D) × 300mm(H) per standard coil
High-flex flame-retardant pneumatic tubing engineered for hazardous environments. Features self-extinguishing properties within 5 seconds after flame removal and maintains flexibility at -40℃. The anti-kink design includes 4-layer reinforcement (inner conductive layer, PU matrix, aramid fiber braid, FR outer layer).
- Lithium battery production line pneumatic systems
- Foundry/painting robot end-effector tooling
- Plasma cutting machine air supply lines
- High-temperature oven actuator connections
- EV battery thermal management systems
Installation guidelines:
Use stainless steel spring guards in high-abrasion areas. Maintain 2.5×OD clearance from heat sources above 80℃.
For static-sensitive environments, ground both ends using embedded conductive layer.
1.0 MPa @ 23℃ → Derate by 15% per 20℃ increase
Max vacuum: -95kPa (750mmHg) without collapse
| Property | Property Value |
|---|---|
| sku | UN54D100065100MGN |
| Inner Diameter | <6.5mm> |
| Wall Thickness | 1.75mm |
| Outer Diameter | 10.0 mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature (℃): -20~70 |
| Bend Radius | <20mm> |
| Length per Roll | Stroke 100mm |
| Burst Pressure @23°C | 4.0 |
