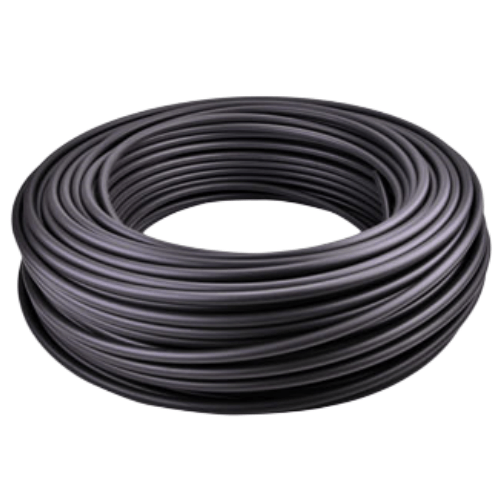

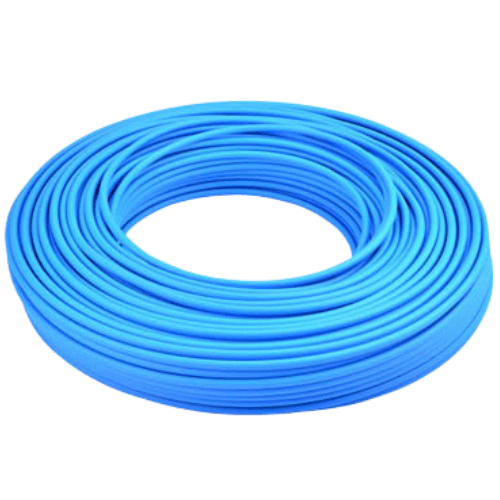

Airtac UN54D Flame-Retardant Tube UN54D100065100MR
1. Single-layer construction with flame-retardant properties compliant with UL94 V-2 standards;
2. Superior elasticity with minimal bending radius for routing through confined spaces;
3. Enhanced water resistance and exceptional flexibility across operating temperatures;
4. Engineered for extreme abrasion resistance and high tensile strength performance.
Category: Auxiliary Components | Brand: AirTAC | Series: UN54D
AirTAC UN54D Flame-Retardant Polyurethane Tubing UN54D100065100MR Specifications
- Full Model: UN54D100065100MR
- Material: Flame-retardant polyurethane (UL94 V-0 certified)
- Inner Diameter: 10mm ±0.2mm
- Outer Diameter: 16mm ±0.3mm
- Working Pressure: 0.2-1.0 MPa (29-145 PSI)
- Burst Pressure: ≥3.0 MPa
- Temperature Range: -40℃ to +120℃ (continuous use)
- Minimum Bend Radius: 60mm (dynamic)/40mm (static)
- Standard Length: 100 meters/roll (customizable)
- Color: Safety orange with blue tracer line
- Weight: 0.23kg/m ±5% → 23kg total/100m roll
- Packaging Dimensions: 300mm(D) × 300mm(W) × 200mm(H) per roll
- Certifications: RoHS, REACH, UL94 V-0 (vertical burn test)
- Abrasion Resistance: 5x better than standard PVC tubing
- Oil Resistance: SWELL ≤15% after 24h in IRM902 oil
Engineered with self-extinguishing additives, this halogen-free tubing maintains flexibility while resisting ignition sources up to 750℃ momentary exposure. The helical reinforcement provides kink resistance during complex routing. Features anti-static properties (surface resistance 10^6-10^9Ω) and a smooth inner bore for optimized airflow (Cv=1.8).
- Robotic welding cells with spark exposure
- Steel mill pneumatic systems near molten metal
- EV battery manufacturing fire zones
- Foundry equipment with thermal radiation
- CNC plasma cutting machine tool changers
Installation protocol:
Use P-clamps every 500mm with rubber cushions. Avoid contact with sharp edges -
route through protective sleeves when crossing metal brackets. Perform annual
pressure decay tests (max 0.02 MPa drop in 5 minutes at 0.6 MPa).
Chemical compatibility:
Not recommended for continuous exposure to ketones or concentrated acids.
Always conduct material compatibility tests when used with specialty gases.
| Property | Property Value |
|---|---|
| sku | UN54D100065100MR |
| Inner Diameter | <6.5mm> |
| Wall Thickness | 1.75mm |
| Outer Diameter | 10.0 mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature (℃): -20~70 |
| Bend Radius | <20mm> |
| Length per Roll | Stroke 100mm |
| Burst Pressure @23°C | 4.0 |
