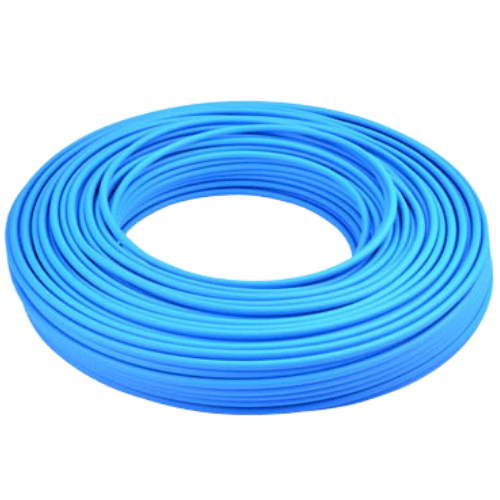

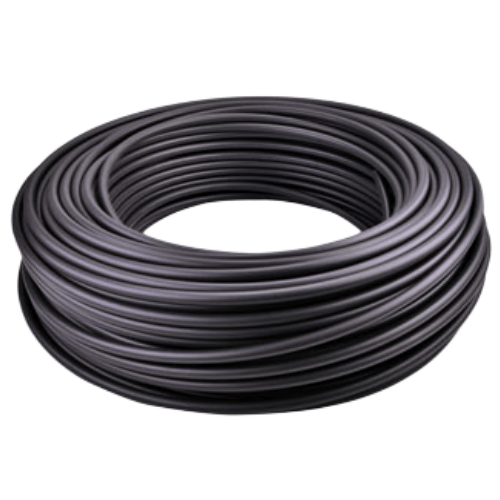

Airtac UN54D Flame-Retardant Tube UN54D100065100MWH
1. Single-layer construction with flame-retardant properties compliant with UL94 V-2 standards;
2. Superior elasticity with minimal bending radius for routing through confined spaces;
3. Enhanced water resistance and exceptional flexibility across operating temperatures;
4. Engineered for extreme abrasion resistance and high tensile strength performance.
Category: Auxiliary Components | Brand: AirTAC | Series: UN54D
AirTAC UN54D Flame-Retardant Tubing UN54D100065100MWH Specifications
- Full Model: UN54D100065100MWH
- Series: UN54D (Flame-Retardant PU Series)
- Material: Polyurethane with halogen-free flame retardant additives
- Inner Diameter: 50mm (±0.5mm tolerance)
- Outer Diameter: 65mm (±0.7mm tolerance)
- Standard Length: 1000mm (customizable up to 5000mm)
- Wall Thickness: 7.5mm (reinforced spiral structure)
- Weight: 1.85kg/m (±5%)
- Temperature Range: -40℃ to +120℃ (short-term 150℃)
- Operating Pressure: 0.3-1.2MPa (4-175 PSI)
- Flame Rating: UL94 V-0 compliant
- Color: Mineral White (MWH code)
- Certifications: RoHS, REACH, ISO6722-1
- Bend Radius: 130mm (minimum dynamic bending)
- Dimensions (coiled): 650mm diameter × 150mm width
Heavy-duty flame-retardant tubing with embedded anti-static spiral reinforcement, engineered for critical environments requiring fire safety and mechanical durability. Features low smoke emission (LSE) and self-extinguishing properties during combustion. The corrugated design enhances flexibility while maintaining crush resistance up to 2,500N/100mm.
- Robotic arm pneumatic lines in automotive welding systems
- CNC machine tool coolant-resistant cable protection
- Lithium battery production equipment (fire-prone environments)
- Underground mining pneumatic networks
- Elevator hydraulic system protection
Installation Guidelines:
Use rotary cutter for clean ends. Maintain 20% length slack for thermal expansion.
Secure with AS5400 series stainless steel clamps (torque 4-5Nm). Avoid simultaneous
exposure to UV and hydraulic oils. Pressure test at 1.5× operating PSI for 30 mins.
| Property | Property Value |
|---|---|
| sku | UN54D100065100MWH |
| Inner Diameter | <6.5mm> |
| Wall Thickness | 1.75mm |
| Outer Diameter | 10.0 mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature (℃): -20~70 |
| Bend Radius | <20mm> |
| Length per Roll | Stroke 100mm |
| Burst Pressure @23°C | 4.0 |
