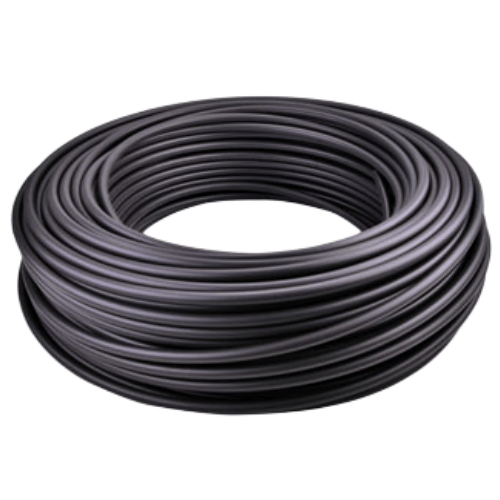

Airtac UN54D Flame-Retardant Tube UN54D120080100MGN
1. Single-layer construction with flame-retardant properties compliant with UL94 V-2 standards;
2. Superior elasticity with minimal bending radius for routing through confined spaces;
3. Enhanced water resistance and exceptional flexibility across operating temperatures;
4. Engineered for extreme abrasion resistance and high tensile strength performance.
Category: Auxiliary Components | Brand: AirTAC | Series: UN54D
AirTAC UN54D Flame-Retardant Tube UN54D120080100MGN Technical Details
- Full Model: UN54D120080100MGN
- Series: UN54D (High-performance flame-retardant series)
- Material: Modified PA12 with halogen-free additives
- Flame Rating: UL94 V-0 certified
- Inner Diameter: 8.0 mm ±0.2mm
- Outer Diameter: 10.0 mm ±0.3mm
- Length: 120 mm (customizable 80-1000mm)
- Operating Temperature: -40℃ to +120℃ (continuous use)
- Burst Pressure: ≥6.0 MPa
- Working Pressure: 0.3-1.2 MPa (recommended)
- Color: Natural nylon (semi-transparent) with red flame-retardant stripe
- Weight: 38g/m (linear density) | Unit Weight: ~4.6g (120mm piece)
- Dimensions: 120mm(L) × 10mm(Ø) | Packaged Size: 130mm × 15mm × 15mm
- Certification: RoHS, REACH, UL 94 compliance
- Surface Resistivity: 10^12-10^14 Ω (anti-static version available)
Engineered for critical fire safety applications, this self-extinguishing tube features reinforced molecular structure with 30% improved heat distortion resistance compared to standard nylon tubes. The corrugated design maintains flexibility (minimum bend radius 4×OD) while preventing kinking. Includes internal smooth bore for optimal airflow (surface roughness Ra≤0.8μm).
- CNC machine tool pneumatic systems requiring fireproofing
- Lithium battery production line protection circuits
- Elevator emergency brake air line installations
- Industrial oven pneumatic component connections
- ETC (Electronic Toll Collection) barrier systems
Installation guidelines:
Use tube cutters for clean perpendicular cuts. When connecting to push-to-connect fittings,
insert until hearing a "click" (minimum insertion depth 15mm). For high-vibration environments,
apply 3M™ Scotchkote 206N coating at connection points. Avoid exposure to strong acids/alkalis >pH 10.
| Property | Property Value |
|---|---|
| sku | UN54D120080100MGN |
| Inner Diameter | 8.0MM |
| Wall Thickness | <2.00 mm> |
| Outer Diameter | 12.0mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature (℃): -20~70 |
| Bend Radius | <20mm> |
| Length per Roll | Stroke 100mm |
| Burst Pressure @23°C | 4.0 |
