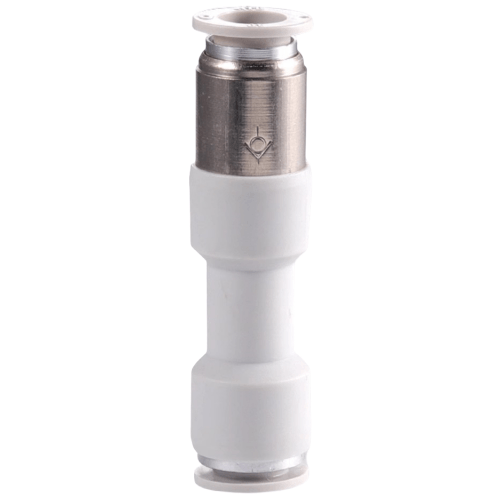

Airtac X-APCVU Adapter - Tube End Type Check Valve X-APCVU10
AirTAC X-APCVU10 Tube-End Check Valve Specifications
- Model: X-APCVU10
- Type: Threaded check valve (inline, uni-directional flow)
- Body material: Brass (nickel-plated) / Stainless steel option
- Seal material: NBR (Nitrile) / FKM (Fluorocarbon) optional
- Operating pressure: 0.1–1.0 MPa
- Temperature range: -20℃ to 80℃ (NBR) / -10℃ to 150℃ (FKM)
- Cracking pressure: 0.015 MPa
- Flow capacity: CV 0.35 (Kv 0.3)
- Max flow rate: 450 L/min (ANR)
- Port connections: Rc1/8 (PT1/8) female threads
- Tube compatibility: Ø10mm (3/8") OD pneumatic tubing
- Weight: 205g ±5g
- Dimensions: 80mm(L) × 16mm(Ø body) × 22mm(Hex width)
- Vibration resistance: ≤10Hz @ 1.5mm amplitude
- Leakage rate: <5 bubbles/min (ISO 6952 test)
Industrial-grade pneumatic check valve featuring precision-machined poppet mechanism with spring-assisted closure. Designed for permanent installation at tubing terminals to prevent reverse flow in compressed air systems. Chrome-plated brass construction resists corrosion in humid environments. Includes integrated O-ring groove for leak-proof tubing connection.
- Pneumatic cylinder exhaust line protection
- Vacuum system backflow prevention
- Air compressor output stabilization
- Medical gas line safety systems
- Robotic actuator pressure maintenance
- Pneumatic tool air supply circuits
Installation guidelines:
Install with flow arrow aligned to system direction. Maximum 2Nm tightening torque.
Use 10mm insertion depth for tubing. Avoid mounting near heat sources (>80℃ ambient).
